8031i05.05

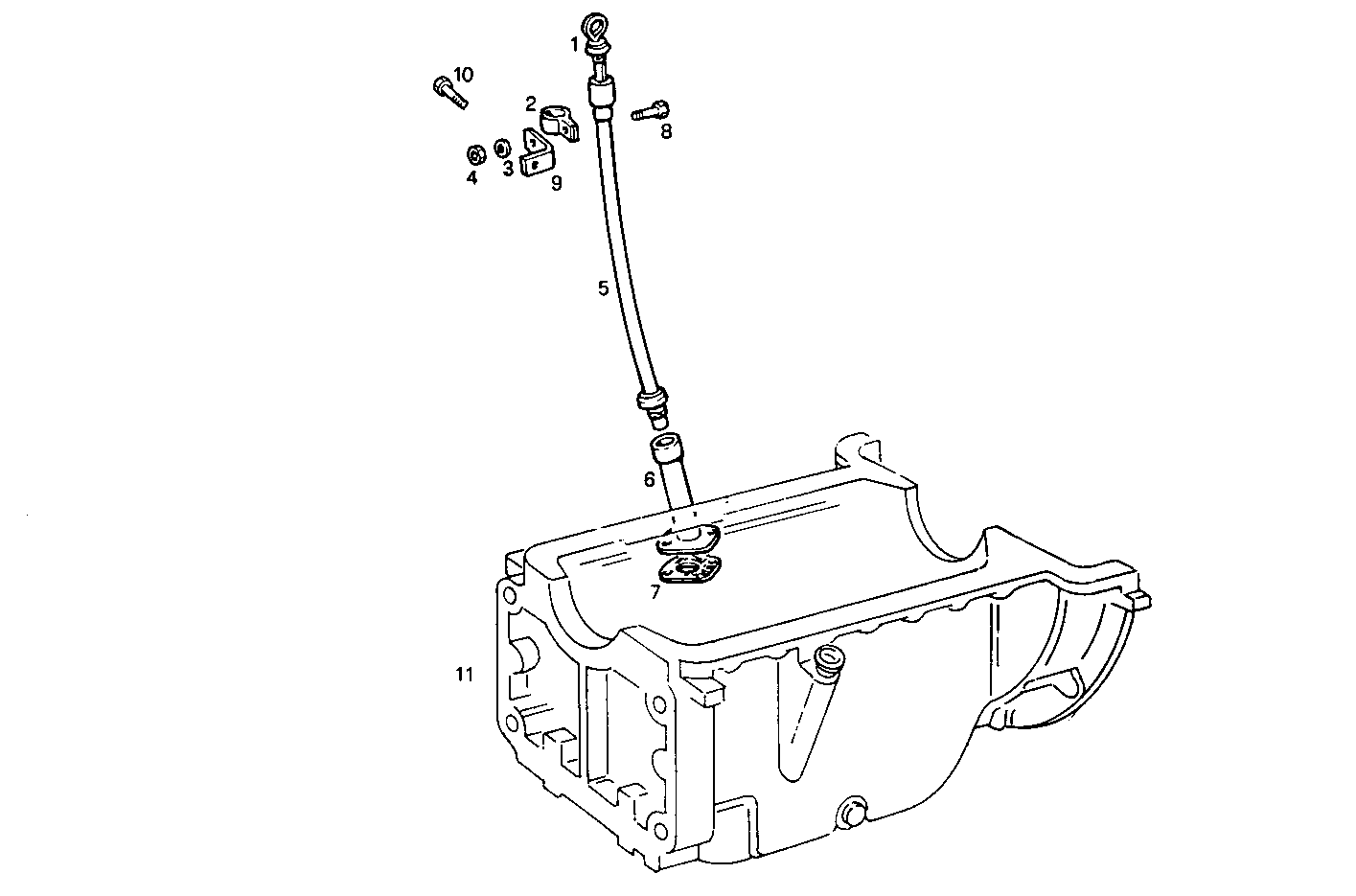

A41020007 LONG OIL DIPSTICK RIGHT SIDE
| Item | Part number | Description |
|---|---|---|
| 1 | 8109173 | OIL DIPSTICK |
| 2 | 8100228 | CLIP |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 8109409 | ROD GUIDE |
| 6 | 8105565 | ROD GUIDE |
| 7 | 98401047 | GASKET |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 8108086 | RETAINER |
| 10 | 11307021 | HEXAGON BOLT M10X40 MM |
| 11 | 8105564 | OIL SUMP |
