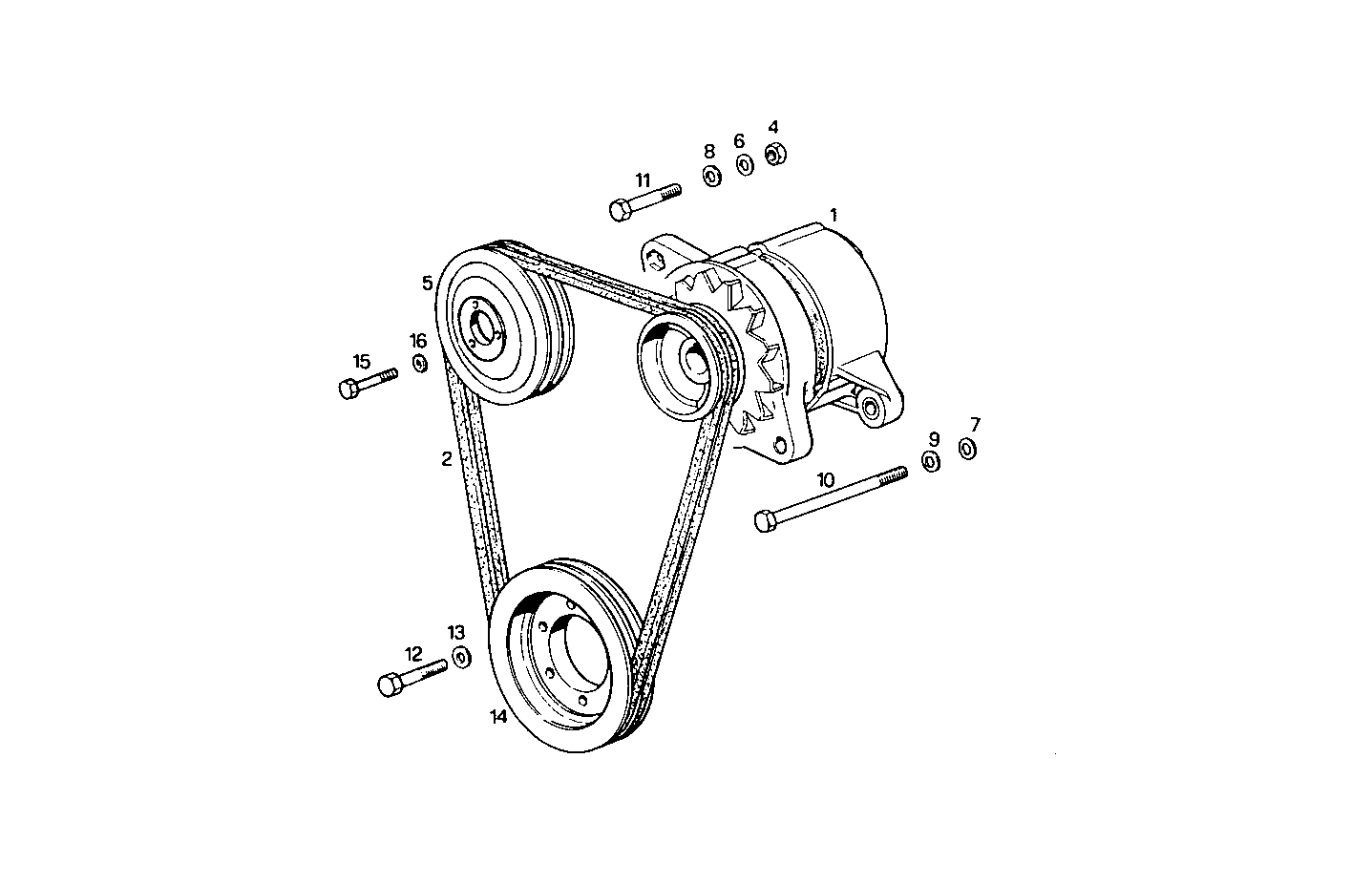

| Item |
Part number |
Description |
|
1 |
8019416 |
ALTERNATOR ASSY |
|
2 |
98473886 |
SET OF V-BELTS L=1150 MM |
|
4 |
17038221 |
HEXAGON NUT M10 |
|
5 |
4619286 |
WATER PUMP PULLEY |
|
6 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
7 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
8 |
17095104 |
WASHER Ø10X21X2 MM |
|
9 |
17095304 |
WASHER Ø12X24 MM |
|
10 |
15541921 |
HEXAGON BOLT M12X1,25X130 MM |
|
11 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
12 |
11288021 |
HEXAGON BOLT M10X1,25X60 MM |
|
13 |
11190574 |
WASHER Ø10X20X2,3 MM |
|
14 |
4668646 |
PULLEY REAR |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
11193874 |
WASHER Ø8X16 MM |
