8045E00.59A008

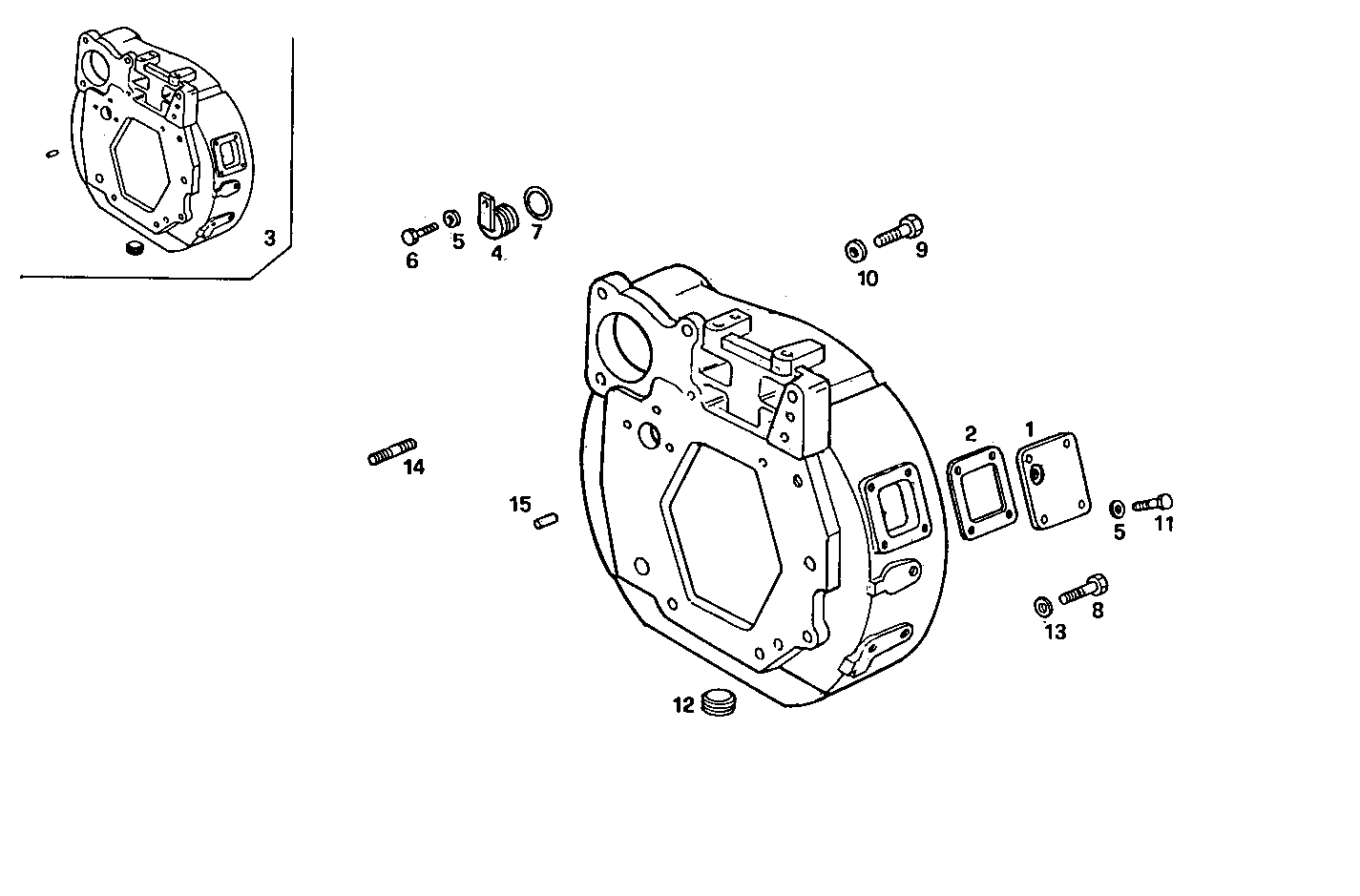

0430.201/02 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 500330791 | COVER |
| 2 | 98417986 | FLAT ENGINE GASKET |
| 3 | 4806862 | FLYWHEEL HOUSING ASSY |
| 4 | 4718740 | PLUG |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
| 8 | 11306921 | SCREW M10X1,25X30 |
| 9 | 16612324 | HEXAGON BOLT M14X35 MM |
| 10 | 11200171 | SPRING WASHER Ø15 MM |
| 11 | 16043521 | SCREW M8X22 |
| 12 | 16998011 | PLUG M35X1,5 |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 16735724 | STUD M14X20X55 [from ...] |
| 15 | 17275510 | DOWEL PIN Ø10 MM |
