8060SRC23.10

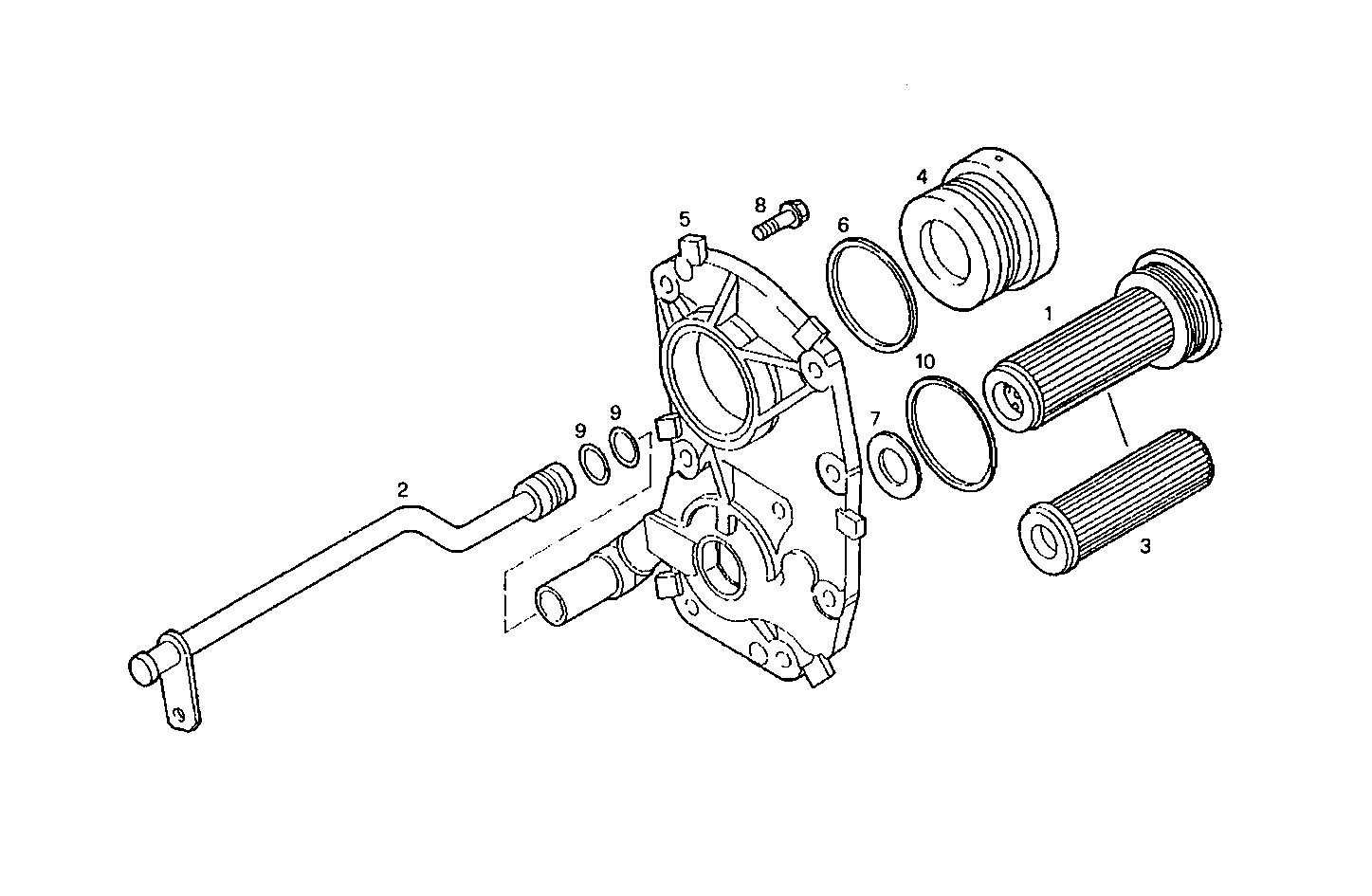

A27560001/07 TRANSMISSION GROUP - 2870.9 - left hand drive

Iveco/FPT TRANSMISSION GROUP - 2870.9

Item Part number Description
1 8859101 FILTER ASSY
2 8859203 HYDRAULIC LINE
3 8859302 G.BOX OILFILT.ELEM
4 8859318 DISTRIBUTOR
5 8859397 OIL PUMP-GEAR BOX ASSY
6 8860709 WASHER
7 10296860 SEAL GASKET Ø50X57 MM SP=1 MM
8 16587224 HEXAGON BOLT M10X30 MM
9 17281681 O-RING Ø13,9 MM SP=2,6 MM
10 17281981 O-RING Ø18,7 MM SP=2,6 MM
