8061Si07.05

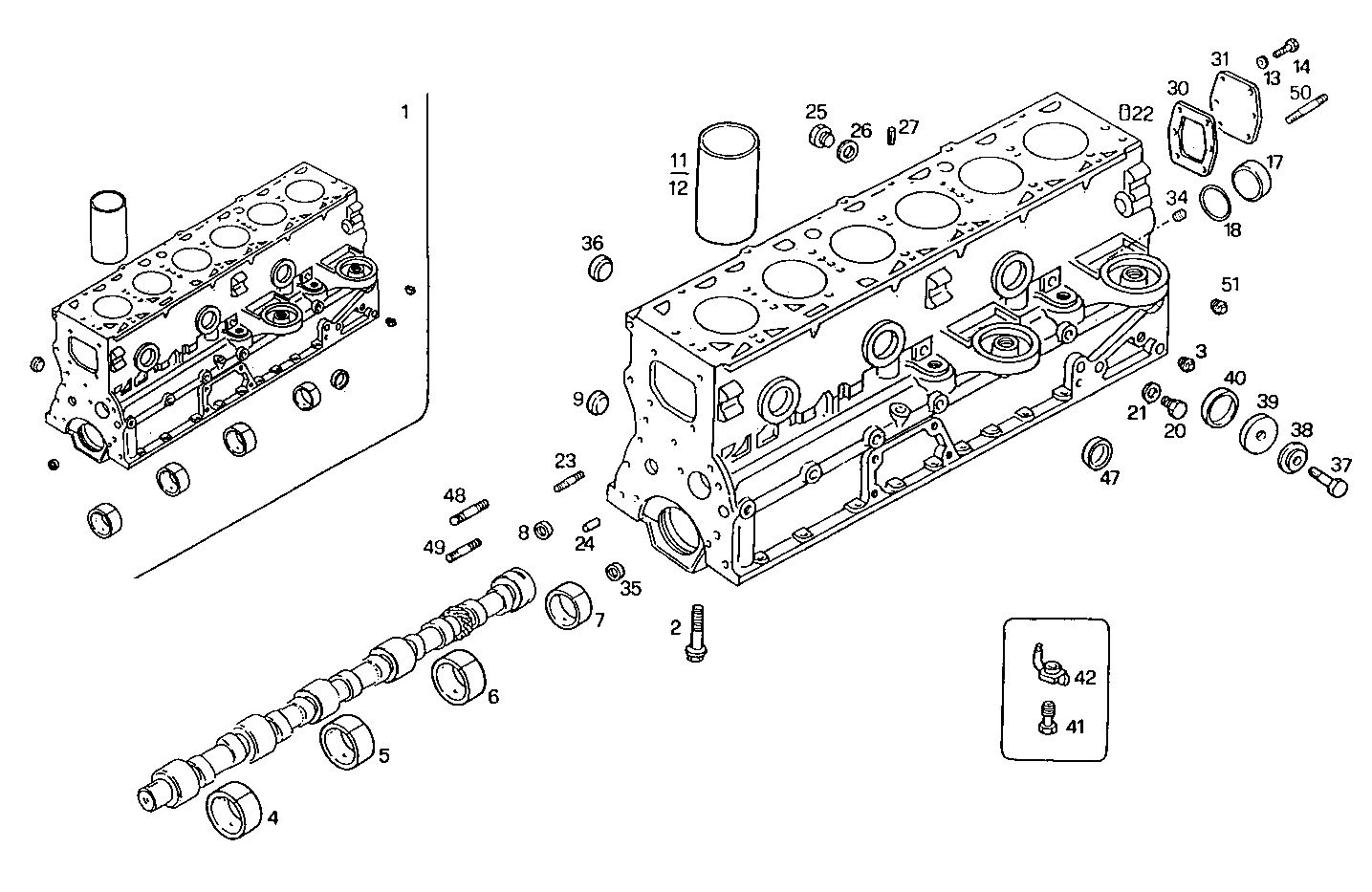

0400.101 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 98444130 CRANKCASE ASSY
2 4792169 SCREW
3 99434231 THREADED PLUG M10X1,25
4 4603448 CAMSHAFT BEARING FRONT
5 4603449 CAMSHAFT BEARING MOGUL
6 4603450 CAMSHAFT BEARING CLEVITE
7 4603451 CAMSHAFT BEARING MOGUL
8 14328201 LOCK PLUG M10
9 16991170 LOCK PLUG Ø36 MM
11 4770623 CYLINDER LINER
12 4770624 CYLINDERLINER +0.2
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16043324 HEXAGON BOLT M8X18 MM
17 98412737 LOCK PLUG [from ...]
18 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
20 16992211 THREADED PLUG M12X1,5
21 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
22 4846850 DOWEL PIN
23 13517821 STUD M8X12X60
24 10839610 DOWEL PIN Ø8 MM
25 4665029 LOCK PLUG M42X1,5
26 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
27 14165470 DOWEL PIN Ø5,4 MM
30 99445564 FLAT ENGINE GASKET SP=1,5 MM
31 4653282 REAR C.CASE COVER
34 4782452 DOWEL PIN
35 14328501 LOCK PLUG Ø16 MM
36 14327401 PLUG Ø13 MM
37 16605924 SCREW M8X40 MM
38 4716734 WASHER
39 4811892 COVER
40 4600893 GASKET
41 98475228 SCREW CONNECTOR [from 674995]
42 98475474 OIL NOZZLE [from 674995]
47 14329901 LOCK PLUG Ø40 MM
48 4853521 STUD M12x1,75 <--> M10x1,25
49 98413488 STUD M10X1,25
50 16735724 STUD M14X20X55 [from ...]
51 99434232 THREADED PLUG M14X1,5
