8061SRi26.06

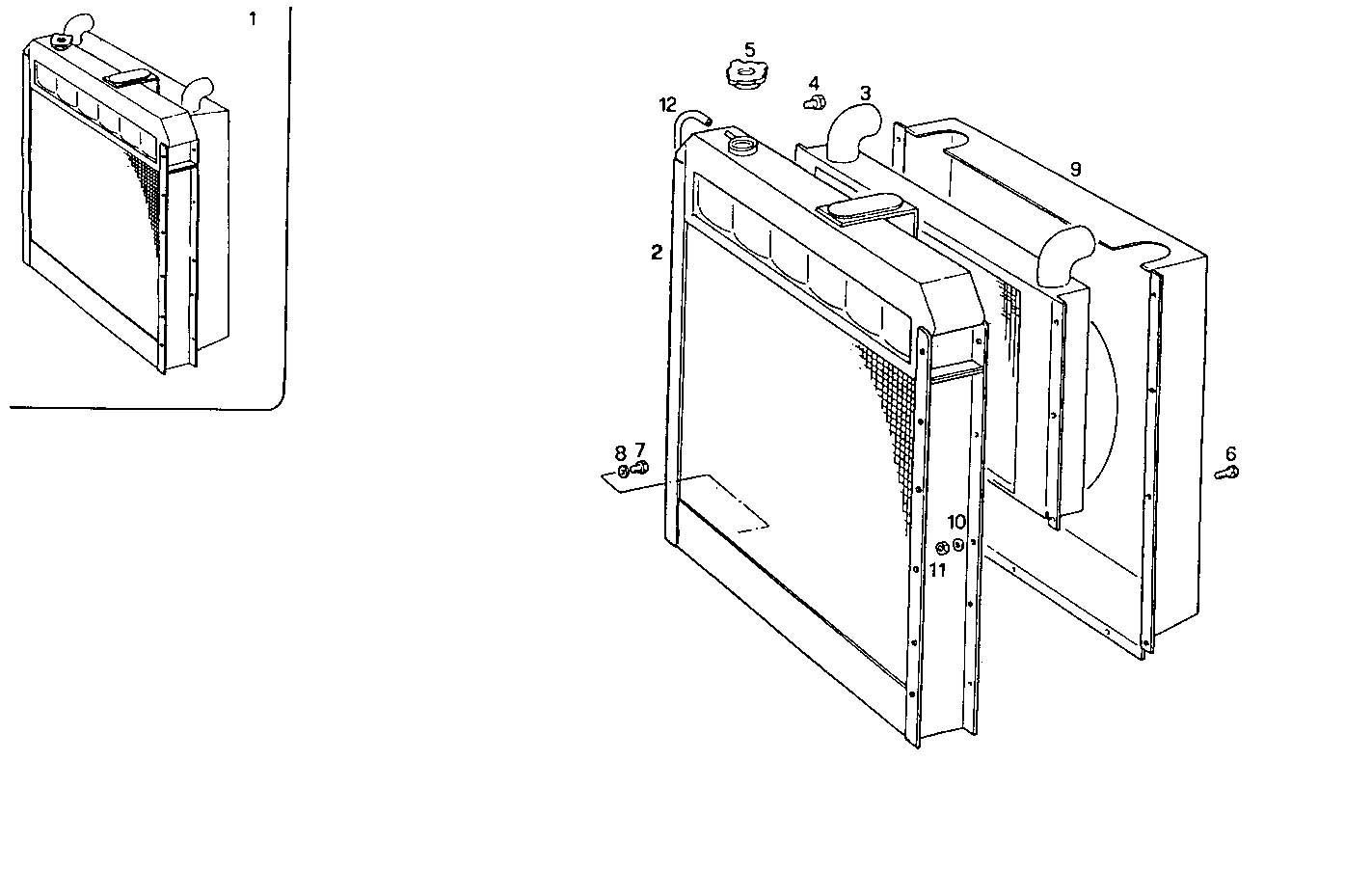

3300.029/01 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8025739 | WATER RADIATOR ASSY |
| 2 | 8025741 | WATER RADIATOR |
| 3 | 8018659 | INTERCOOLER [from 05-94] |
| 4 | 8105096 | PLUG |
| 5 | 8107632 | RADIATOR PLUG |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 16992340 | THREADED PLUG M14X1,5 |
| 8 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 9 | 8018658 | AIR HOOD |
| 10 | 17094914 | WASHER 8x16 |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 17723181 | WATER HOSE |
