8061SRM24.10

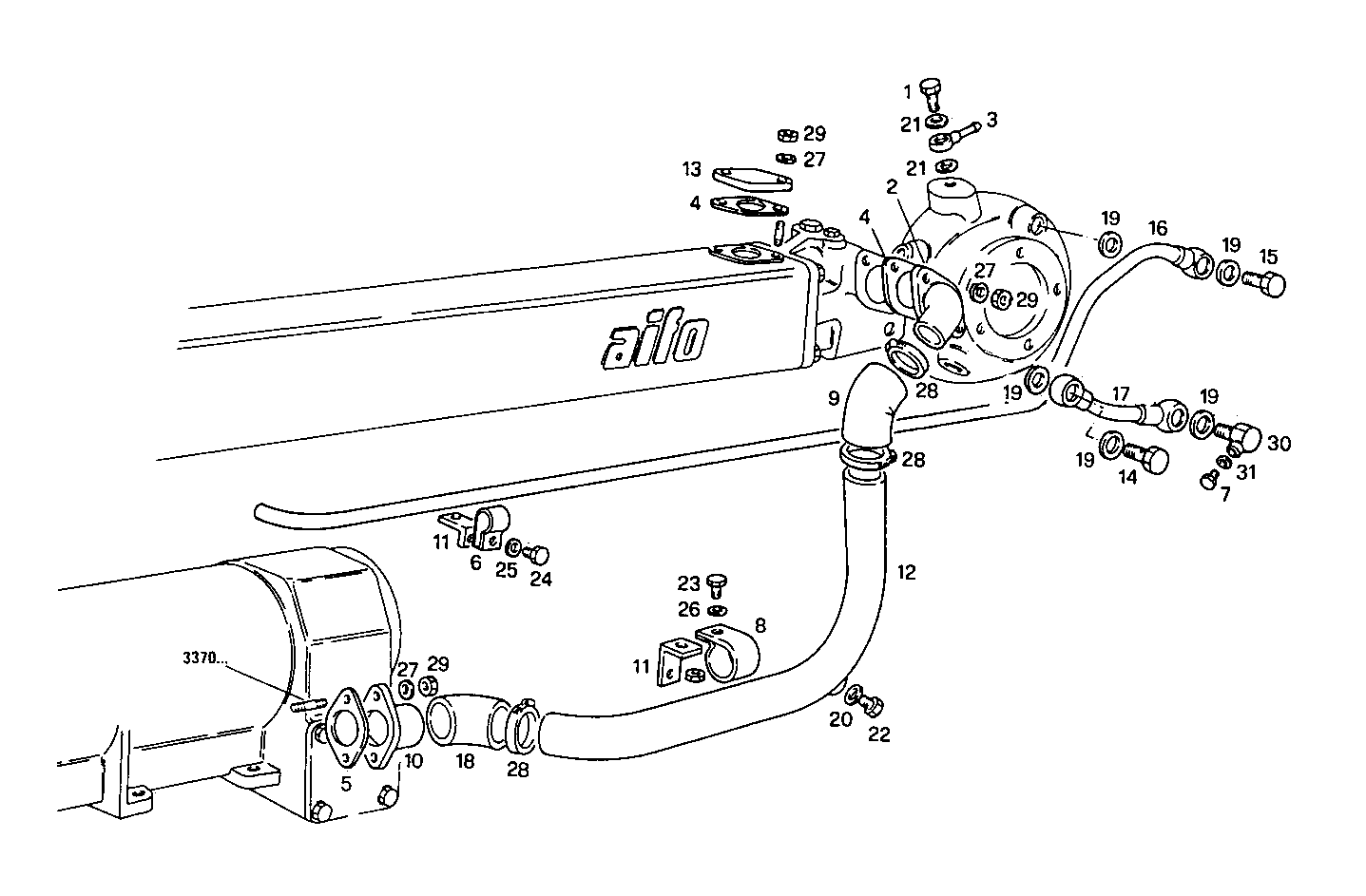

3210.016/03 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4927823 SCREW CONNECTOR
2 4919235 WATER PIPE
3 4636689 SWIVEL COUPLING
4 4918835 GASKET
5 4599562 FLAT ENGINE GASKET
6 10450390 PIPE CLIP Ø20X26 MM SP=1,5 MM
7 10300640 LOCK PLUG M14X1,5
8 4936741 CLIP
9 4604779 WATER HOSE
10 8100081 WATER PIPE
11 8102227 RETAINER
12 8108306 WATER PIPE
13 8100154 COVER
14 8108997 SCREW CONNECTOR
16 8108998 WATER PIPE
17 8108994 WATER PIPE
18 10136187 RUBBER SLEEVE
19 10263460 WASHER Ø22X28X1,5 MM
20 10284460 SEAL GASKET Ø10X16 MM
21 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
22 11903040 LOCK PLUG M10X1
23 10902121 HEXAGON BOLT M6X14 MM
24 10979421 HEXAGON BOLT M6X10 MM
25 11197779 SPRING WASHER Ø6X12 MM
26 17088474 WASHER Ø6X12 MM
27 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
28 12177090 CLIP Ø32-52 MM
29 17037931 HEXAGON NUT M8X1,25
30 4928361 SCREW CONNECTOR
31 10282460 SEAL GASKET Ø14X20 MM
