8065SRE10.00

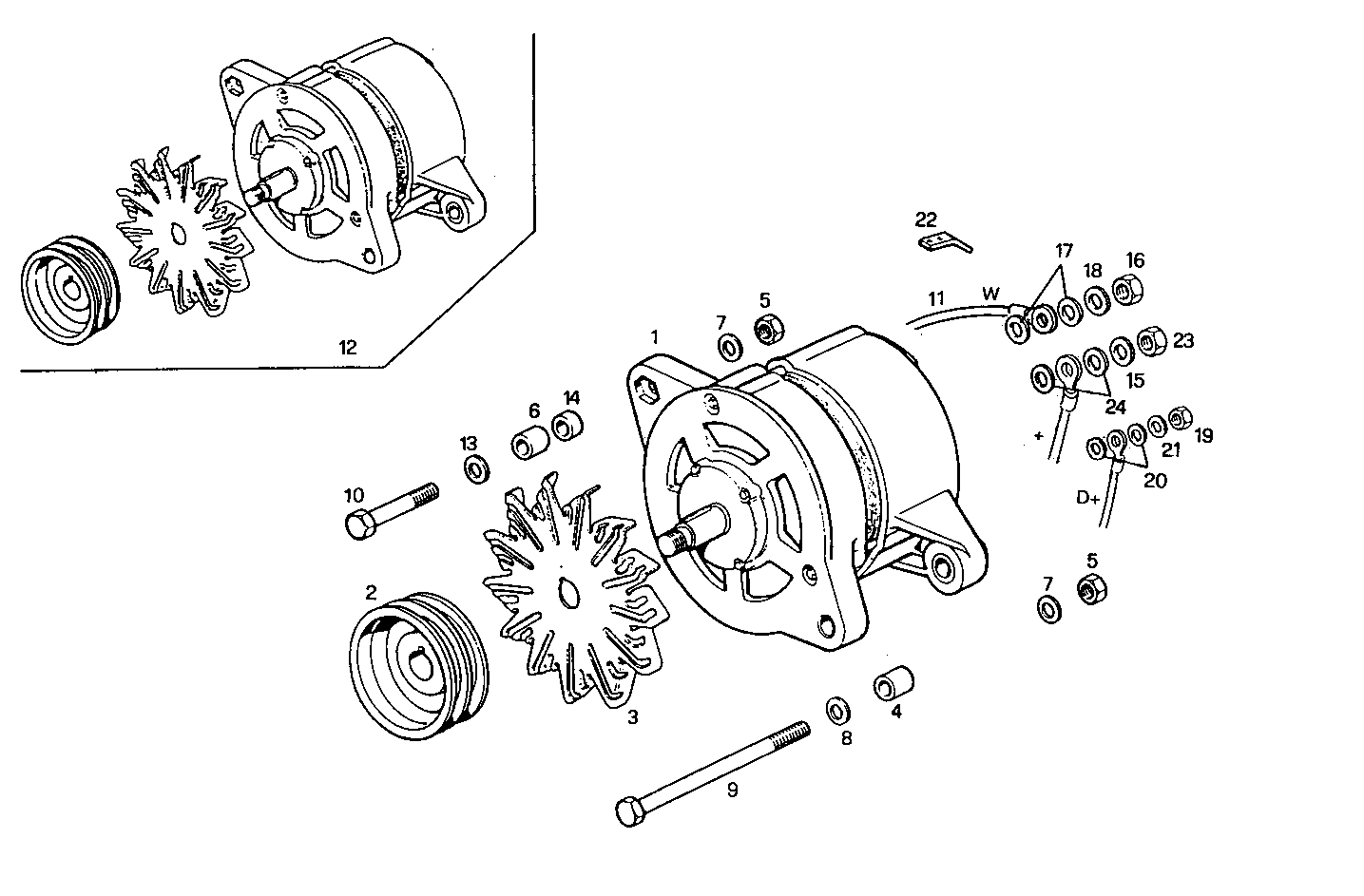

A14010018 SELF-REGULATED ALTERNATOR - 24V 80A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 98424453 | ALTERNATOR ASSY BOSCH |
| 2 | 8027451 | PULLEY |
| 3 | 4717026 | GENERATOR FAN MARELLI |
| 4 | 8105569 | SPACING BAR [up to ...] |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 8101556 | SPACING BAR SP=13,00 MM |
| 7 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 15972621 | HEXAGON BOLT M10X1,25X140 MM |
| 10 | 15888821 | HEXAGON BOLT M10X1,25X70 MM |
| 11 | 8019531 | WIRE/CABLE W |
| 12 | 8027455 | ALTERNATOR ASSY |
| 13 | 4543031 | WASHER |
| 14 | 8101581 | SPACING BAR |
| 15 | 17494834 | WASHER Ø8 MM |
| 16 | 17037721 | NUT M5X0,8 |
| 17 | 17094504 | WASHER Ø5,3X10 MM |
| 18 | 10615379 | TOOTHED WASHER Ø5,3 MM |
| 19 | 17037621 | HEXAGON NUT M4 |
| 20 | 17094204 | WASHER Ø4X8X0,8 MM |
| 21 | 10615279 | WASHER Ø4 MM |
| 22 | 12277944 | CONNECTION D+ |
| 23 | 17037931 | HEXAGON NUT M8X1,25 |
| 24 | 17094914 | WASHER 8x16 |
