8140SRC20.30

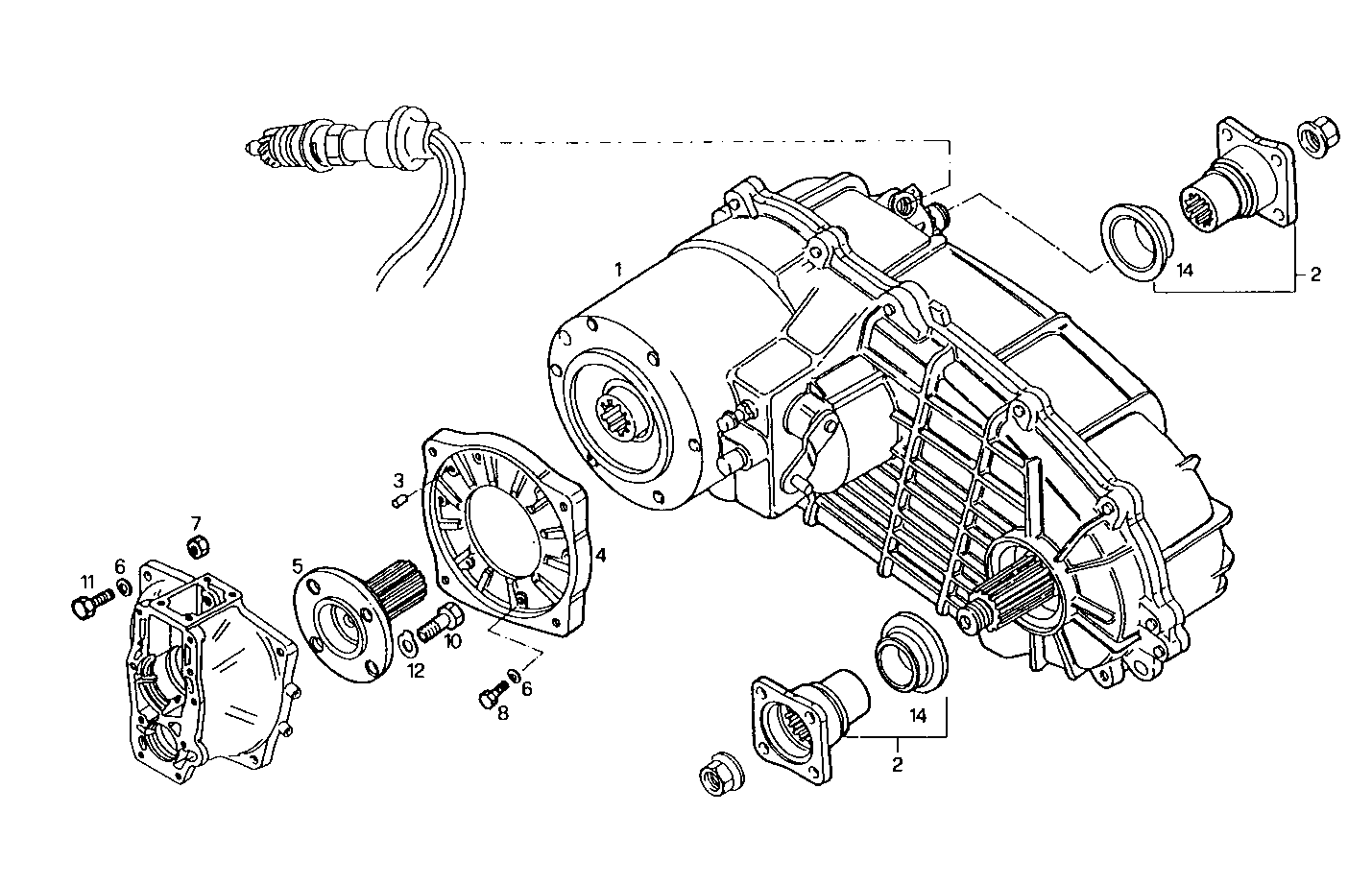

A27510007/06 TRANSMISSION GROUP - Left hand drive 2826.5
| Item | Part number | Description |
|---|---|---|
| 1 | 8851320 | POWER DIVIDER UNIT ASSY |
| 2 | 8850467 | SHIFT SLEEVE ASSY |
| 3 | 8577410 | DOWEL PIN |
| 4 | 8583600 | REAR G.BOX COVER |
| 5 | 8850403 | SPLIT SHAFT |
| 6 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 7 | 16979731 | NUT M10X1,25 |
| 8 | 11106621 | HEXAGON BOLT M10X1,5X35 MM |
| 10 | 11540421 | SCREW |
| 11 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
| 12 | 14198901 | LOCKING PLATE |
| 14 | 8850468 | RING |
