8140SRC30.20A003

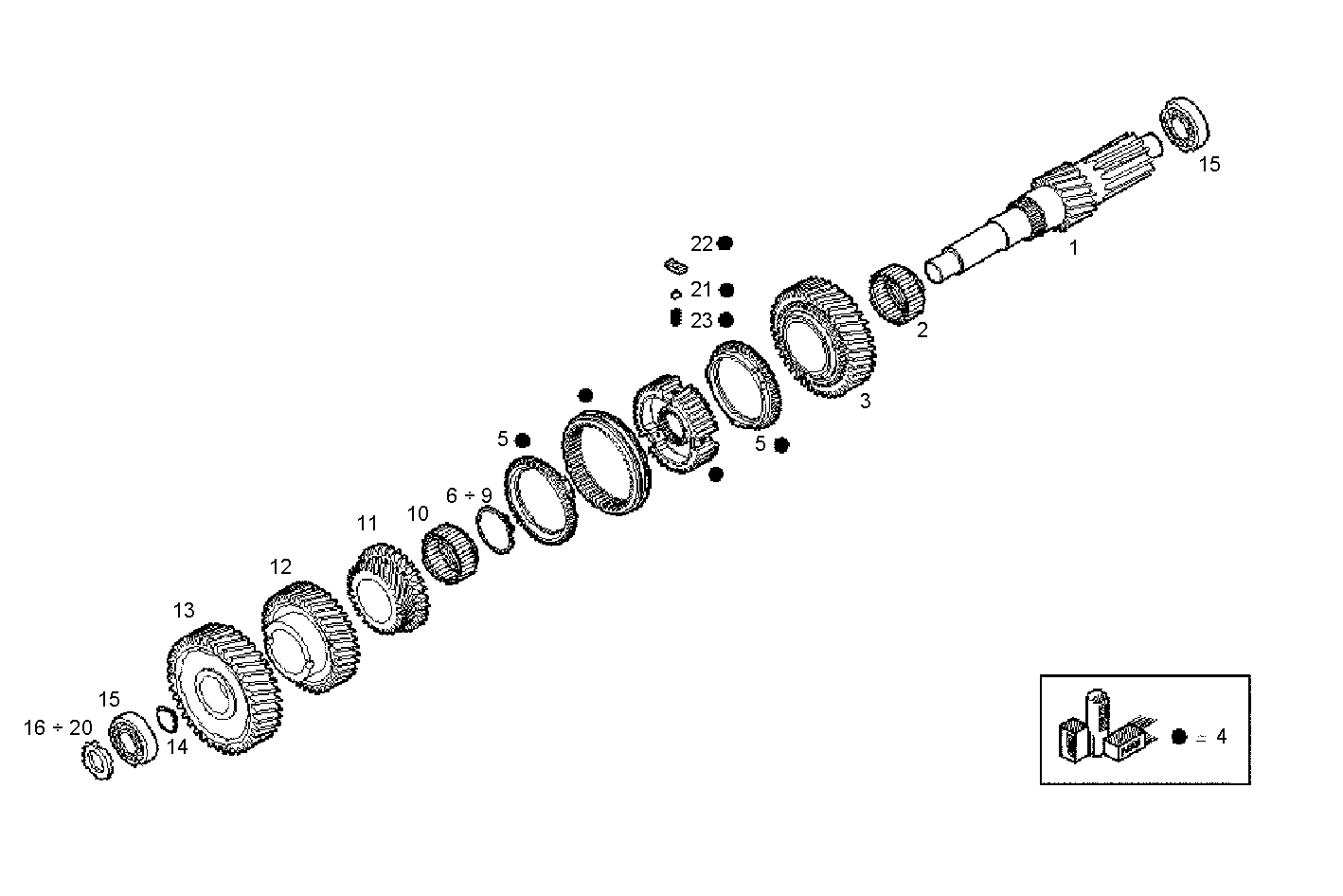

5301.002/06 TRANSMISSION
| Item |
Part number |
Description |
|
1 |
8869602 |
COUNTERSHAFT |
|
2 |
8869672 |
ROLLER CAGE |
|
3 |
8869592 |
SPLITTER GEAR |
|
4 |
8870250 |
KIT-SYNCHRONIZER |
|
5 |
8869663 |
SYNCHRONIZER |
|
6 |
8869678 |
CIRCLIP |
|
7 |
8869677 |
CIRCLIP |
|
8 |
8869676 |
CIRCLIP |
|
9 |
8869675 |
CIRCLIP |
|
10 |
8869671 |
ROLLER CAGE |
|
11 |
8869593 |
SPLITTER GEAR |
|
12 |
8869604 |
SPLITTER GEAR |
|
13 |
8869605 |
SPLITTER GEAR |
|
14 |
42534985 |
CIRCLIP Ø36 MM |
|
15 |
2992590 |
ROLLER BEARING |
|
16 |
8869712 |
STOP WASHER |
|
17 |
8869710 |
STOP WASHER |
|
18 |
8869708 |
STOP WASHER |
|
19 |
8869699 |
STOP WASHER |
|
20 |
8869704 |
STOP WASHER |
|
21 |
9926356 |
BALL |
|
22 |
8869720 |
DOWEL |
|
23 |
8869716 |
SPRING |
