8141i67.01

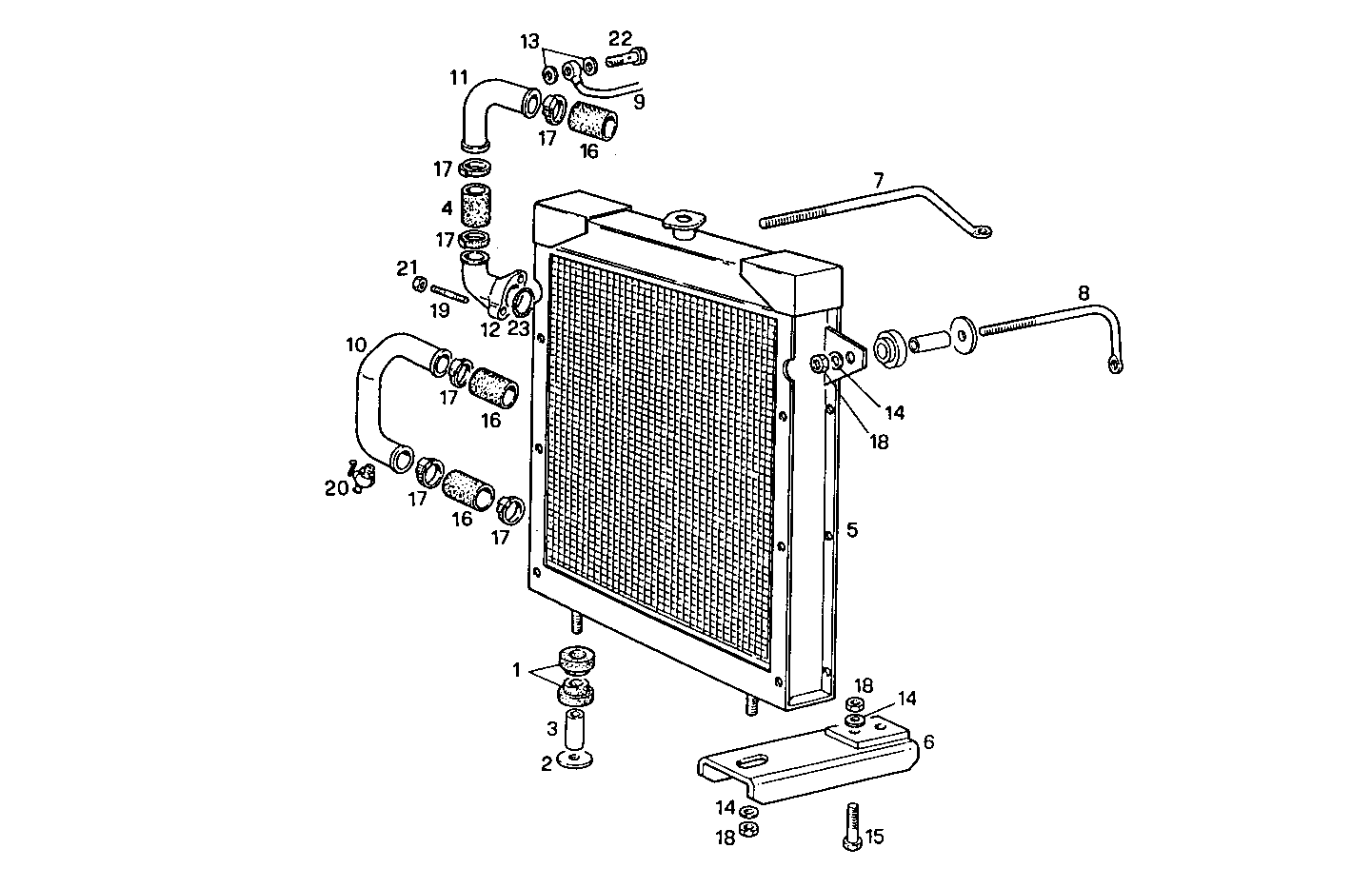

A22010002 RADIATOR FOR SETTING TILL MAX POWER
| Item | Part number | Description |
|---|---|---|
| 1 | 741569 | RUBBER LUG |
| 2 | 471570 | WASHER |
| 3 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 4 | 8017516 | WATER HOSE |
| 5 | 4934548 | WATER RADIATOR |
| 6 | 4934549 | SUPPORT |
| 7 | 4934566 | TIE ROD RIGHT |
| 8 | 8103171 | TIE ROD LEFT |
| 9 | 8010901 | WATER PIPE |
| 10 | 4934565 | WATER PIPE |
| 11 | 8100934 | WATER PIPE |
| 12 | 4934561 | WATER PIPE |
| 13 | 4858606 | GASKET Ø10X14X1 MM |
| 14 | 11198371 | SPRING WASHER Ø10X20 MM |
| 15 | 11306921 | SCREW M10X1,25X30 |
| 16 | 12088086 | RUBBER SLEEVE Ø40 MM |
| 17 | 12174090 | HOSE CLIP Ø32-52 MM |
| 18 | 12164711 | HEXAGON NUT M10X1,25 |
| 19 | 13517221 | STUD M8X12X30 MM |
| 20 | 13413190 | DRAIN COCK |
| 21 | 17037931 | HEXAGON NUT M8X1,25 |
| 22 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 23 | 14455281 | O-RING SP=1,78 MM |
