8141SRC20.00

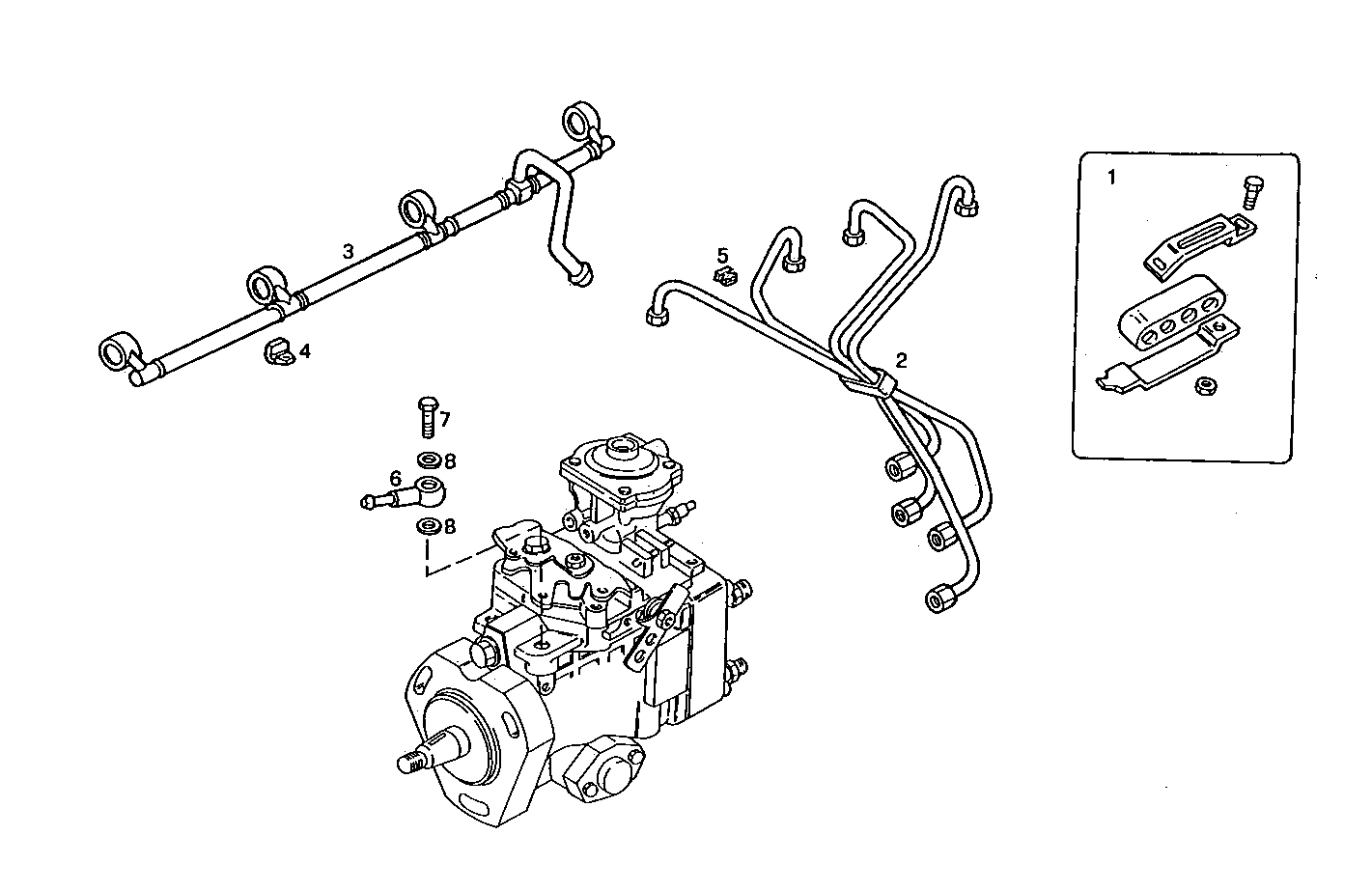

2020.103 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4806613 | RETAINER |
| 2 | 99444677 | INJECTION LINE SET |
| 3 | 98416553 | FUEL LINE |
| 4 | 4734007 | RETAINER FRONT |
| 5 | 4734008 | RETAINER REAR |
| 6 | 4722869 | SWIVEL COUPLING |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
