8210SRM36.10

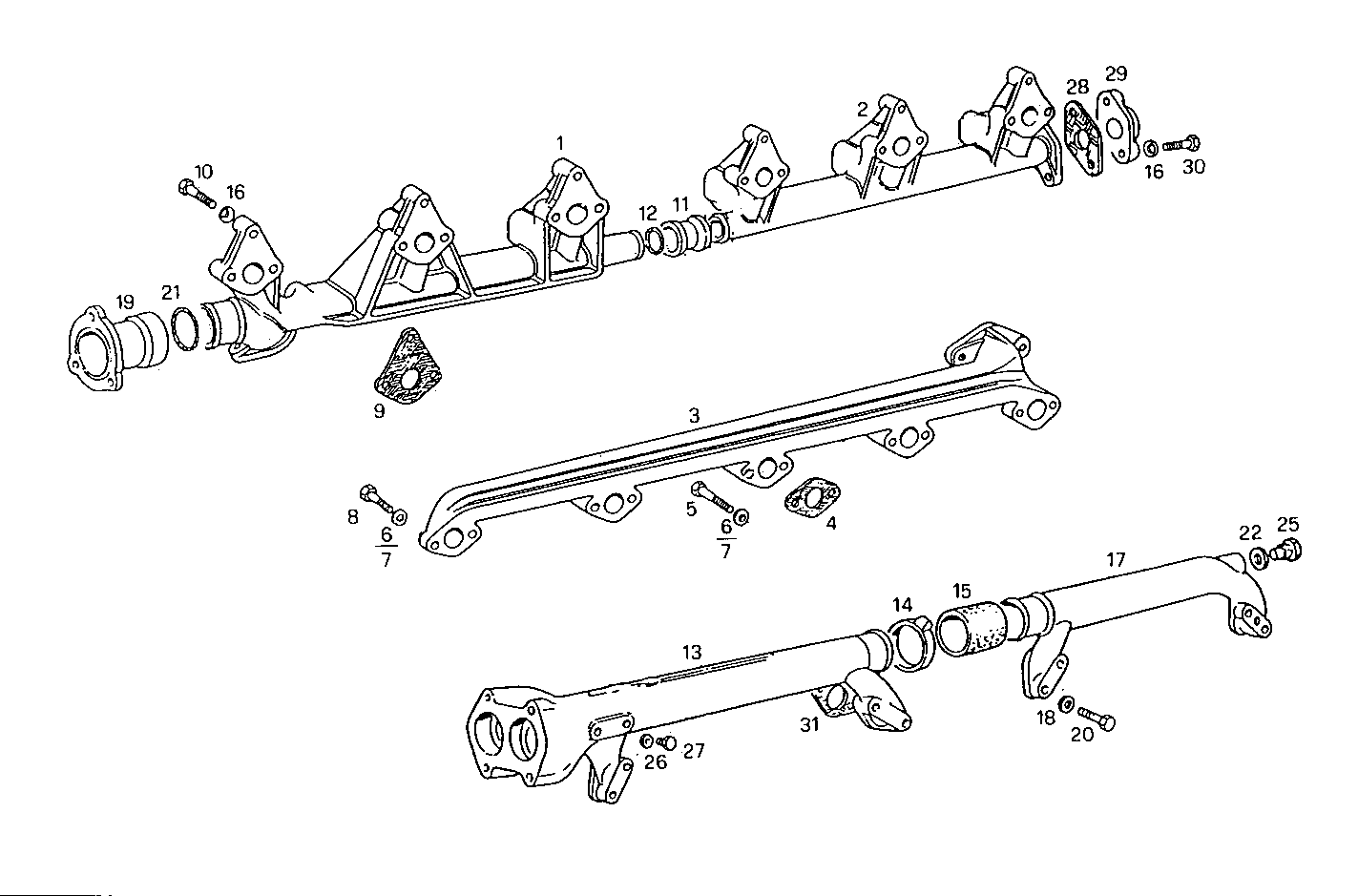

3210.034/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4778954 WATER MANIFOLD
2 4762646 WATER MANIFOLD
3 4641230 WATER MANIFOLD
4 4741300 FLAT ENGINE GASKET
5 16043924 SCREW M8X35
6 4852210 WASHER
7 4852211 WASHER
8 16606024 SCREW M8X45 MM
9 4852099 FLAT ENGINE GASKET
10 16605924 SCREW M8X40 MM
11 4762647 CONNECTOR SLEEVE
12 14463281 O-RING Ø3,53X24,99 MM
13 98427299 WATER MANIFOLD
14 17764992 CLIP Ø50-70 MM
15 4765377 TURBOCHARGER HOSE
16 11198074 SPRING WASHER Ø8X15 MM
17 4616590 WATER MANIFOLD REAR
18 11198379 SPRING WASHER Ø10X20 MM SP=2,6
19 4799657 WATER PIPE
20 15888734 HEXAGON BOLT M10X1,25X55 MM
21 14471481 O-RING Ø56,52 MM SP=5,33 MM
22 10260360 SEAL GASKET Ø24,3 MM
25 4871068 PLUG ASSY
26 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
27 10304911 THREADED PLUG M20X1,5
28 874348 GASKET
29 4641233 FLANGE
30 16043821 HEXAGON BOLT M8X30 MM
31 4852097 FLAT ENGINE GASKET
