8210SRM36.11

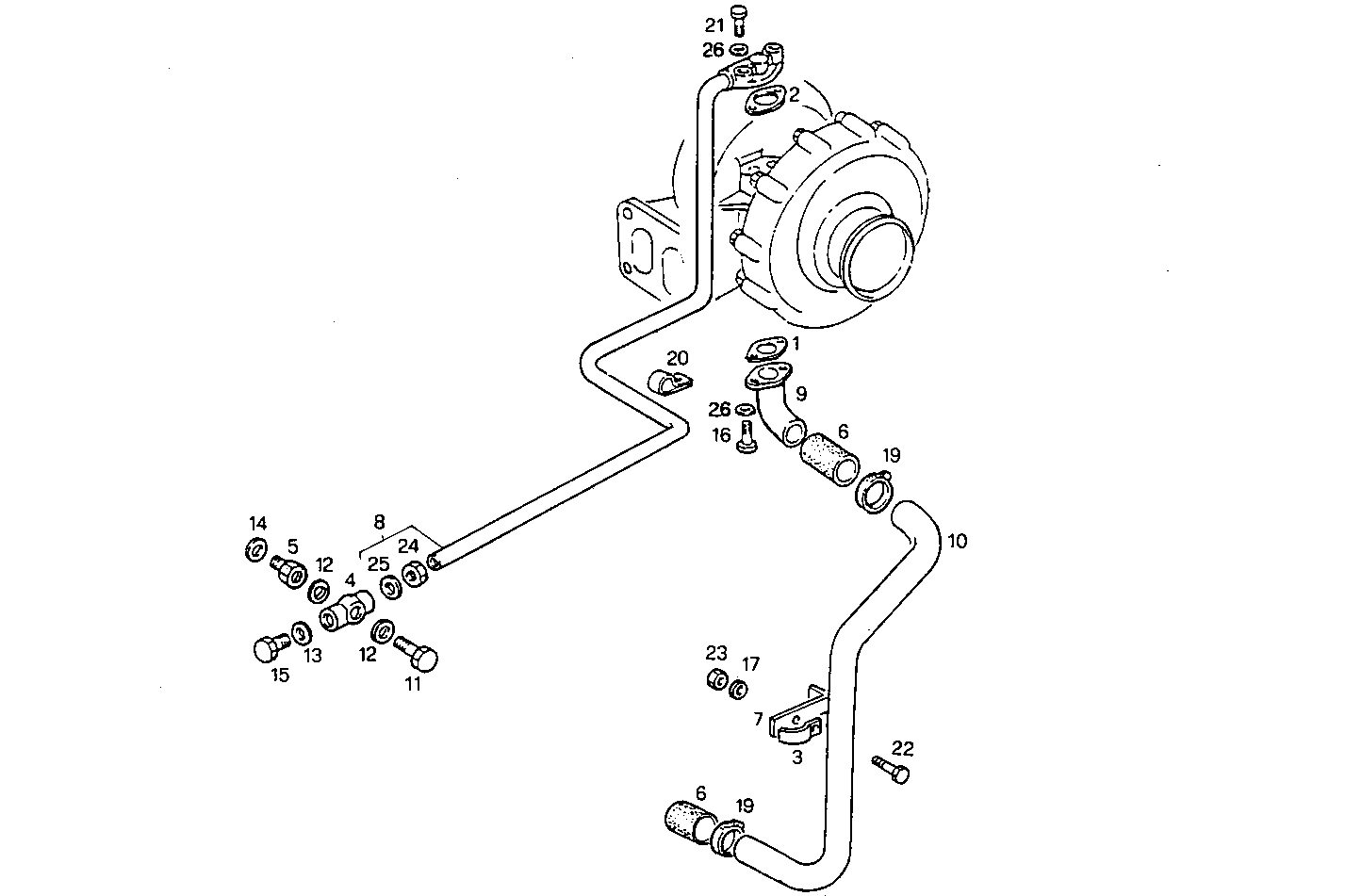

3010.059/02 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 4863965 FLAT ENGINE GASKET
2 4863967 FLAT ENGINE GASKET
3 4621091 CLIP
4 4745272 THREADED UNION
5 4682418 THREADED UNION
6 4778438 RUBBER SLEEVE WATER
7 8100819 RETAINER
8 8109179 OIL LINE ASSY
9 8109180 OIL LINE
10 8109234 OIL LINE
11 98429224 SCREW CONNECTOR
12 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
13 4858608 SEAL GASKET dia.14x19,5x1,5
14 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
15 10300611 LOCK PLUG M14X1,5
16 11106421 HEXAGON BOLT M10X1,5X30 MM
17 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
19 17764793 CLIP Ø32/50 MM
20 10450490 PIPE CLIP Ø16 MM
21 16043021 HEXAGON BOLT M8X12 MM
23 17037931 HEXAGON NUT M8X1,25
24 16507011 NUT M22X1,5
25 16507711 WASHER Ø15 MM
26 17090174 SPRING WASHER Ø10X20 MM
