8360SRC22.10

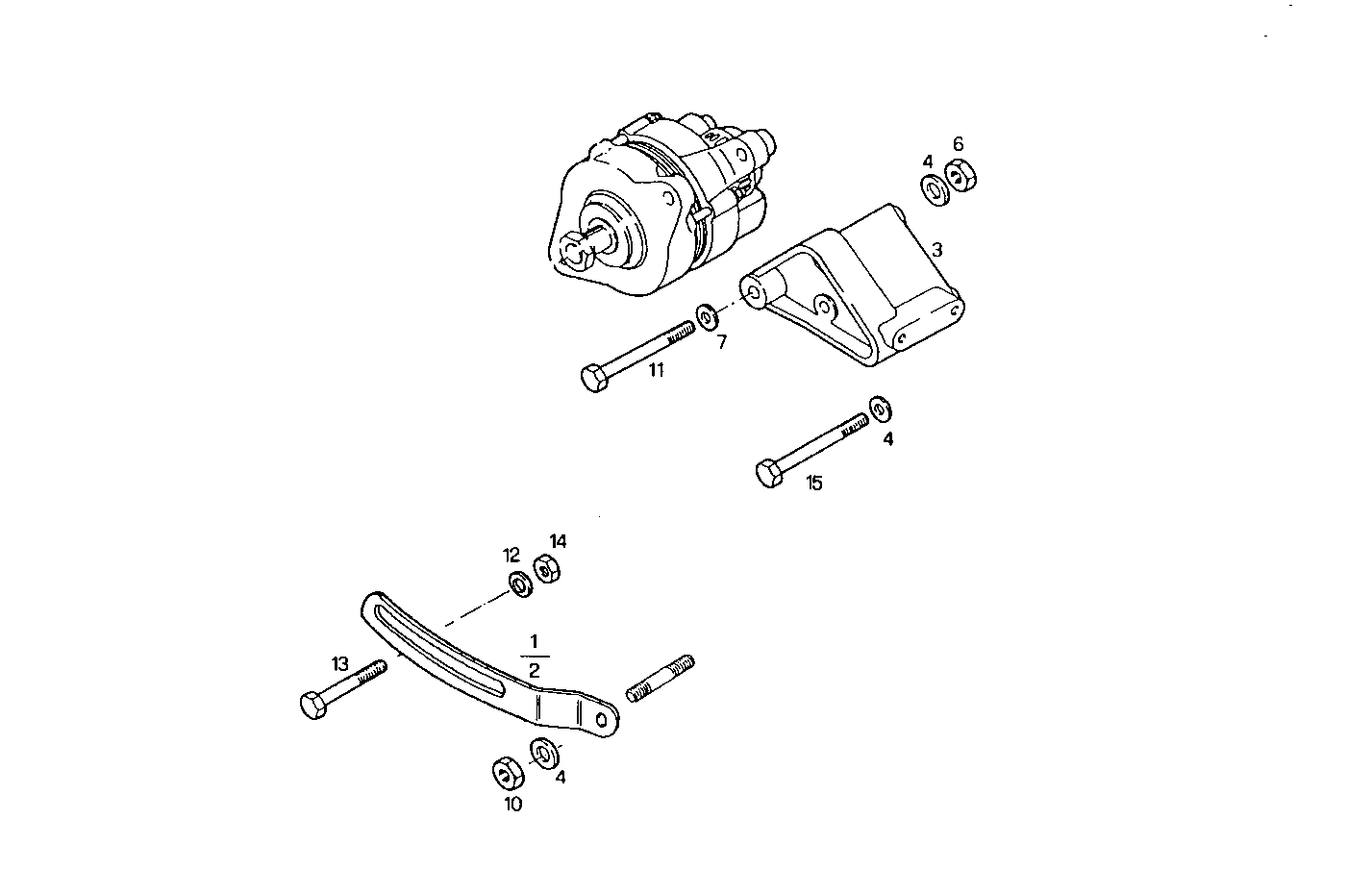

4010.069 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 97496175 | BELT TENSIONER [up to 257628] |
| 2 | 97496173 | BELT TENSIONER [from 257629] |
| 3 | 4853917 | SUPPORT |
| 4 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 17038621 | NUT M12 |
| 7 | 12646901 | WASHER Ø12X28 MM |
| 8 | 98472554 | STUD M10X1,25X104 - M8X1,25 |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 15541824 | SCREW M12X1,25X120 MM |
| 12 | 17095114 | WASHER Ø10X21 MM |
| 13 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 14 | 17157221 | NUT M10X1,25 |
| 15 | 15971824 | SCREW M10X1,25X100 |
