8361Si10.00

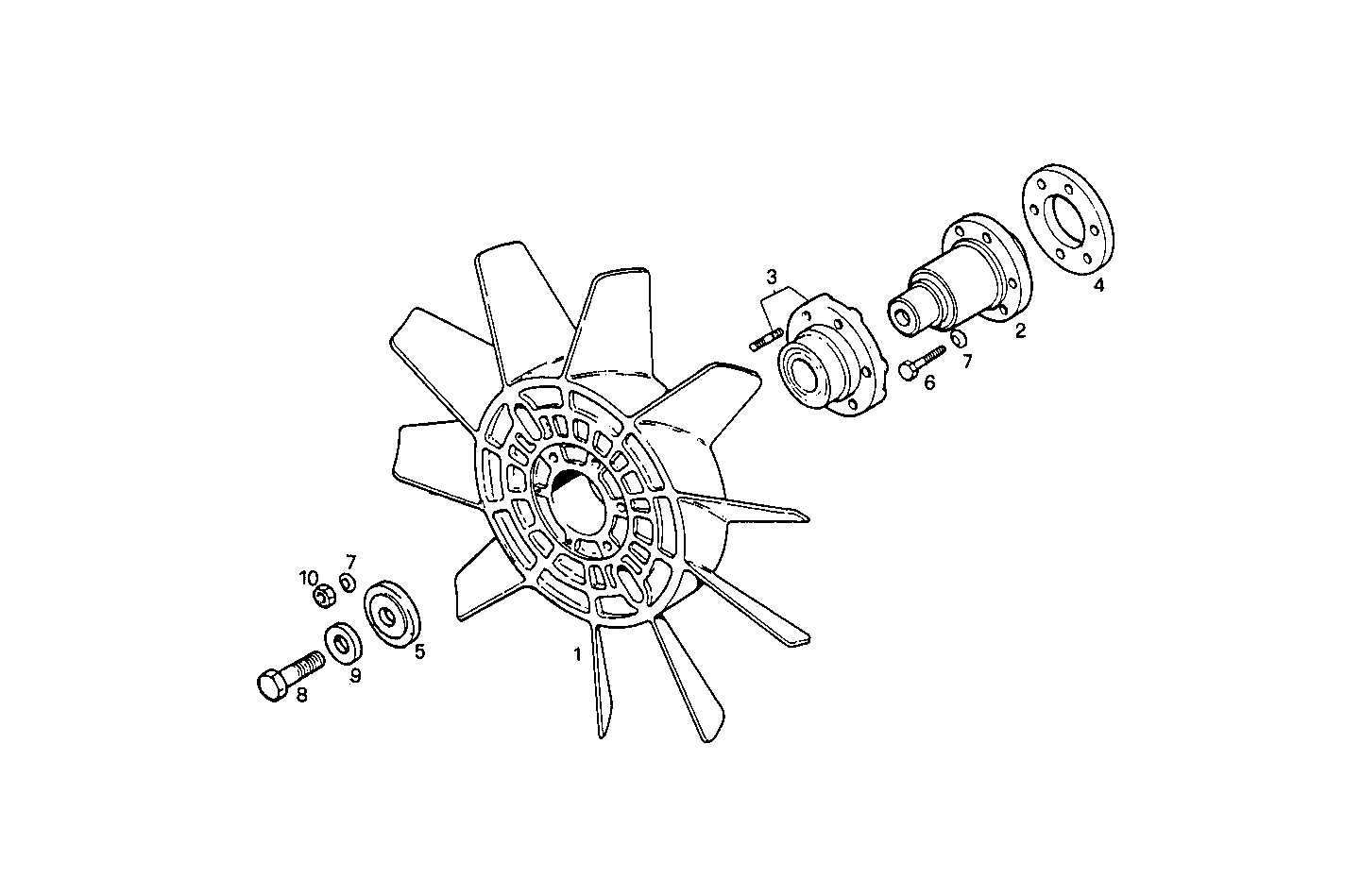

A08030006 PULLER FAN - on engine axis
| Item | Part number | Description |
|---|---|---|
| 1 | 4629725 | BLOWER Ø560 MM |
| 2 | 4733904 | FLANGED HUB |
| 3 | 4739204 | HUB ASSY |
| 4 | 4725248 | SPACING BAR |
| 5 | 4733905 | RING |
| 6 | 15888831 | HEXAGON BOLT M10X70 MM |
| 7 | 11198371 | SPRING WASHER Ø10X20 MM |
| 8 | 15840521 | SCREW M16X1,5X50 |
| 9 | 11200271 | WASHER Ø16X34X4,4 MM |
| 10 | 12164711 | HEXAGON NUT M10X1,25 |
