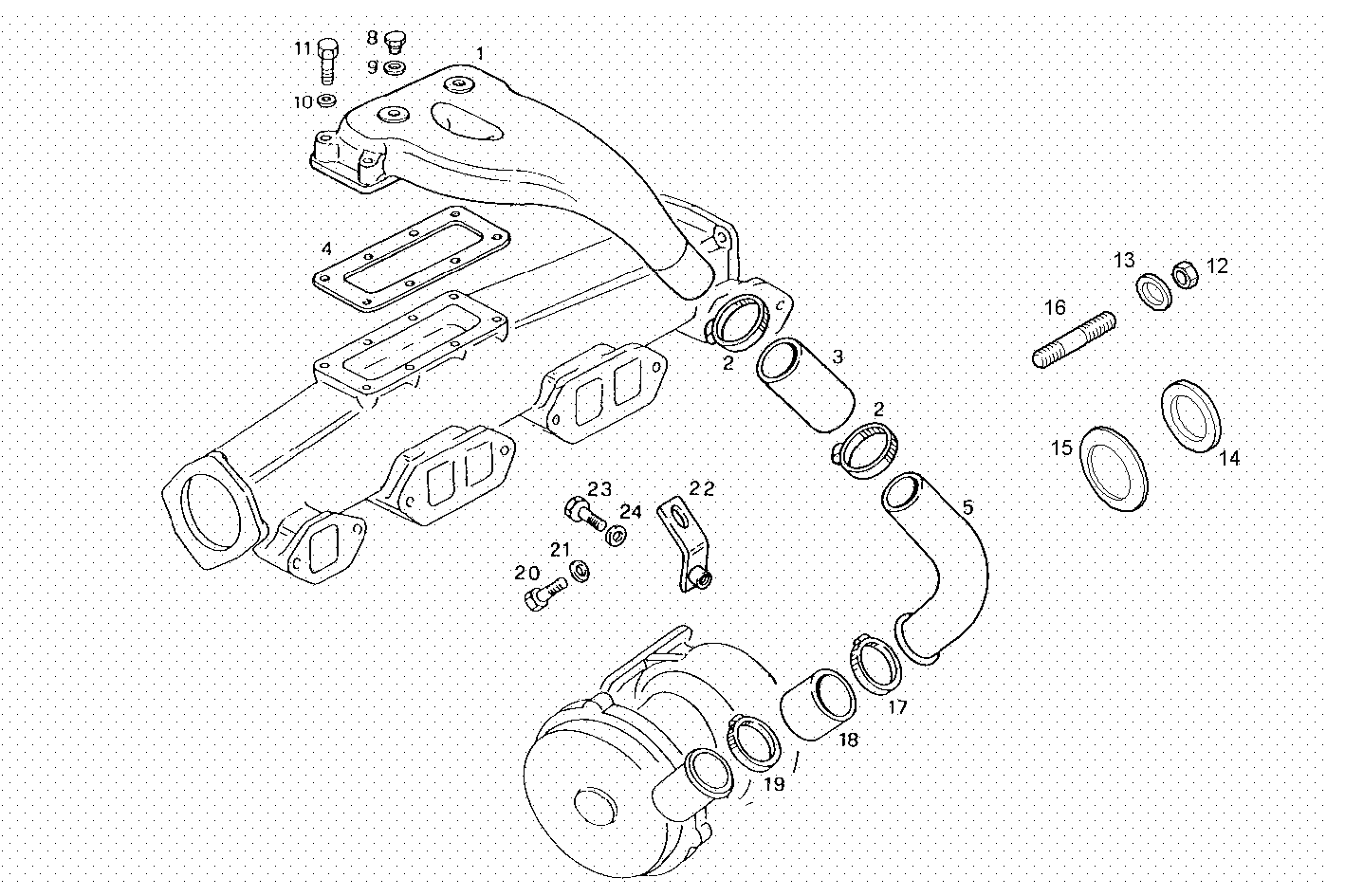

| Item |
Part number |
Description |
|
1 |
8017705 |
INTAKE ELBOW |
|
2 |
8114464 |
CLIP DIA 63/68 |
|
3 |
98437496 |
RUBBER SLEEVE |
|
4 |
8019078 |
GASKET |
|
5 |
8017680 |
EXHAUST ELBOW |
|
8 |
10304911 |
THREADED PLUG M20X1,5 |
|
9 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
10 |
17793804 |
WASHER Ø8X21X1,5 MM |
|
11 |
8023383 |
SCREW M10X45 |
|
12 |
17037921 |
HEXAGON NUT M8X1,25 |
|
13 |
16665504 |
WASHER Ø8 MM |
|
14 |
8113659 |
FLANGE |
|
15 |
4729026 |
GASKET |
|
16 |
16729424 |
STUD M8X1,25X25 |
|
17 |
17768591 |
CLIP |
|
18 |
8017813 |
RUBBER SLEEVE |
|
19 |
8019910 |
CLIP |
|
20 |
16605424 |
SCREW M8X16 MM (8.8) |
|
21 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
22 |
8018445 |
RETAINER |
|
23 |
16607924 |
HEXAGON BOLT M10X1,5X40 MM |
|
24 |
17090174 |
SPRING WASHER Ø10X20 MM |
