8460SM19.12

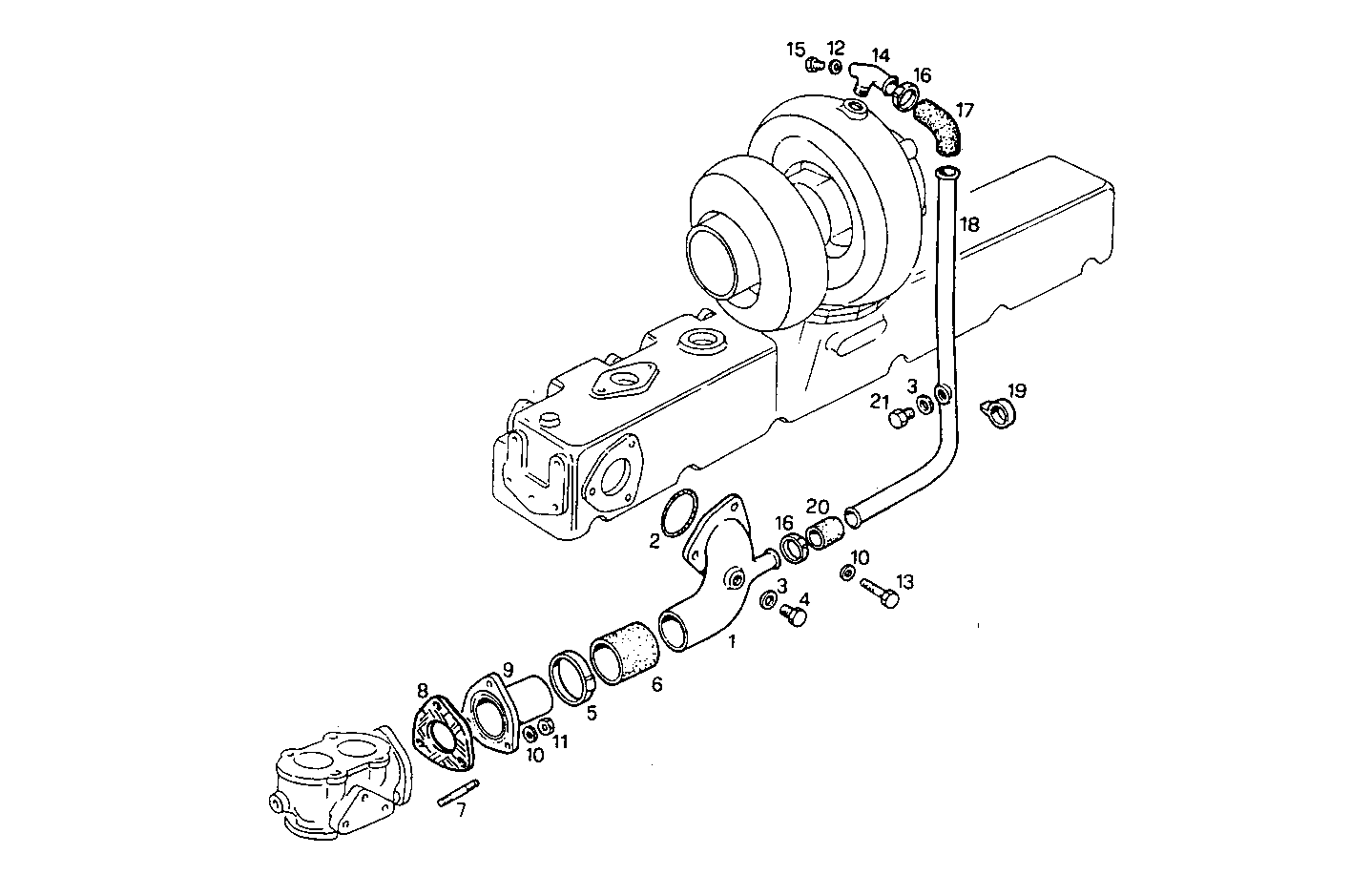

3210.104/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8007802 WATER PIPE
2 17290281 O-RING Ø63,09 MM SP=3,53 MM
3 4858609 WASHER Ø16X22 MM SP=1,5 MM
4 16992411 THREADED PLUG M16X1,5
5 17765093 CLIP Ø60/80 MM
6 8107383 RUBBER SLEEVE Ø60 MM
7 16746624 STUD M8X20 MM (8.8)
8 4862977 FLAT ENGINE GASKET
9 8007801 WATER PIPE
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 17037931 HEXAGON NUT M8X1,25
12 4858606 GASKET Ø10X14X1 MM
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 8008297 PIPE SOCKET
15 11903140 PLUG M10X1,25
16 17764793 CLIP Ø32/50 MM
17 8008790 WATER HOSE
18 8014214 WATER PIPE
19 4621091 CLIP
20 8007804 RUBBER SLEEVE WATER
