8460SRC22.00

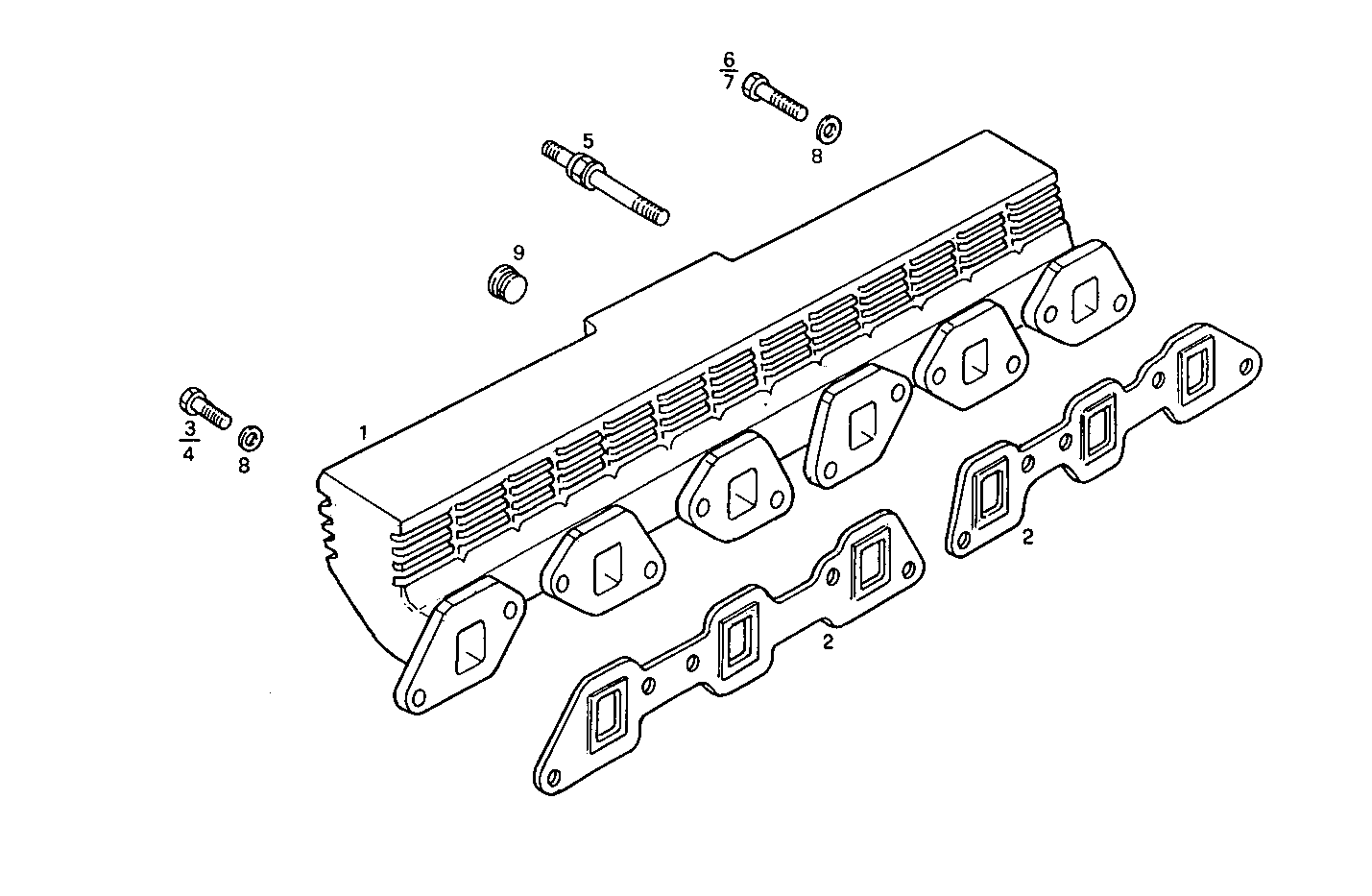

0710.115 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 61321093 | INTAKE ELBOW |
| 2 | 61321089 | INTAKE ELBOW GASK. |
| 3 | 15972424 | HEXAGON BOLT M10X1,25X130 MM |
| 4 | 15972824 | SCREW M10X1,25X150 |
| 5 | 61318746 | STUD |
| 6 | 15116624 | HEXAGON BOLT M10X1,25X50 MM |
| 7 | 61320845 | HEXAGON BOLT M10X1,25X45 MM |
| 8 | 17090274 | WASHER Ø10X20 MM |
| 9 | 16994350 | THREADED PLUG M12X1,5 |
