8460SRi11.00

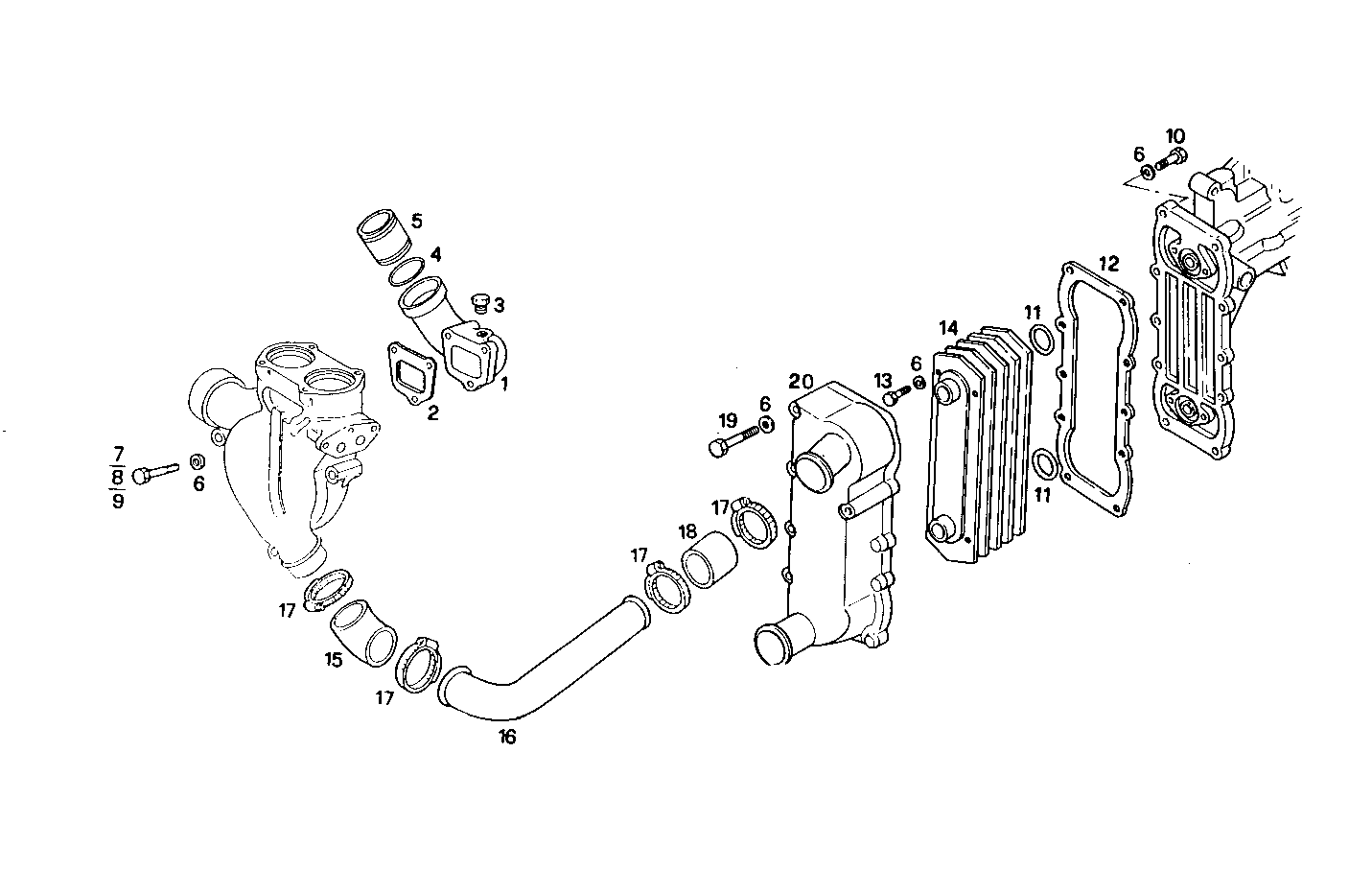

3210.083/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 61318069 WATER PIPE
2 61318850 FLAT ENGINE GASKET
3 16996511 THREADED PLUG M22X1,5
4 17296081 O-RING Ø56,52X5,33 MM
5 61317101 CONNECTOR SLEEVE
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16606624 HEXAGON BOLT M8X80 MM
8 16606224 HEXAGON BOLT M8X55 MM
9 16605734 HEXAGON BOLT M8X30 MM
10 16605824 HEXAGON BOLT M8X35 MM
11 17283581 O-RING Ø44,12 MM SP=2,62 MM
12 61318847 FLAT ENGINE GASKET
13 16043721 HEXAGON BOLT M8X28 MM
14 61319539 OIL COOLER
15 61317309 WATER HOSE
16 8018356 WATER PIPE
17 17765091 CLIP Ø60/80 MM
18 98438633 WATER HOSE dia. 60 - L. 70
19 16606924 SCREW M8X110
20 61317985 HEAT EXCHANG.COVER
