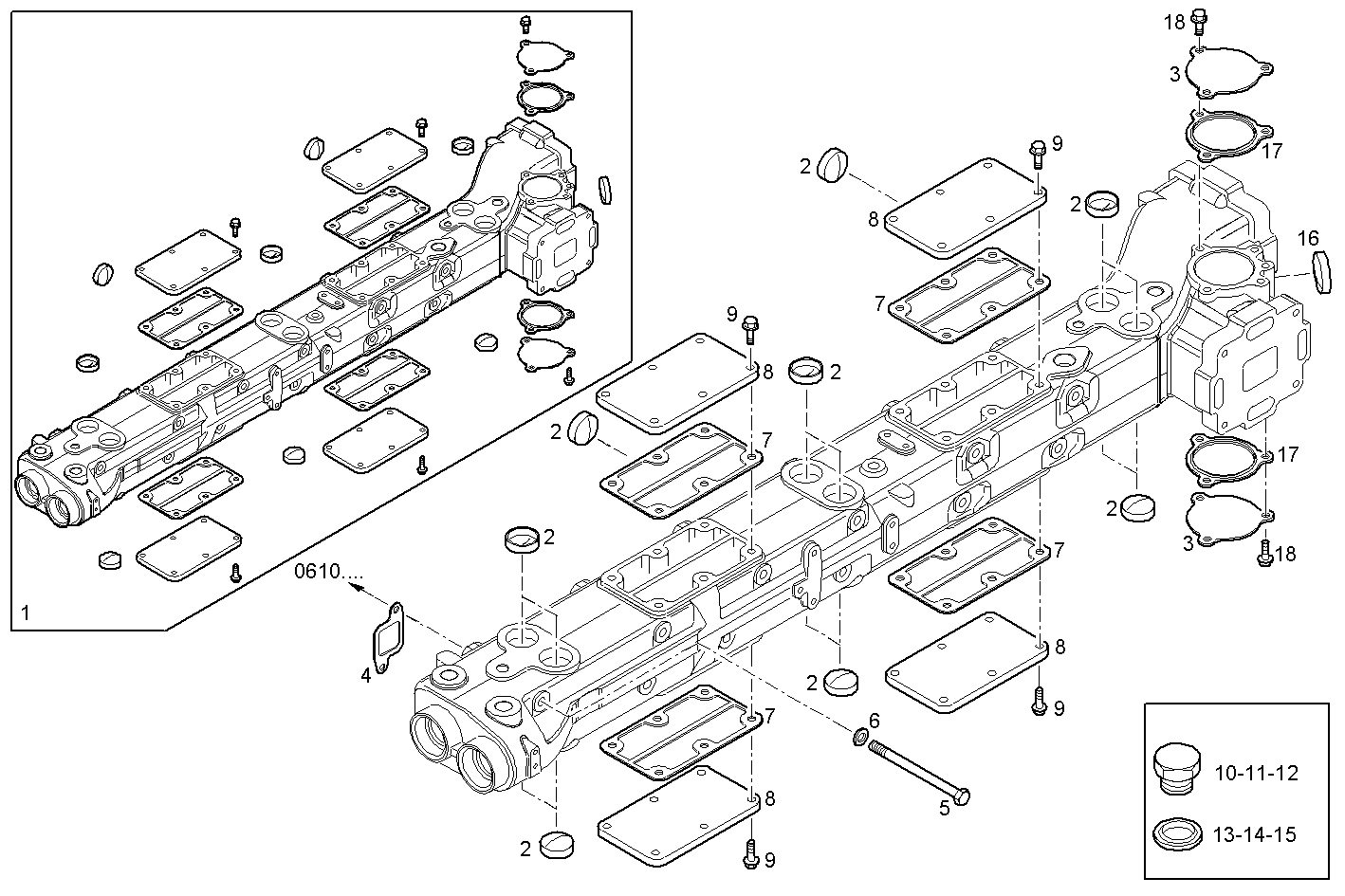

0780.041 EXHAUST MANIFOLD [FROM 03-07-07] [FROM 03-07-07]

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 8047564 COOLED EXHAUST MANIF. ASSY
2 16991170 LOCK PLUG Ø36 MM
3 8047530 COVER
4 8035856 EXH. MANIFOLD GKT
5 8039896 HEXAGON BOLT
6 17090274 WASHER Ø10X20 MM
7 8044549 FLAT ENGINE GASKET
8 8044194 COVER
9 16673635 HEXAGON BOLT M8X1.25X20
10 16992340 THREADED PLUG M14X1,5
11 16992640 PLUG M22X1,5
12 16992240 THREADED PLUG M12X1,5
13 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
14 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
15 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
16 16991470 LOCK PLUG Ø50 MM
17 8047531 FLAT ENGINE GASKET
18 16586225 HEXAGON BOLT M8X1,25X16 MM
