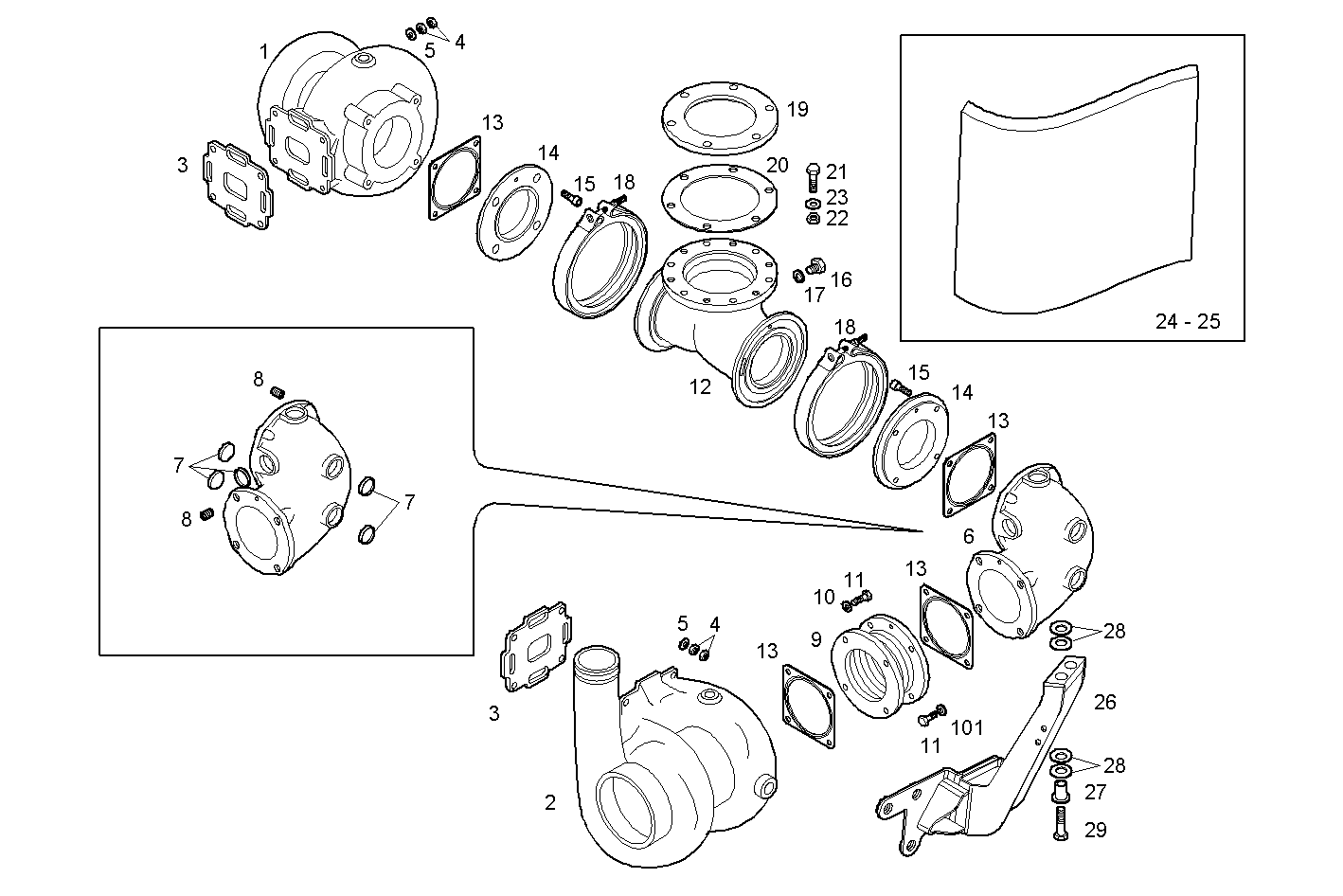

| Item |
Part number |
Description |
|
1 |
504109151 |
TURBOCHARGER |
|
2 |
504126628 |
TURBOCHARGER |
|
3 |
8027510 |
FLAT ENGINE GASKET |
|
4 |
17038131 |
HEXAGON NUT M10 |
|
5 |
17090274 |
WASHER Ø10X20 MM |
|
6 |
8040170 |
EXHAUST PIPE ASSY |
|
7 |
16990870 |
LOCK PLUG Ø28 MM |
|
8 |
17873271 |
THREADED INSERT M8 |
|
9 |
8039993 |
EXHAUST BELLOWS |
|
10 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
8041452 |
LINE |
|
13 |
8040168 |
EXH. MANIFOLD GKT |
|
14 |
8040417 |
FLANGE |
|
15 |
16690624 |
CYLIND-HEAD SCREW M8X25 MM |
|
16 |
16992240 |
THREADED PLUG M12X1,5 |
|
17 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
18 |
8040436 |
CLIP |
|
19 |
8022504 |
FLANGE |
|
20 |
8010072 |
GASKET |
|
21 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
23 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
24 |
8041811 |
PROTECTION |
|
25 |
8041812 |
PROTECTION |
|
26 |
8041825 |
RETAINER |
|
27 |
8041809 |
BUSH |
|
28 |
8041806 |
SPRING |
|
29 |
16587525 |
HEXAGON BOLT M10X45 MM |
