C13ENTM77.10

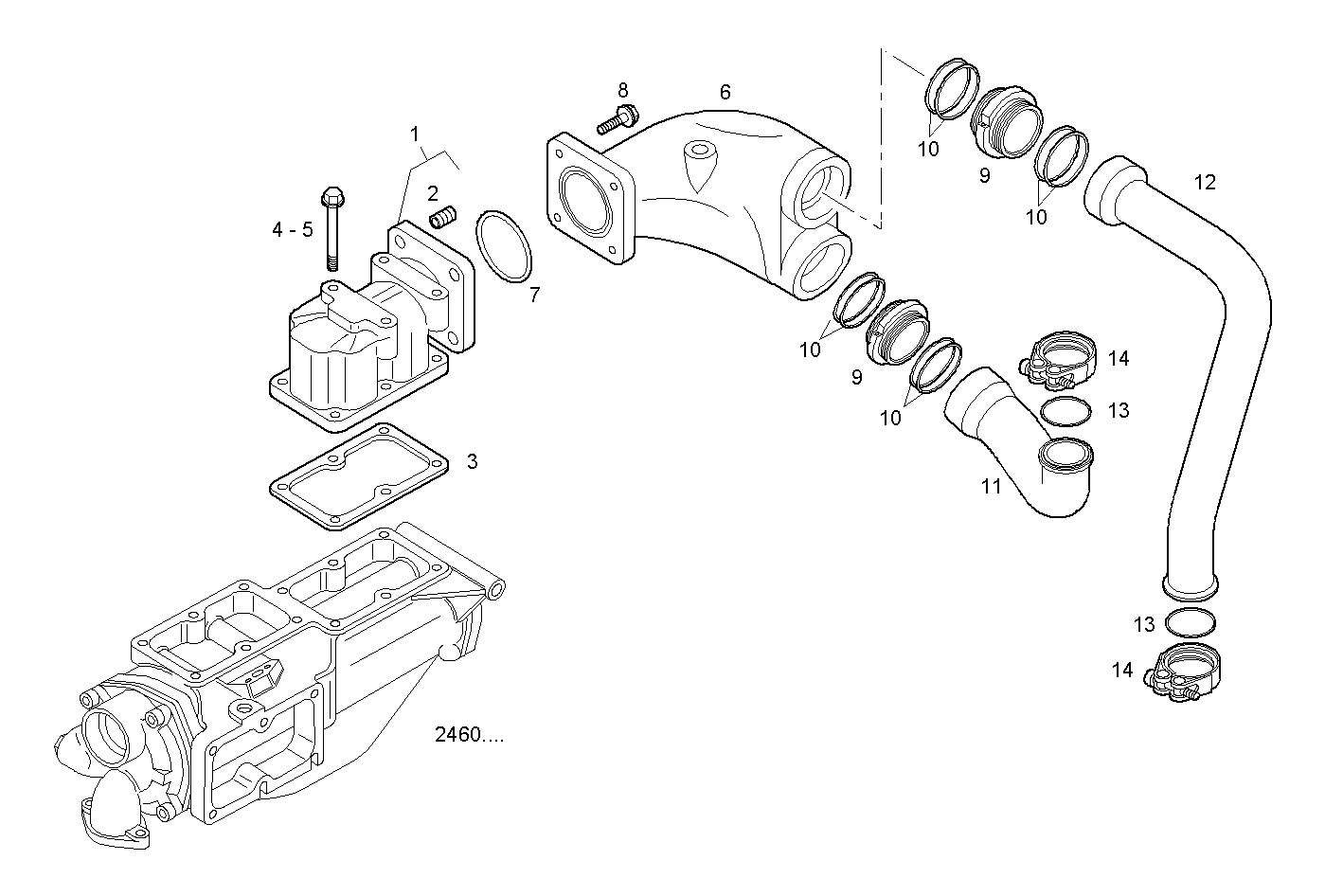

2420.231 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8037749 | AIR HOOD ASSY |
| 2 | 17873371 | THREADED INSERT M10X1,5 |
| 3 | 504026624 | FLAT ENGINE GASKET |
| 4 | 16598625 | HEXAGON BOLT M8X1,25X140 MM |
| 5 | 16486524 | HEXAGON BOLT |
| 6 | 8038802 | DELIVERY LINE |
| 7 | 17291481 | O-RING Ø101,19 MM SP=3,53 |
| 8 | 16587425 | HEXAGON BOLT M10X40 MM |
| 9 | 8032183 | SPACING BAR |
| 10 | 17290581 | O-RING Ø72,63X3,53 MM |
| 11 | 8038901 | AIR PIPE/DUCT |
| 12 | 8039140 | AIR PIPE/DUCT |
| 13 | 17284781 | O-RING 2,62x63,17 |
| 14 | 4800661 | CLIP Ø 75 mm. |
