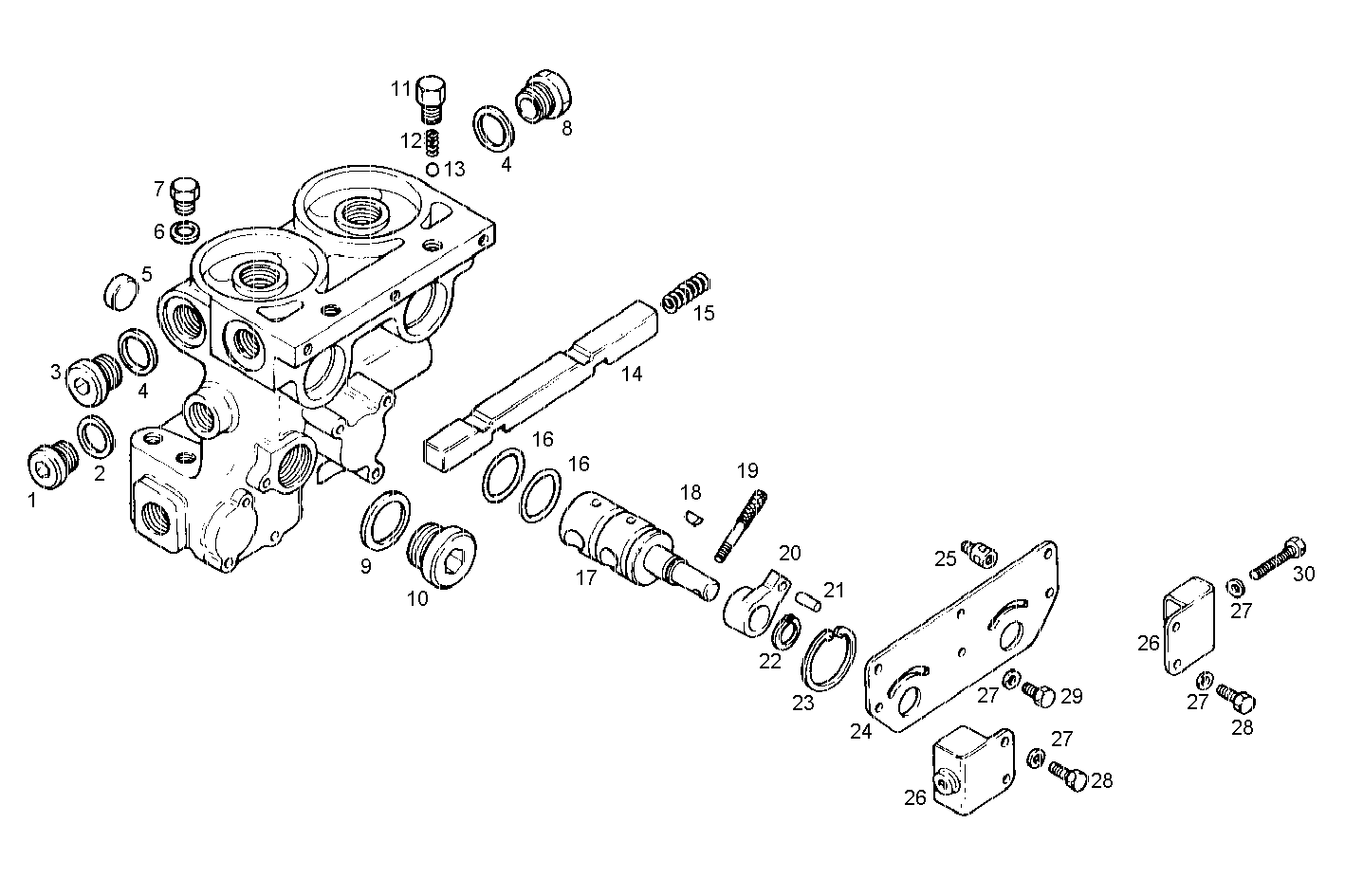

A17070503/03 DOUBLE OIL FILTER [FROM 14/04/06] [FROM 14/04/06]

Iveco/FPT DOUBLE OIL FILTER

Item Part number Description
1 16994111 PLUG M24X1,5
2 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
3 16993511 LOCK PLUG M28X1,5
4 99432291 SEAL GASKET Ø28 MM
5 14325511 LOCK PLUG Ø28 MM
6 4858609 WASHER Ø16X22 MM SP=1,5 MM
7 16992415 THREADED PLUG M16X1,5
8 4627301 PLUG M28X1,5/M14X1,5
9 99469380 SEAL GASKET Ø35 MM
10 16993711 THREADED PLUG M35X1,5
11 8009724 PLUG
12 8009726 SPRING
13 8009725 BALL
14 8025114 ROD
15 8009727 SPRING
16 17289481 O-RING Ø37,69 MM SP=3,53 MM
17 8009716 VALVE
18 17221020 KEY M12X110 MM
19 8009717 HANDLE BALL
20 8021563 LEVER ASSY
21 17236510 PIN Ø4X20 MM
22 16866276 CIRCLIP Ø22X1,2 MM
23 16873176 CIRCLIP Ø47X1,75 MM
24 8025113 PLATE
25 8009742 SPACING BAR
26 8025118 RETAINER
27 17088474 WASHER Ø6X12 MM
28 16603677 HEXAGON BOLT M6X16 MM
29 16603525 SCREW M6X12 MM
30 16605124 SCREW M6X1X40
