F1CE0481B*A001

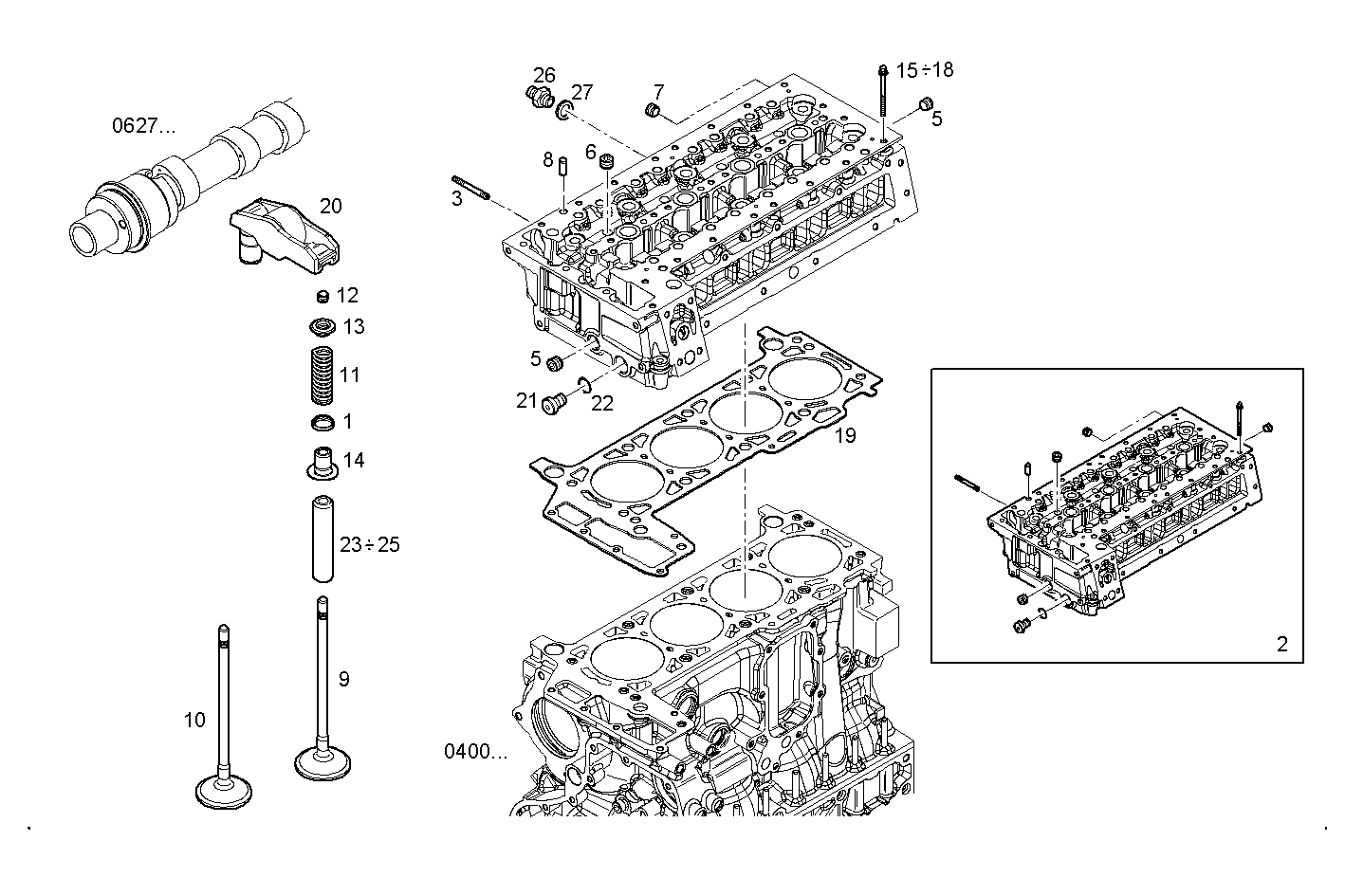

0610.002 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
504075442 |
VALVE SEAT STD. |
|
2 |
504110672 |
CYLINDER HEAD ASSY |
|
3 |
504089121 |
STUD M8X1.25 |
|
5 |
504051237 |
THREADED PLUG DIAM=1/4" |
|
6 |
504051238 |
THREADED PLUG DIAM=3/8" |
|
7 |
504051236 |
THREADED PLUG DIAM=1/8" |
|
8 |
504087365 |
DOWEL PIN |
|
9 |
504072531 |
INLET VALVE |
|
10 |
504081062 |
EXHAUST VALVE |
|
11 |
500348686 |
ENGINE VALV.SPRING |
|
12 |
14194670 |
VALVE CONE |
|
13 |
500348685 |
SPRING CAP |
|
14 |
500395378 |
CAP |
|
15 |
504081515 |
CYL.HEAD STUD M15X1,5 |
|
16 |
504081531 |
CYL.HEAD STUD M12X1.5 |
|
17 |
504081543 |
CYL.HEAD STUD M8X1.25 |
|
18 |
504081546 |
CYL.HEAD STUD M8X1.25 |
|
19 |
504082942 |
CYL.HEAD GASKET |
|
20 |
504074464 |
ROCKER ARM |
|
21 |
16994211 |
LOCK PLUG M26X1,5 |
|
22 |
16508560 |
WASHER Ø26X31 MM |
|
23 |
504053804 |
VALVE GUIDE +0,05 MM |
|
24 |
504053805 |
VALVE GUIDE +0.10 |
|
25 |
504053806 |
VALVE GUIDE +0.25 |
|
26 |
504033677 |
THREADED UNION DIAM=1/4" |
|
27 |
504077652 |
WASHER |
