F2BE4683A*E001

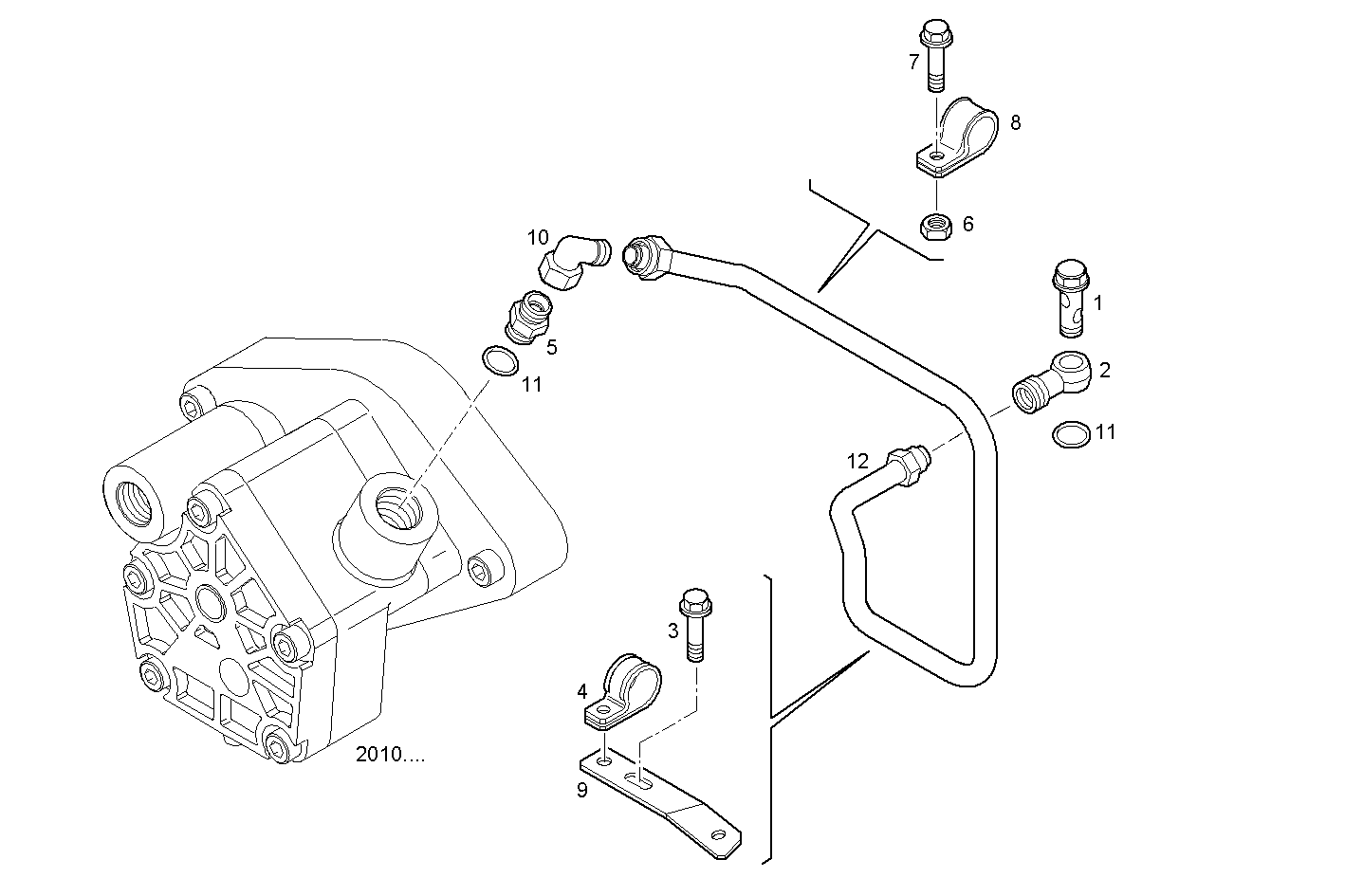

2031.020 FUEL LINES - INLET TO FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504081282 | SCREW CONNECTOR M16X1,5 |
| 2 | 42126511 | BANJO COUPLING |
| 3 | 16597925 | HEXAGON BOLT M8X14 MM |
| 4 | 17316592 | PIPE CLIP |
| 5 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 6 | 17044625 | HEXAGON NUT M6 |
| 7 | 18137825 | HEXAGON BOLT M6X16 |
| 8 | 17314990 | FASTENING BRACKET |
| 9 | 504235676 | RETAINER |
| 10 | 16504114 | ELBOW COUPLING M18X1,5 |
| 11 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 12 | 504250525 | FUEL LINE |
