F32MNSX01.00A800

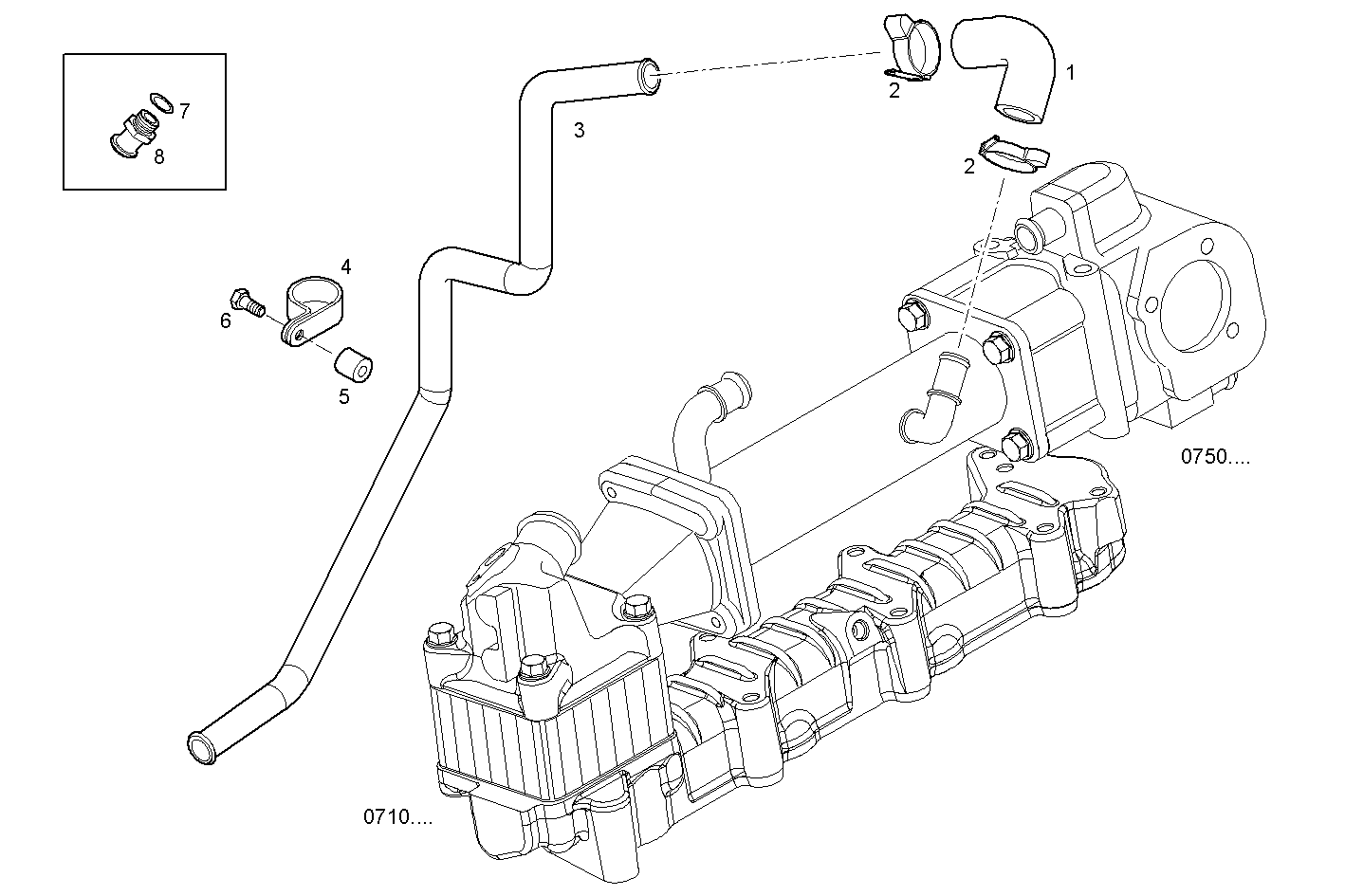

0750.004 EGR

Iveco/FPT EGR

Item Part number Description
1 8049847 RUBBER SLEEVE
2 17764594 HOSE CLIP
3 8049815 WATER PIPE
4 8049850 FASTENING BRACKET
5 17816514 SPACING BAR Ø8,5X18 MM SP=25 MM
6 16586725 HEXAGON BOLT M8X1.25X40 MM
7 4858609 WASHER Ø16X22 MM SP=1,5 MM
8 8049822 SCREW CONNECTOR
