GE8210SRG85.10A70M

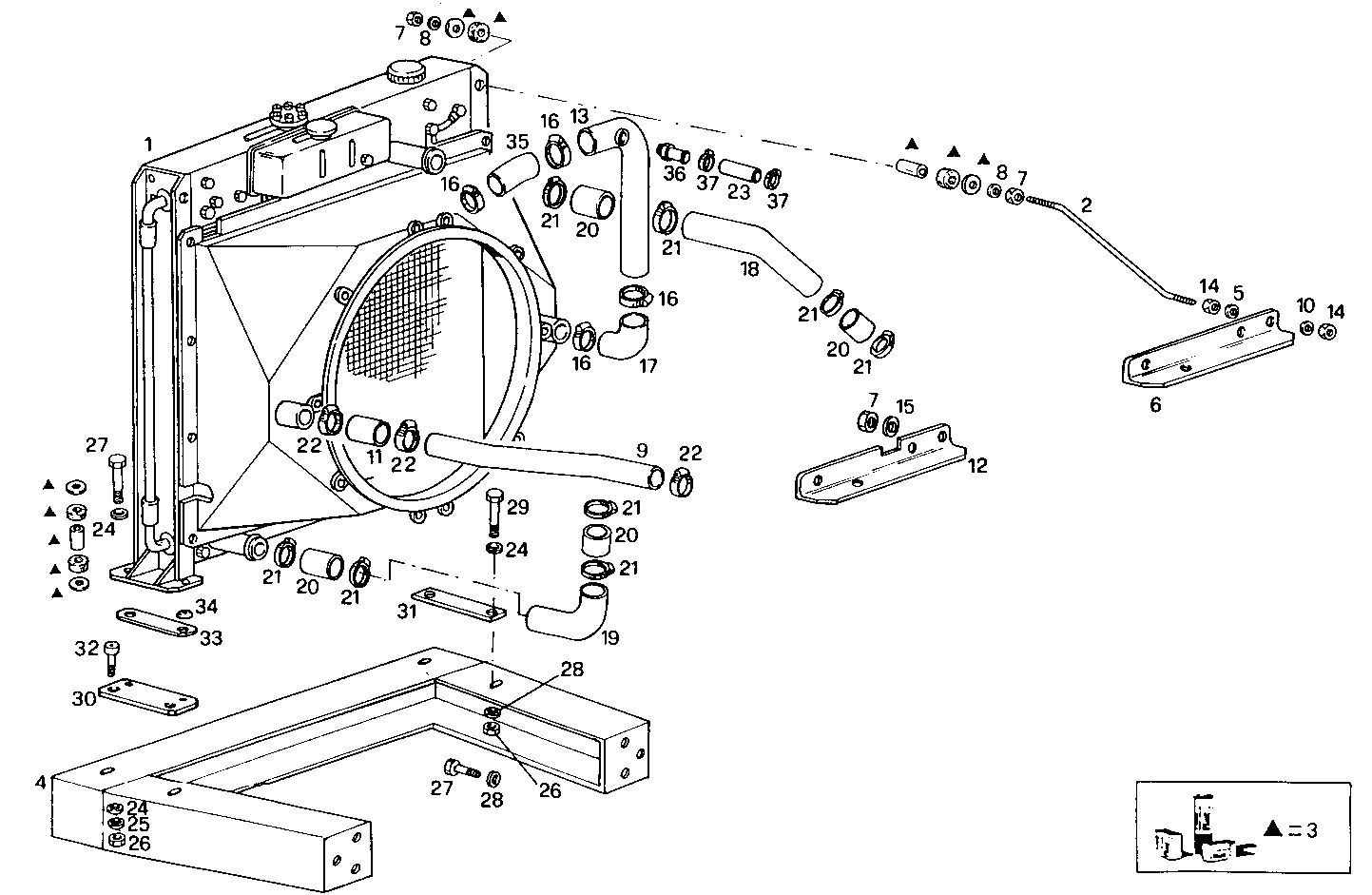

A22480003 RADIATOR 2 CIRCUITS AIR/WATER - assembled

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 8009970 WATER RADIATOR ASSY
2 8110577 TIE ROD
3 8090977 KIT-RADIATOR A.S. COMPLETE
4 8027161 SUPPORT
5 17095504 WASHER Ø14X28 MM
6 8010579 RETAINER RIGHT
7 17038421 HEXAGON NUT M12 (8)
8 17091374 SPRING WASHER Ø12X30X3,0 MM
9 8027163 WATER PIPE
10 17091674 WASHER Ø14X27X3,0 MM
11 17743687 RUBBER SLEEVE Ø45X60 MM
12 8027665 RETAINER LEFT
13 8027164 WATER PIPE
14 17038221 HEXAGON NUT M10
15 17095304 WASHER Ø12X24 MM
16 17764891 CLIP Ø40/60 MM
17 8110557 CONNECTOR SLEEVE
18 8010581 WATER PIPE
19 8010580 WATER PIPE
20 17745887 RUBBER SLEEVE WATER
21 4830091 CLIP
22 98490783 CLIP Ø55-65 MM
23 19086687 HOSE
24 17095704 WASHER Ø16X30 MM
25 17092374 SPRING WASHER Ø16X34X3,6 MM
26 17038921 NUT M16X2
27 16614524 HEXAGON BOLT M16X35 MM
28 17092174 SPRING WASHER Ø16X32X3,4
29 16615224 HEXAGON BOLT M16X70 MM
30 8017948 SPACING BAR SP=30 MM
31 8017949 SPACING BAR SP=30 MM
32 16697924 SCREW
33 8010041 SPACING BAR SP=7 MM
34 8019415 SPACING BAR
35 4927830 RUBBER SLEEVE
36 4618675 THREADED UNION
37 18088191 CLIP
