GE8281SRM44.30A60E

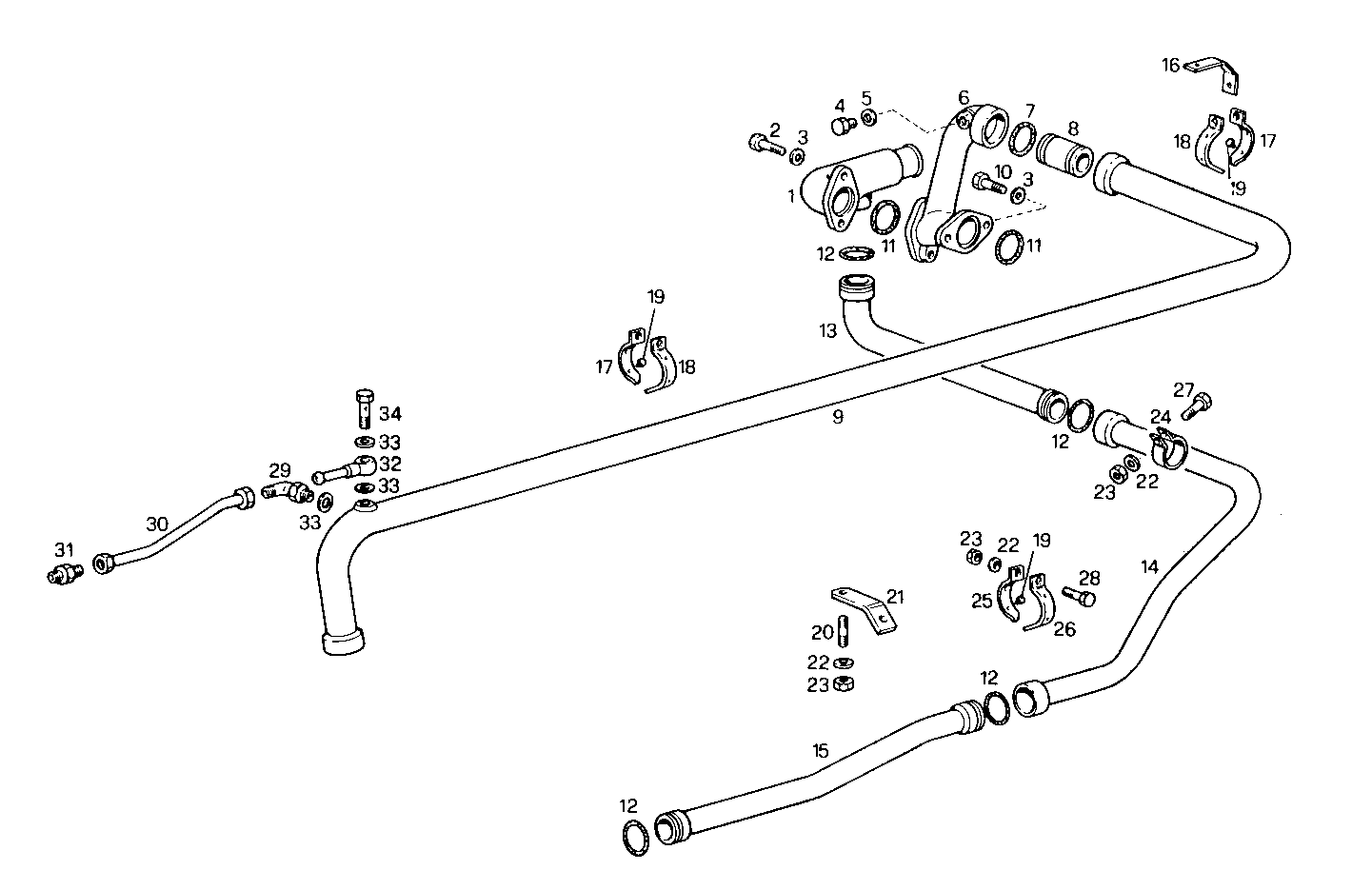

3210.067/05 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8113602 WATER PIPE
2 11112421 HEXAGON BOLT M12X30 MM
3 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
4 10300540 PLUG M12X1,5
5 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
6 8112884 WATER PIPE
7 17289681 O-RING Ø44 MM SP=3,53 MM
8 8112495 CONNECTOR SLEEVE
9 8112959 WATER PIPE
10 14311021 SCREW M12X1,75X30
11 14459481 O-RING 2,62X50,47
12 14463781 O-RING 3,53x32,92
13 8112942 WATER PIPE
14 8112944 WATER PIPE
15 8007672 WATER PIPE
16 8113565 RETAINER
17 8113298 CLAMP
18 8113299 CLAMP
19 1366290 RUBBER LUG
20 13516621 STUD M8X16 MM
21 8113568 RETAINER
22 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
23 17037931 HEXAGON NUT M8X1,25
24 8102910 CLIP
25 8113295 CLAMP Ø50 MM
26 8113296 CLAMP Ø50 MM
27 16043124 SCREW M8X14 MM
28 16043421 HEXAGON BOLT M8X20 MM
29 8112247 PIPE SOCKET
30 8007687 WATER PIPE
31 8111316 PIPE SOCKET
32 98434018 THREADED UNION
33 4858607 WASHER Ø12X17 MM SP=1,5 MM
34 4864082 BANJO BOLT M12X1,5X25 MM
