GE8361SRi25.06A955

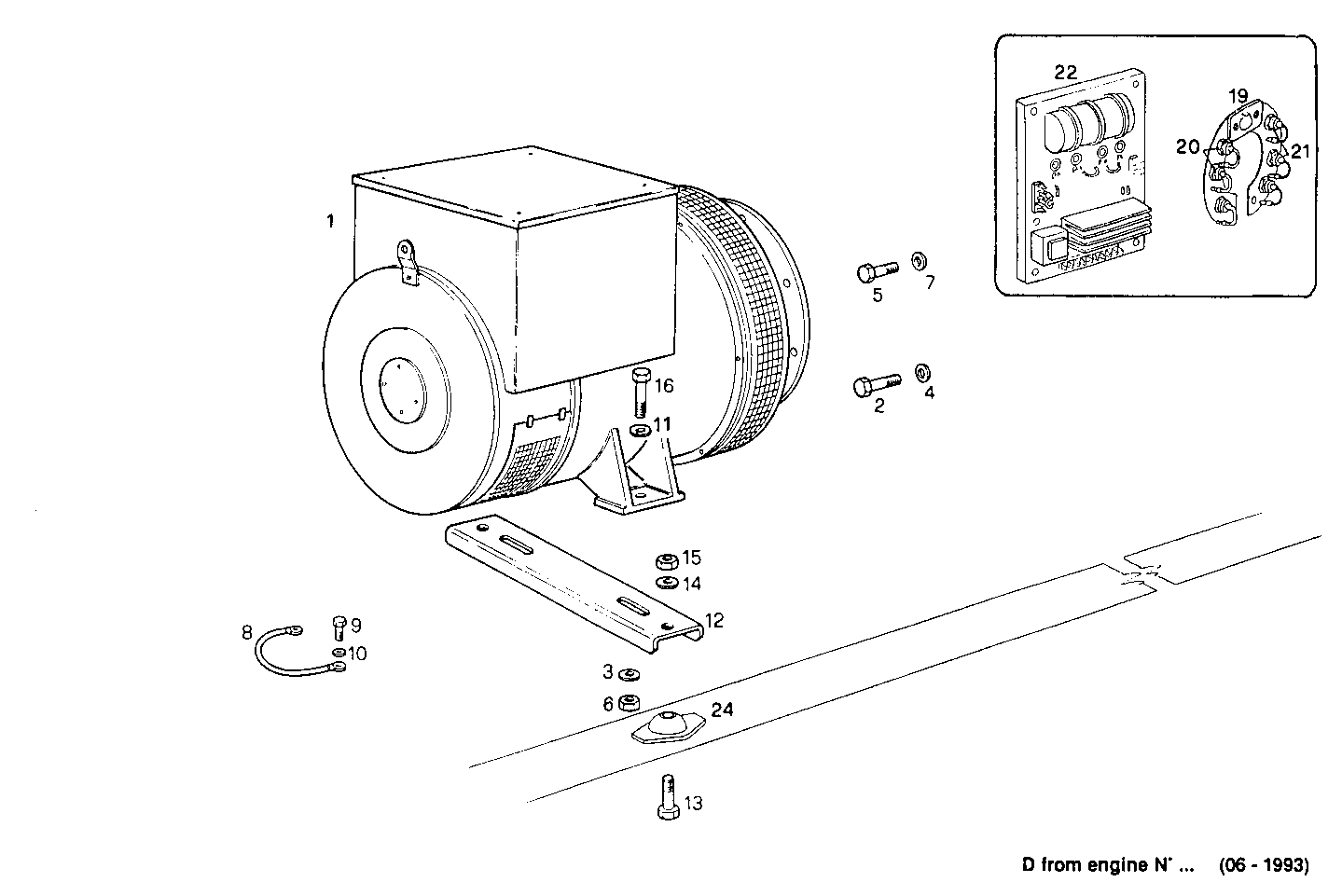

A37110043 SINGLE BEARING ELECTRIC MACHINE - LEROY

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8014318 ELECTRIC MACHINE LSA 461 S2 50-60HZ
2 11306921 SCREW M10X1,25X30
3 4279447 WASHER
4 17090174 SPRING WASHER Ø10X20 MM
5 15970521 HEXAGON BOLT M10X20 MM
6 17039321 NUT M20X2,5
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8104707 WIRE/CABLE
9 16605524 HEXAGON BOLT M8X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 17092774 WASHER Ø20X38X4,6 MM
12 8015167 SUPPORT
13 16620124 SCREW M24X3X80
14 17093174 WASHER Ø24X46X5,4 MM
15 17039721 HEXAGON NUT M24
16 16619824 SCREW
19 8092295 SUPPRESSOR
20 8092294 EL.MACHINE DIODE -
21 8092293 EL.MACHINE DIODE +
22 8092292 EL.MACHINE VOLTAGE REGUL.
24 4955094 RUBBER PAD
