GE8361SRi26.07R970

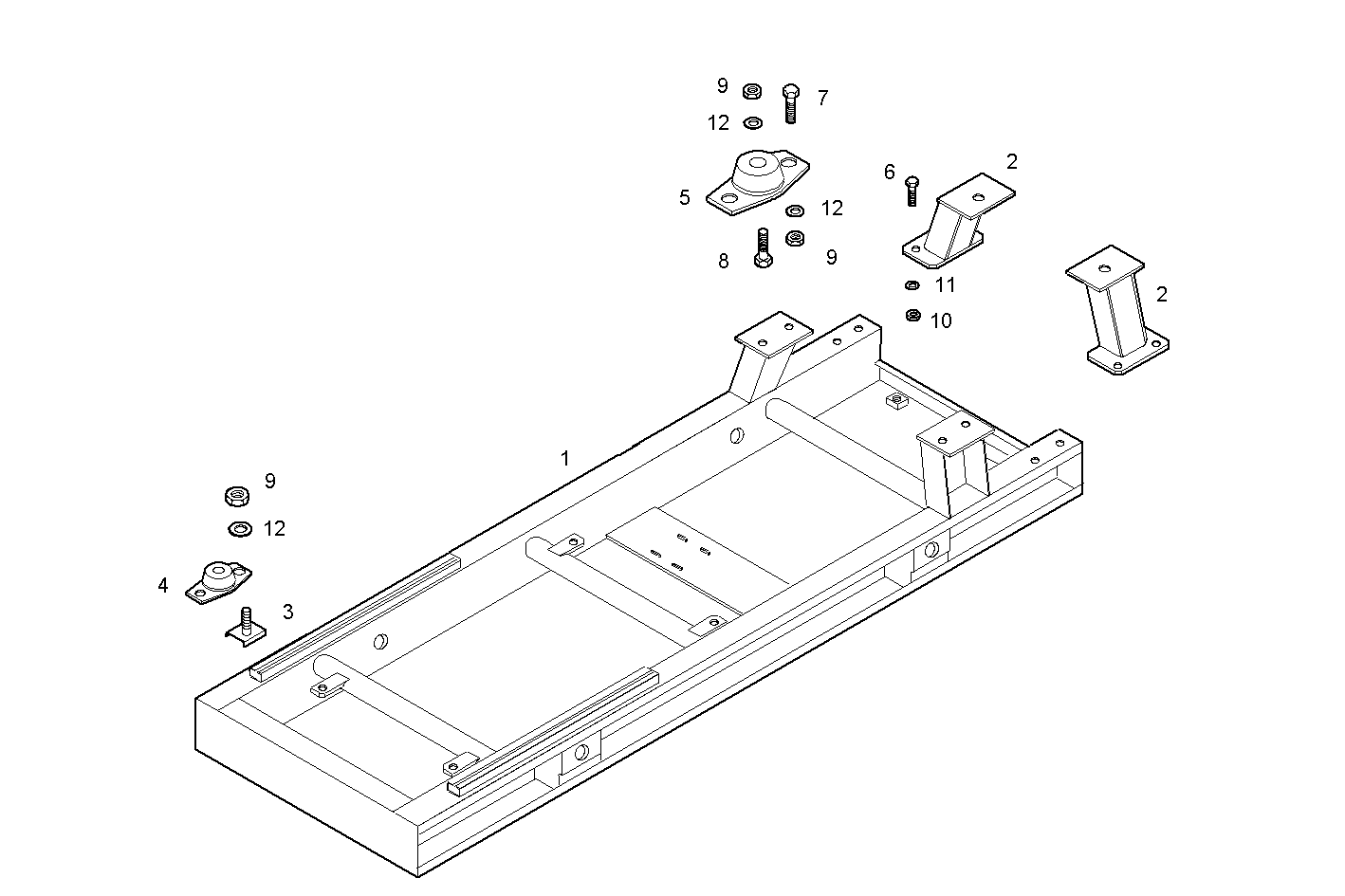

A36810007 SUBBASE FOR GENERATOR UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 8029447 | SUBBSAE-SUPPORT FRAME |
| 2 | 8016116 | RETAINER |
| 3 | 8015168 | SCREW |
| 4 | 4955094 | RUBBER PAD |
| 5 | 4927807 | RUBBER PAD |
| 6 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 7 | 16612324 | HEXAGON BOLT M14X35 MM |
| 8 | 16612924 | SCREW |
| 9 | 17038131 | HEXAGON NUT M10 |
| 10 | 17038721 | NUT M14X2 [from ...] |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 17091674 | WASHER Ø14X27X3,0 MM |
