GS8061SRi25.05A602

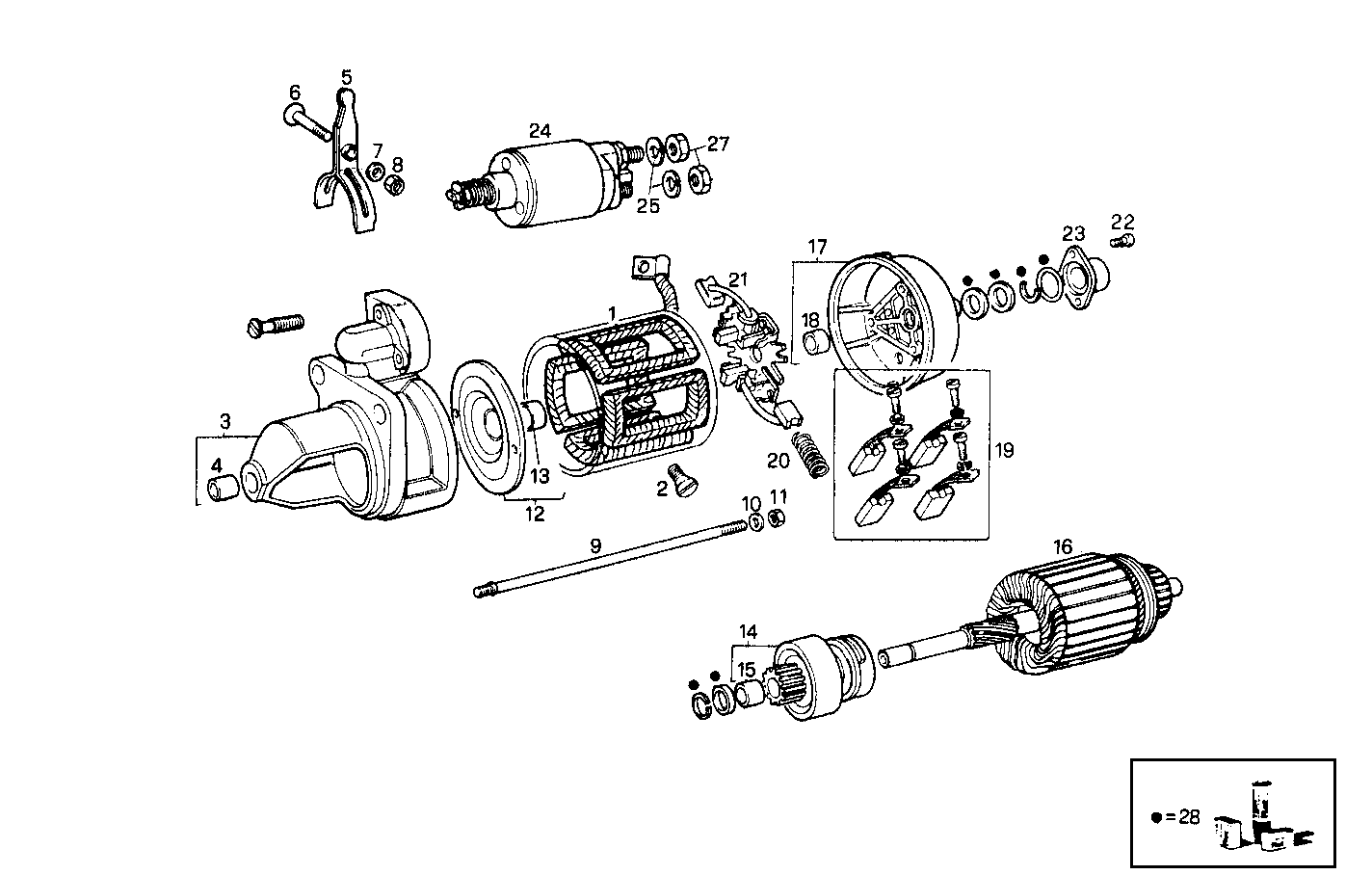

3630.015 STARTER MOTOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 8190148 | STARTER WINDING |
| 2 | 9920324 | SCREW |
| 3 | 42489591 | STARTER SUPPORT ASSY |
| 4 | 8190143 | BUSH ASSY |
| 5 | 8190144 | START.COUPL.LEVER |
| 6 | 79033669 | SCREW |
| 7 | 1107283 | SPRING WASHER Ø8,4X15 MM |
| 8 | 2905049 | NUT |
| 9 | 1308813 | TIE ROD |
| 10 | 2985194 | WASHER |
| 11 | 1112813 | HEXAGON NUT M10X70 MM |
| 12 | 1308810 | STARTER SUPPORT ASSY |
| 13 | 1307038 | BUSH ASSY |
| 14 | 79033659 | STARTER PINION ASSY |
| 15 | 79033670 | BUSH ASSY |
| 16 | 8122158 | STARTER ARMATURE |
| 17 | 79026096 | COVER ASSY |
| 18 | 79026097 | BUSH ASSY |
| 19 | 1308846 | KIT-STARTER |
| 20 | 1308848 | SPRING |
| 21 | 1308847 | STARTER SUPPORT |
| 22 | 1298783 | SCREW |
| 23 | 79026098 | COVER |
| 24 | 79033664 | STARTER SOLENOID |
| 25 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 26 | 1290797 | NUT |
| 27 | 1306937 | NUT |
| 28 | 79045355 | KIT-STARTER |
