N45MSTX21.50

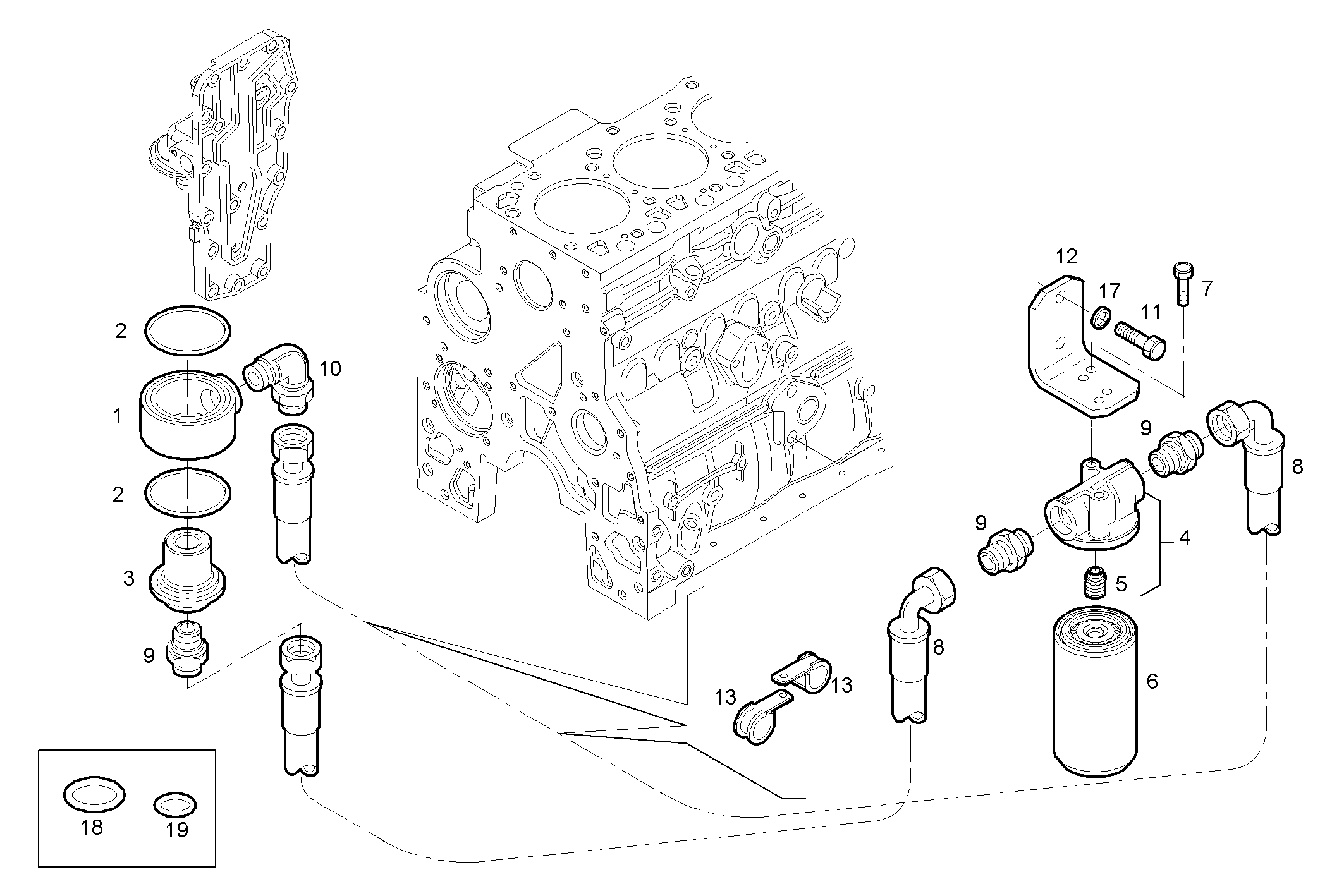

A17110503 OIL FILTERS - remote

Iveco/FPT OIL FILTERS

Item Part number Description
1 500389886 SUPPORT
2 17290181 O-RING Ø59,92 MM SP=3,53 MM
3 500396330 THREADED UNION
4 504039282 OIL FILTER SUPPORT ASSY
5 4893391 THREADED UNION
6 2992242 OIL FILTER CARTRIDGE
7 16586325 HEXAGON BOLT M8X20 MM
8 504008148 HOSE
9 8031468 THREADED UNION
10 8031805 ELBOW COUPLING
11 16609924 HEXAGON BOLT M12X30 MM (8.8)
12 504043539 RETAINER
13 504031832 FASTENING BRACKET
17 17091074 WASHER Ø12X24X2,8 MM
18 17278581 O-RING Ø18,77 MM SP=1,78 MM
19 17288381 O-RING Ø20,22X3,53 MM
