PPVZ2883X*Q400

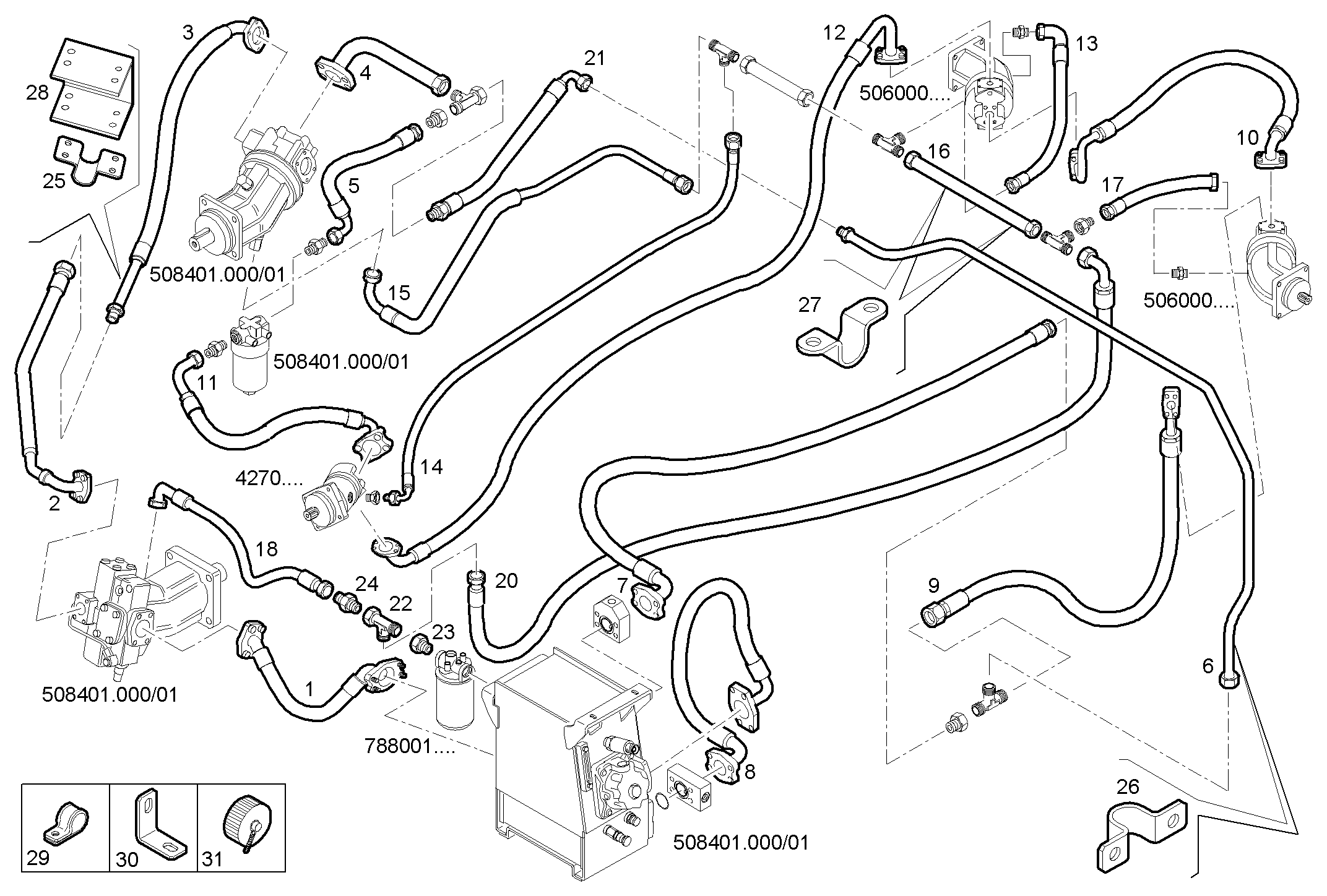

508401.000/02 HYDRAULIC SYSTEM
| Item |
Part number |
Description |
|
1 |
504075790 |
HOSE |
|
2 |
504070910 |
HOSE |
|
3 |
504070911 |
HOSE |
|
4 |
504091086 |
HOSE |
|
5 |
504070913 |
HOSE |
|
6 |
504070914 |
HOSE |
|
7 |
504075793 |
HOSE |
|
8 |
504075794 |
HOSE |
|
9 |
504070917 |
HOSE |
|
10 |
504070918 |
HOSE |
|
11 |
504070919 |
HOSE |
|
12 |
504070921 |
HOSE |
|
13 |
504070922 |
HOSE |
|
14 |
504070923 |
HOSE |
|
15 |
504070924 |
HOSE |
|
16 |
504070925 |
HOSE |
|
17 |
504070926 |
HOSE |
|
18 |
504075795 |
HOSE |
|
20 |
504075796 |
HOSE |
|
21 |
504077457 |
HOSE |
|
22 |
16581911 |
T-COUPLING |
|
23 |
504077408 |
THREADED UNION |
|
24 |
504077409 |
THREADED UNION |
|
25 |
504064878 |
RETAINER |
|
26 |
504065599 |
RETAINER |
|
27 |
504065992 |
RETAINER |
|
28 |
504083269 |
RETAINER |
|
29 |
504131066 |
FASTENING BRACKET |
|
30 |
504063139 |
SUPPORT |
|
31 |
504081979 |
PLUG |
