PPVZ2883X*Q440

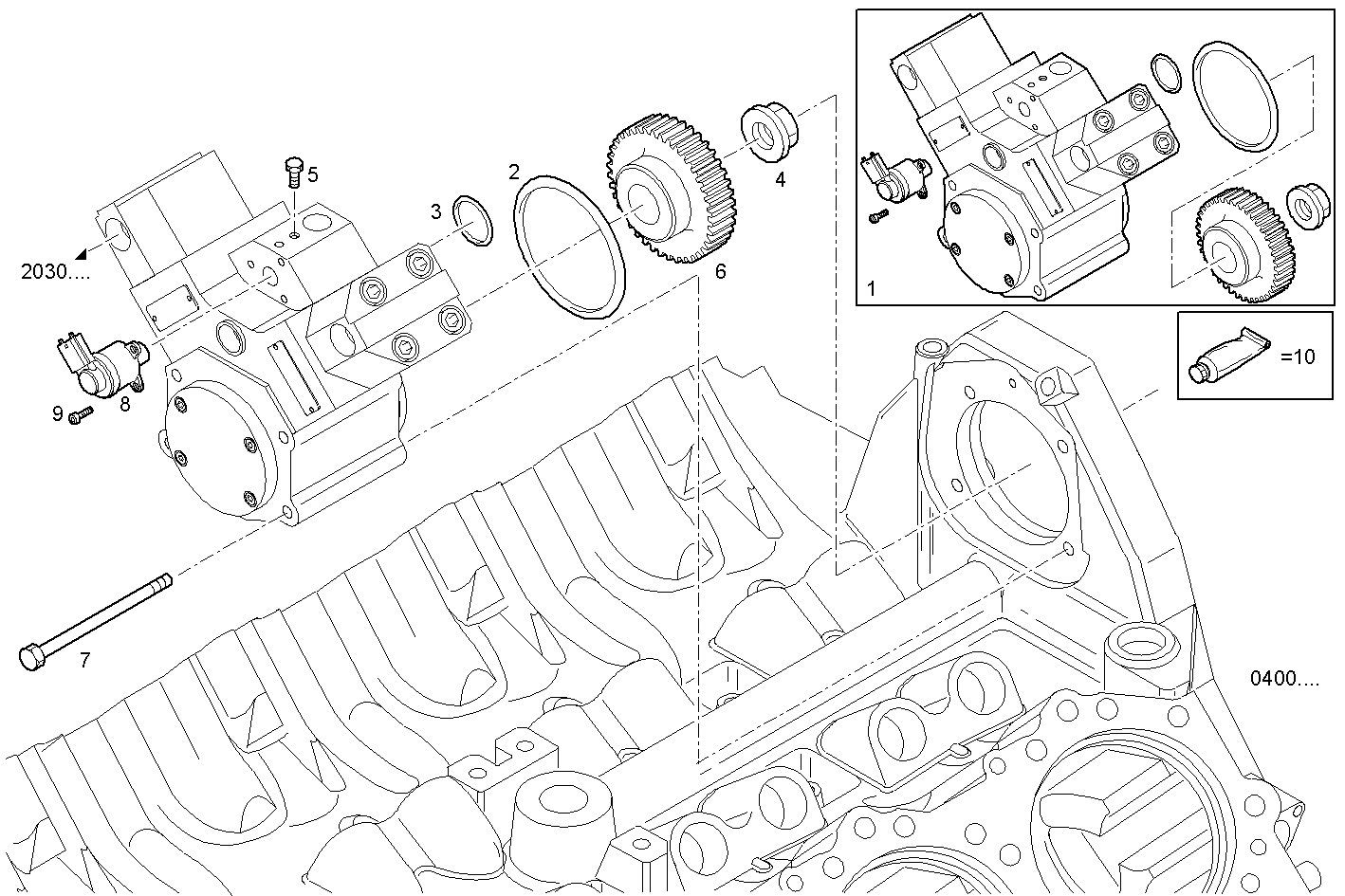

2010.036 FUEL PUMP - high pressure

Iveco/FPT FUEL PUMP

Item Part number Description
1 504195329 HIGH PRESSURE PUMP ASSY
2 504060294 SEAL GASKET
3 504060293 SEAL GASKET
4 500392673 HEXAGON NUT M24X1,5
5 16592225 HEXAGON BOLT M8X55 MM
6 504036032 GEAR
7 16677435 HEXAGON BOLT M10X1,5X130 MM
8 8094794 GOVERNOR/REGULATOR
9 8094795 SOCKET-HEAD SCREW
10 2992504 ADHESIVE/STICKER LOCTITE
