PU8281SI10.00A103

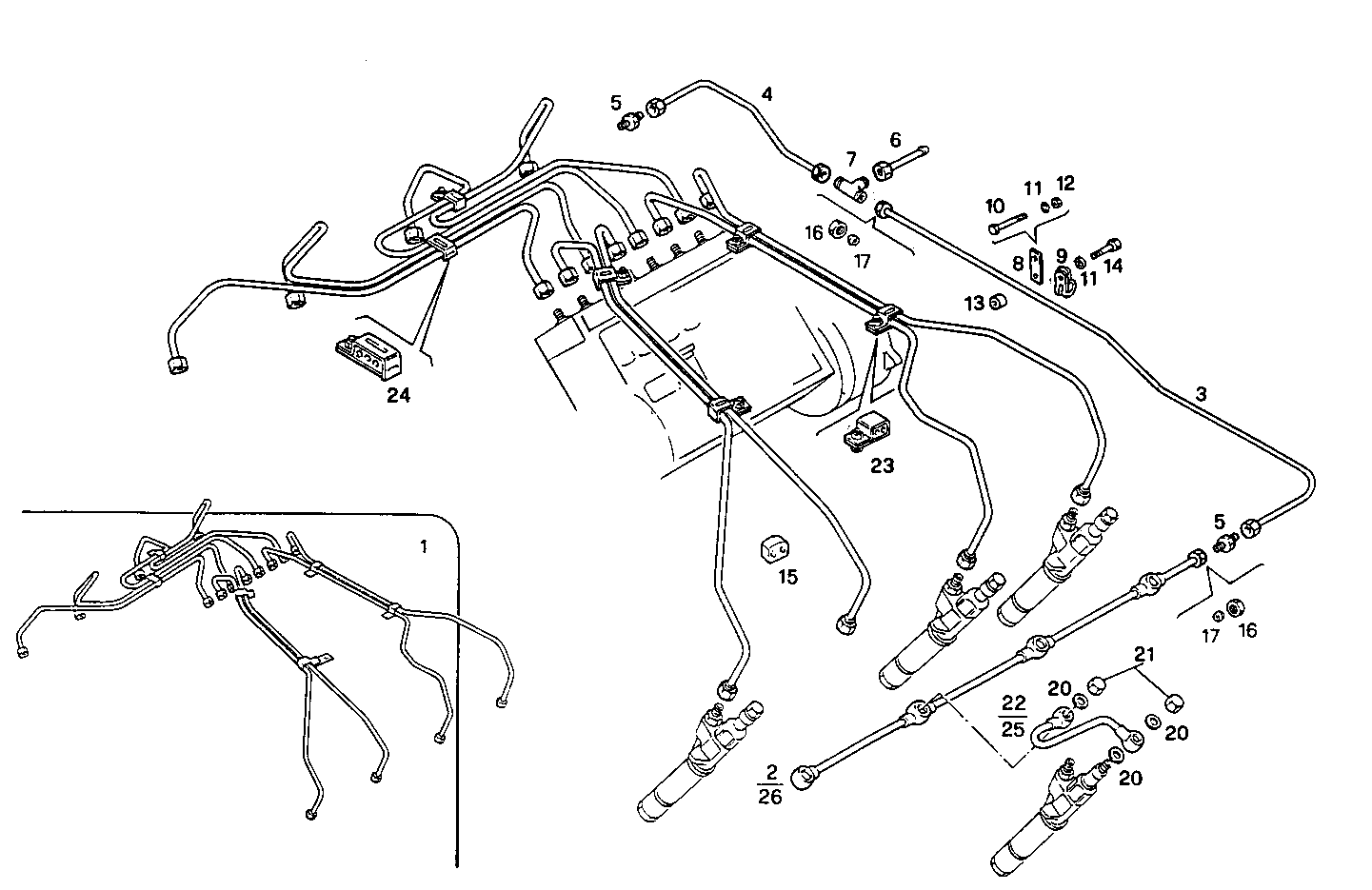

2020.030 INJECTION PIPES

Iveco/FPT INJECTION PIPES

Item Part number Description
1 4807620 INJECTION LINE SET ASSY ARMCO
2 4821992 INJECTION LINE [up to 11-94]
3 4821994 INJECTION LINE [up to 11-94]
4 4821995 INJECTION LINE [up to 11-94]
5 4693018 THREADED UNION
6 4706182 INJECTION LINE
7 4677909 T-COUPLING
8 4840311 RETAINER
9 4656139 FASTENING BRACKET
10 16043521 SCREW M8X22
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 17037931 HEXAGON NUT M8X1,25
13 13605811 SPACER SP=1,5 MM
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 4696015 RUBBER PAD
16 4677910 NUT
17 4677911 WASHER
20 98474303 WASHER Ø8X14 MM SP=2,3 MM
21 11902017 LOCK PLUG M8
22 4706186 INJECTION LINE [up to ...]
23 4806611 FASTENING BRACKET
24 4806612 FASTENING BRACKET
25 98488844 INJECTION LINE [from ...]
26 98488848 INJECTION LINE [from 12-94]
