7450E00.00

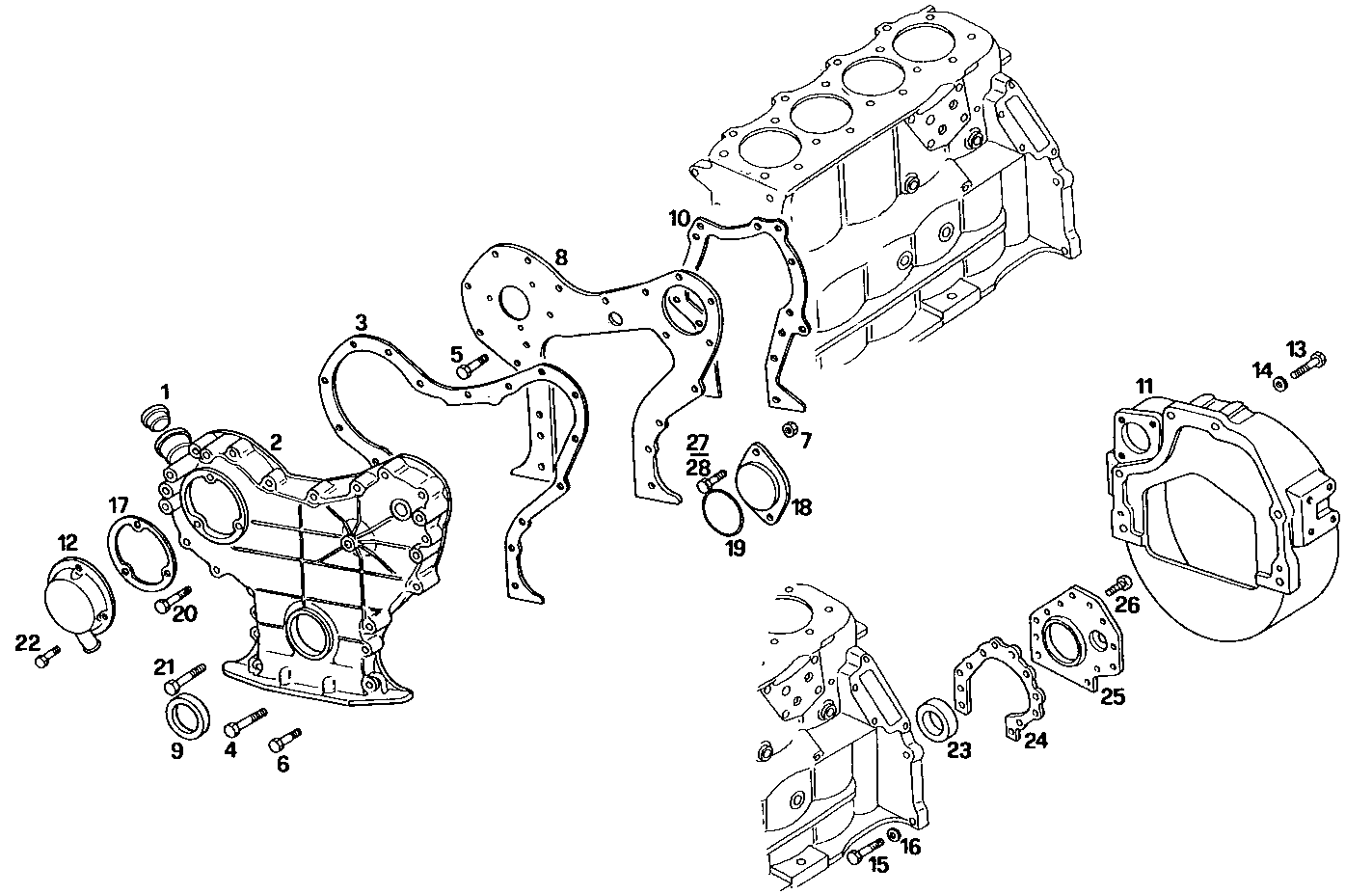

0430.195 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 87761857 PLUG
2 87800905 COVER
3 83959876 GASKET
4 81867931 SCREW
5 83958244 SCREW
6 81876948 SCREW
7 81862931 NUT
8 87800904 PLATE
9 87800696 OIL RETAINER
10 83959396 GASKET
11 8012600 FLYWHEEL HOUSING
12 87800915 COVER
13 8014046 SCREW
14 17102134 WASHER Ø20X30,6X4,5 MM
15 16614924 SCREW M16X55
16 17092174 SPRING WASHER Ø16X32X3,4
17 87800916 GASKET
18 81803219 COVER
19 80510137 O-RING
20 81867943 SCREW
21 82854871 SCREW
22 82934464 SCREW
23 83955247 WASHER
24 87801610 GASKET
25 87801619 PLATE
26 81876604 SCREW
27 81868845 SCREW
28 81876950 SCREW
