7450E00.00

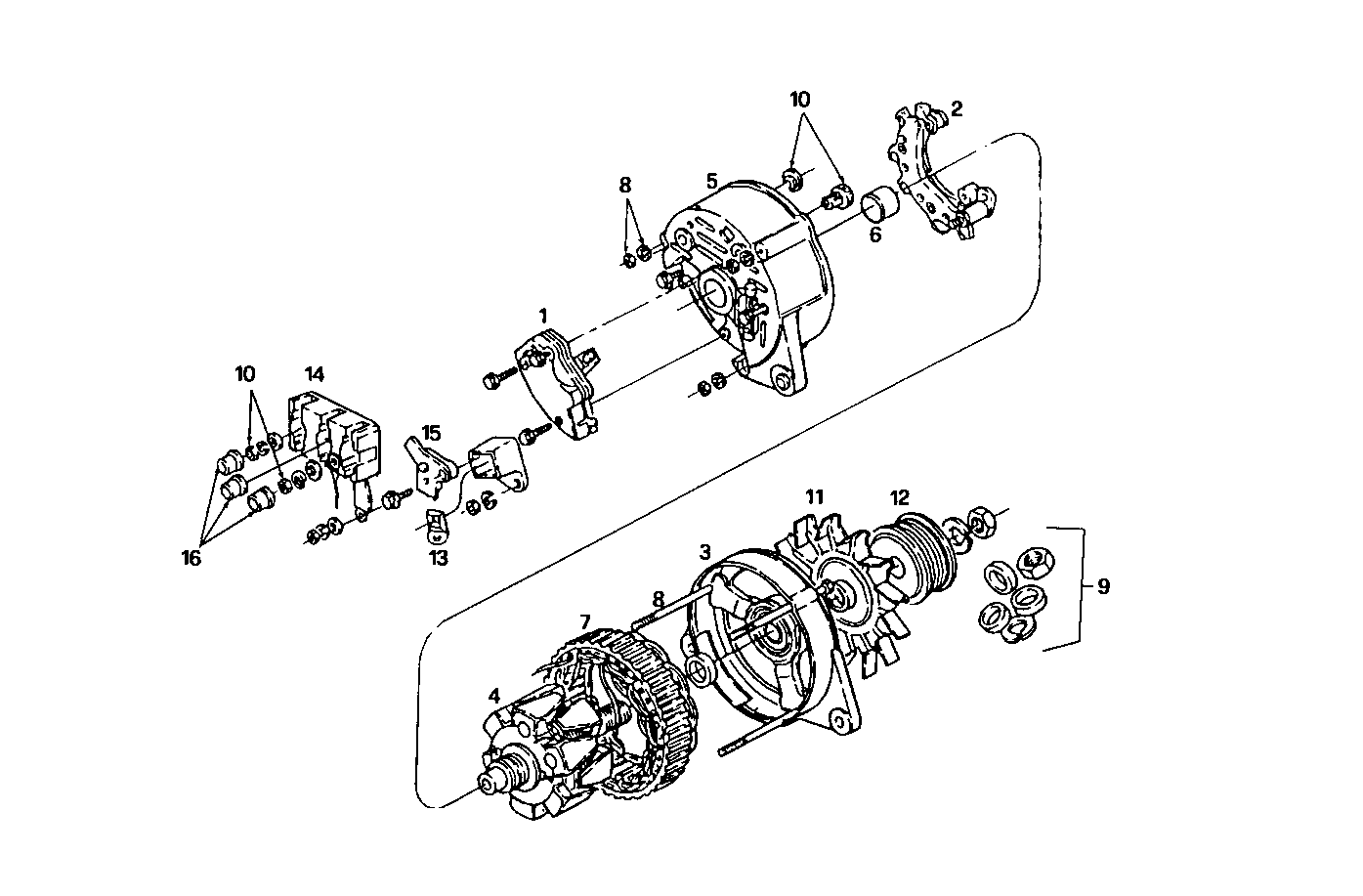

4030.048 GENERATOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 82851898 | VOLTAGE REGULATOR |
| 2 | 83999825 | RECTIFIER |
| 3 | 83999866 | SUPPORT |
| 4 | 83961487 | ROTOR |
| 5 | 83961478 | SUPPORT |
| 6 | 83961479 | DRIVE BEARING |
| 7 | 83981541 | STATOR |
| 8 | 83961480 | KIT-GENERATOR |
| 9 | 83961481 | KIT-GENERATOR |
| 10 | 83999870 | KIT-GENERATOR |
| 11 | 83961483 | GENERATOR FAN |
| 12 | 83999816 | PULLEY |
| 13 | 83981549 | KIT-GENERATOR |
| 14 | 83999875 | RETAINER |
| 15 | 83999819 | INDICATOR |
| 16 | 81864706 | CAP |
