7450G86.05A502

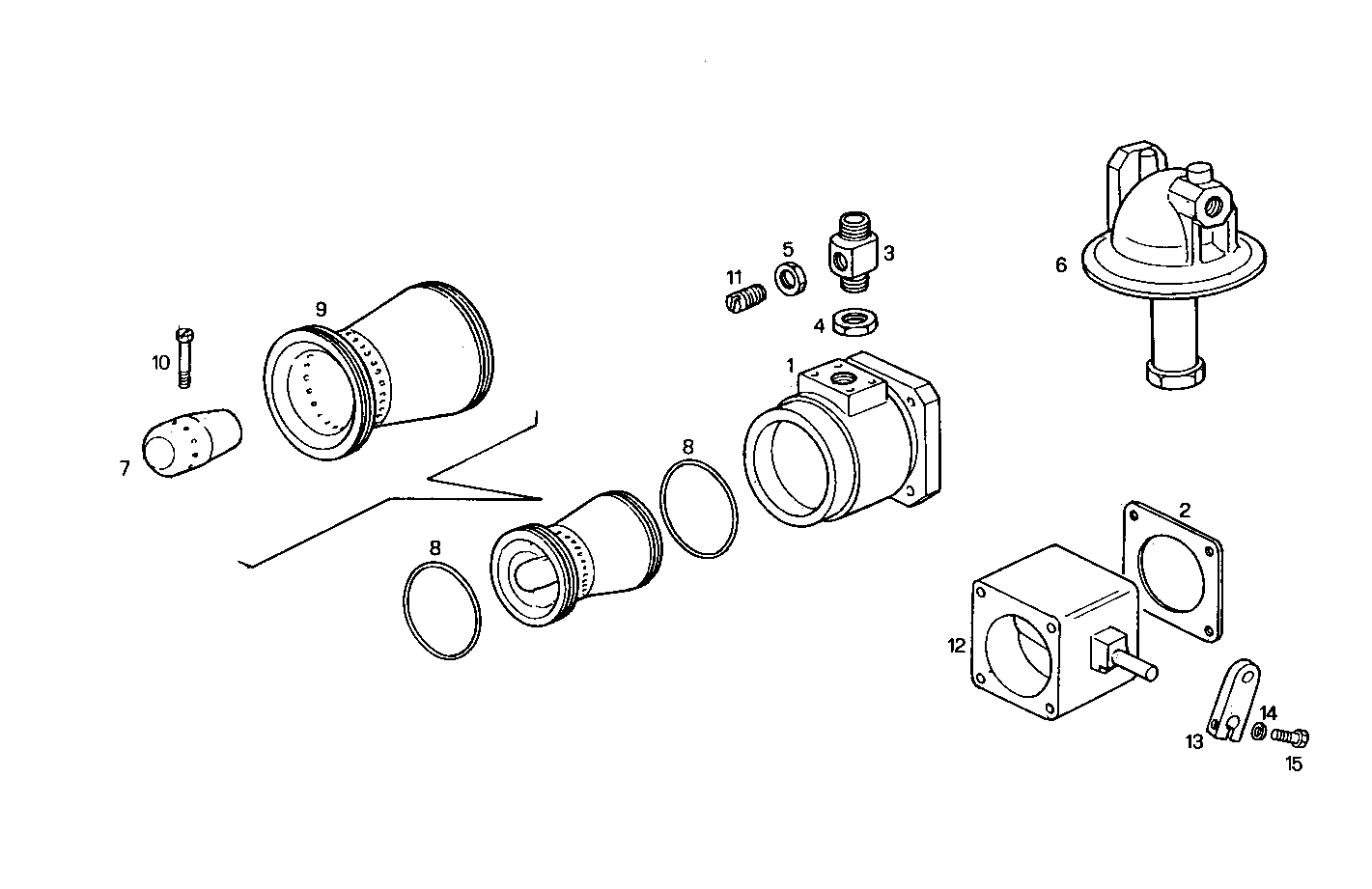

1600.010 POWERING
| Item | Part number | Description |
|---|---|---|
| 1 | 8024785 | GAS ENGINE CARBURETTOR |
| 2 | 8024816 | GASKET |
| 3 | 8024788 | VALVE HOUSING |
| 4 | 8024802 | NUT |
| 5 | 8024799 | NUT |
| 6 | 8024779 | GAS PRESSURE REDUCER |
| 7 | 8024787 | CONE |
| 8 | 17289781 | O-RING Ø47,22 MM SP=3,55 MM |
| 9 | 8024786 | VENTURI HOUSING |
| 10 | 17021670 | SCREW |
| 11 | 8024790 | SCREW |
| 12 | 8024806 | THROTTLE |
| 13 | 8024815 | LEVER |
| 14 | 17494734 | WASHER Ø6X11,8X1,6 MM |
| 15 | 16603970 | SCREW |
