7450i10.05

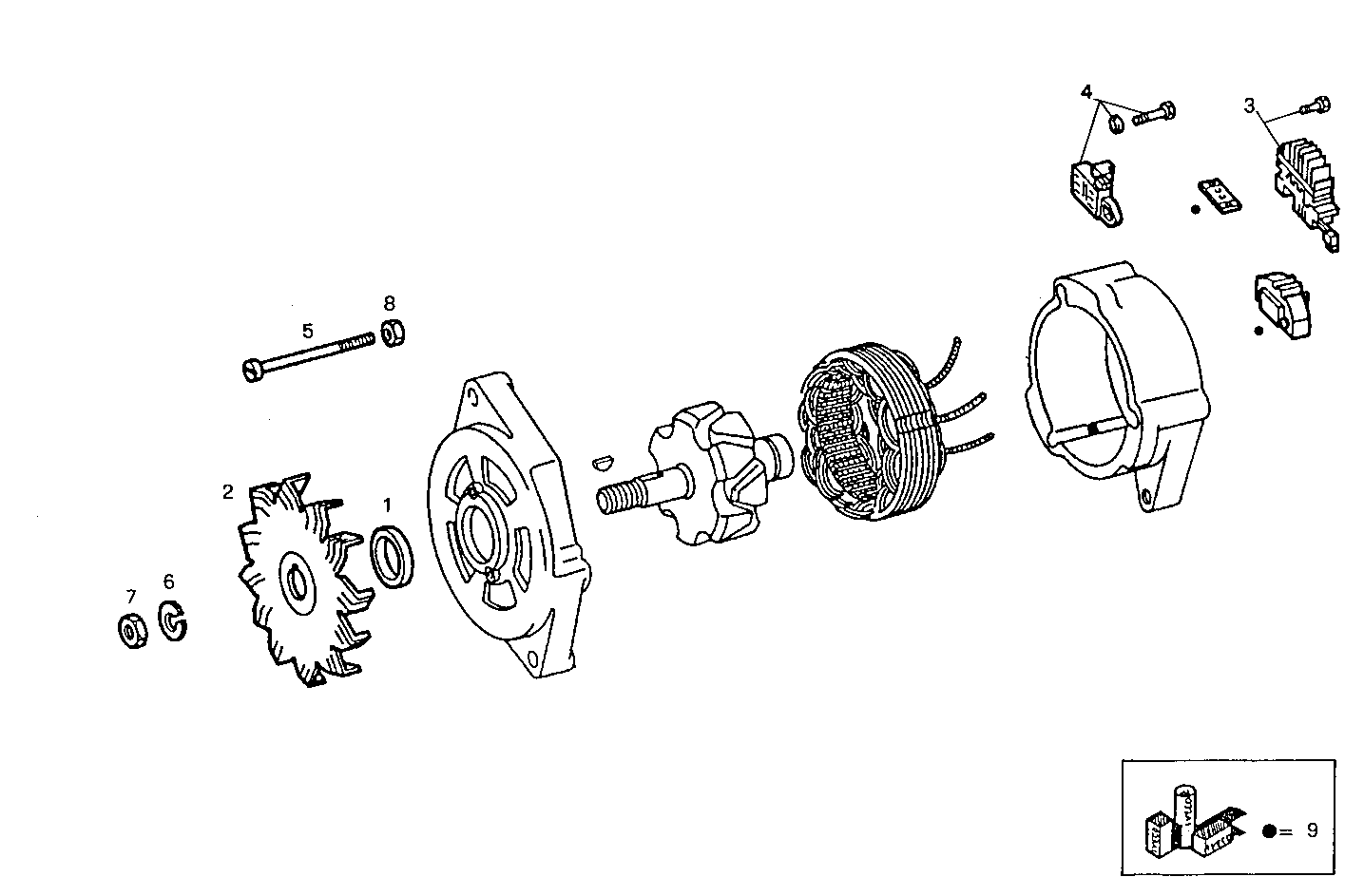

T1405002 SELF-REGULATED ALTERNATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 4479391 | SPACING BAR |
| 2 | 4717026 | GENERATOR FAN MARELLI |
| 3 | 9940293 | RECTIFIER |
| 4 | 93193292 | VOLTAGE REGULATOR MARELLI - 12V |
| 5 | 11030321 | HEXAGON BOLT M6X80 MM |
| 6 | 11200174 | WASHER Ø14X32 MM |
| 7 | 12164021 | HEXAGON NUT M14X1,5 |
| 8 | 12574221 | HEXAGON NUT M6 |
| 9 | 79083594 | KIT-GENERATOR |
