7450Si15.05

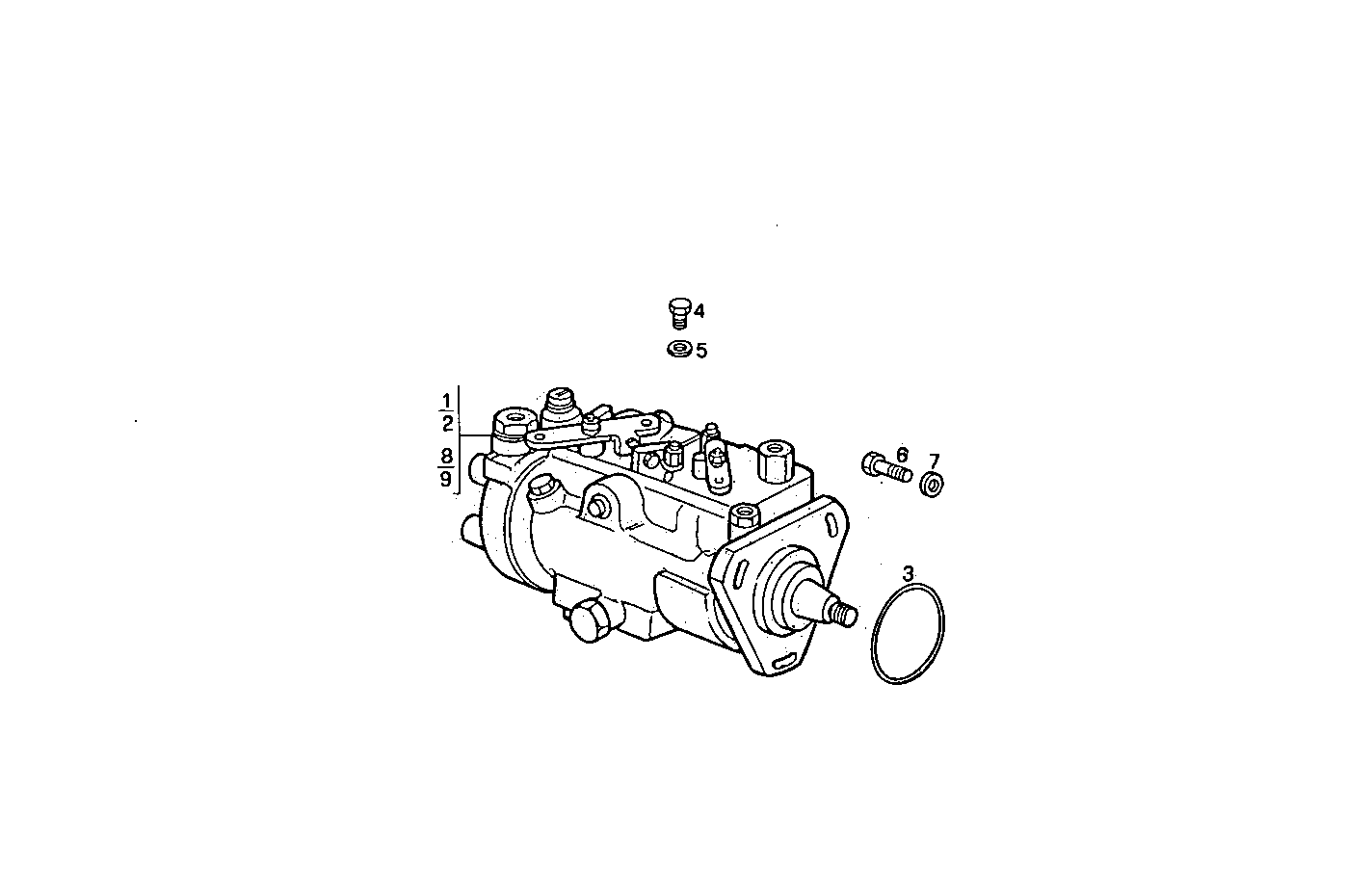

1400.169 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8015626 | DISTRIB.INJ.PUMP ASSY - 1800 RPM [from ...] |
| 2 | 8015628 | DISTRIB.INJ.PUMP ASSY - 1500 RPM [from ...] |
| 3 | 83416201 | O-RING |
| 4 | 8016061 | PLUG |
| 5 | 4858606 | GASKET Ø10X14X1 MM |
| 6 | 82855493 | SCREW |
| 7 | 83925582 | WASHER |
| 8 | 8015400 | DISTRIB.INJ.PUMP ASSY - 1800 RPM [up to ...] |
| 9 | 8015399 | DISTRIB.INJ.PUMP ASSY - 1500 RPM [up to ...] |
