7450Si15.05

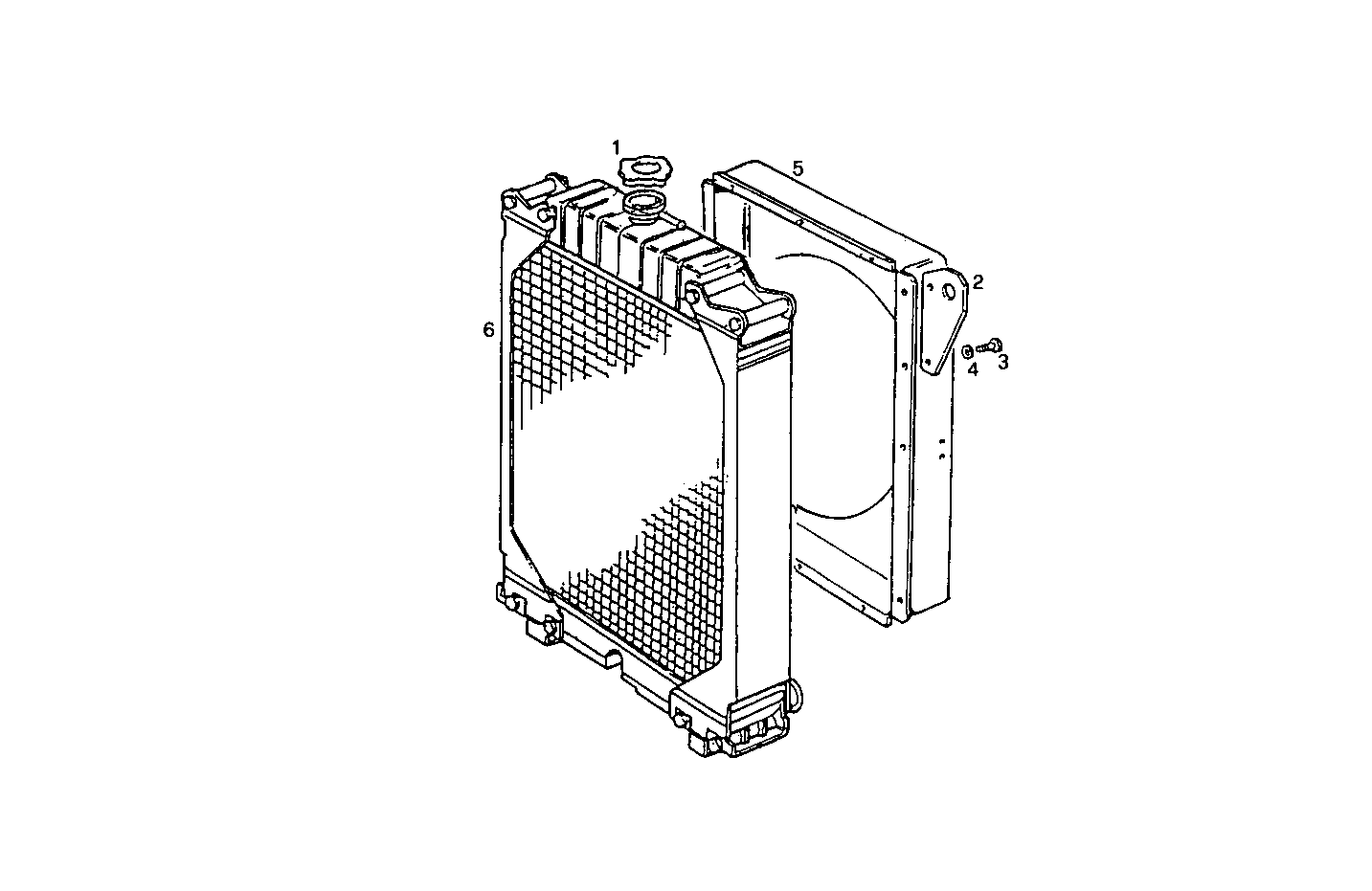

T2201008 RADIATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 4935488 | RADIATOR PLUG |
| 2 | 8104588 | PLATE |
| 3 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 4 | 17088971 | SPRING WASHER Ø6X18 MM |
| 5 | 8009076 | AIR HOOD |
| 6 | 8018549 | WATER RADIATOR |
