7450Si16.05

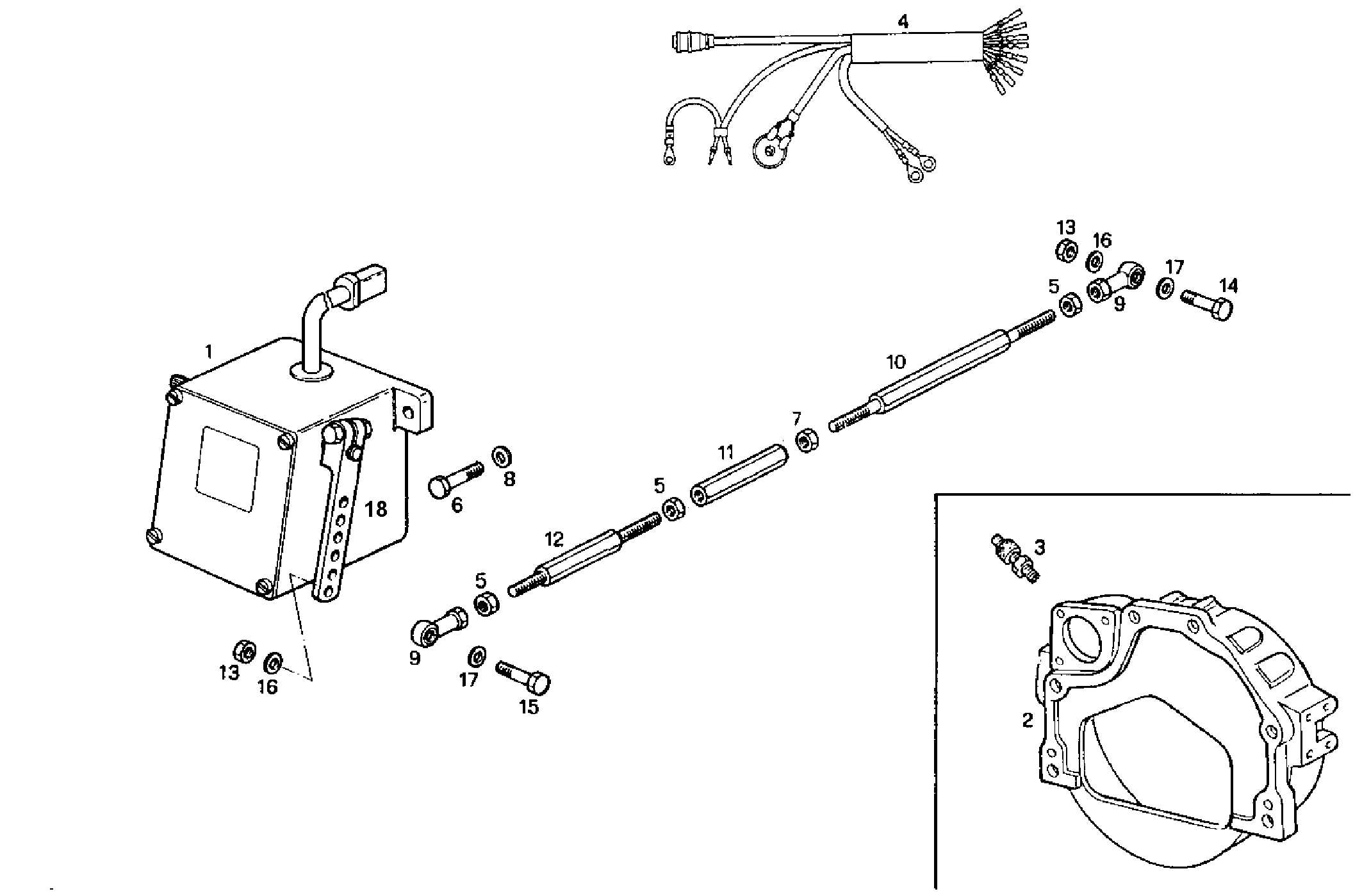

A28100001 ELECTRONIC GOVERNOR G.A.C. - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8018971 | ENGINE ACTUATOR ASSY |
| 2 | 8017137 | FLYWHEEL HOUSING |
| 3 | 8018673 | PICK-UP |
| 4 | 8018968 | ENGINE HARNESS |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 7 | 16981731 | NUT M6 |
| 8 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 9 | 4934541 | BRACE/STRUT |
| 10 | 8105563 | TIE ROD |
| 11 | 17720114 | TIE ROD |
| 12 | 4936705 | TIE ROD L=70 MM |
| 13 | 17152721 | NUT M6 |
| 14 | 16603824 | SCREW M6X25 |
| 15 | 16603924 | HEXAGON BOLT M6X30 MM |
| 16 | 17094714 | WASHER Ø6,4X12 MM |
| 17 | 17088474 | WASHER Ø6X12 MM |
| 18 | 8031536 | LEVER |
