7450SU00.00

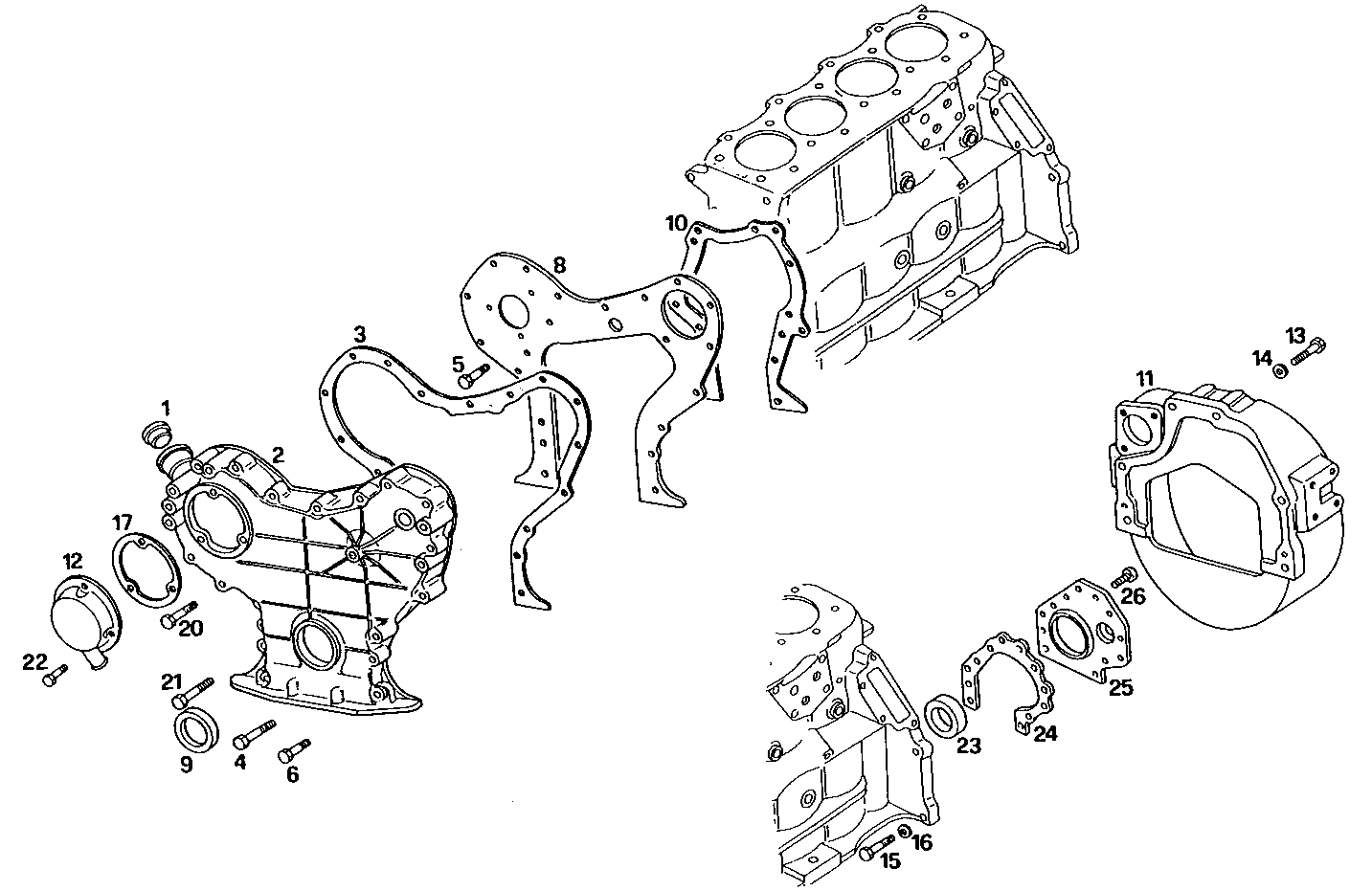

0430.197 INSERTED BOX ASSEM.
| Item |
Part number |
Description |
|
1 |
87761857 |
PLUG |
|
2 |
87800905 |
COVER |
|
3 |
83959876 |
GASKET |
|
4 |
81867931 |
SCREW |
|
5 |
83958244 |
SCREW |
|
6 |
81876948 |
SCREW |
|
8 |
87800904 |
PLATE |
|
9 |
87800696 |
OIL RETAINER |
|
10 |
83959396 |
GASKET |
|
11 |
8012600 |
FLYWHEEL HOUSING |
|
12 |
87800915 |
COVER |
|
13 |
8014046 |
SCREW |
|
14 |
17102134 |
WASHER Ø20X30,6X4,5 MM |
|
15 |
16614924 |
SCREW M16X55 |
|
16 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
17 |
87800916 |
GASKET |
|
20 |
81867943 |
SCREW |
|
21 |
82854871 |
SCREW |
|
22 |
82934464 |
SCREW |
|
23 |
83955247 |
WASHER |
|
24 |
87801610 |
GASKET |
|
25 |
87801619 |
PLATE |
|
26 |
81876604 |
SCREW |
