7450U00.00

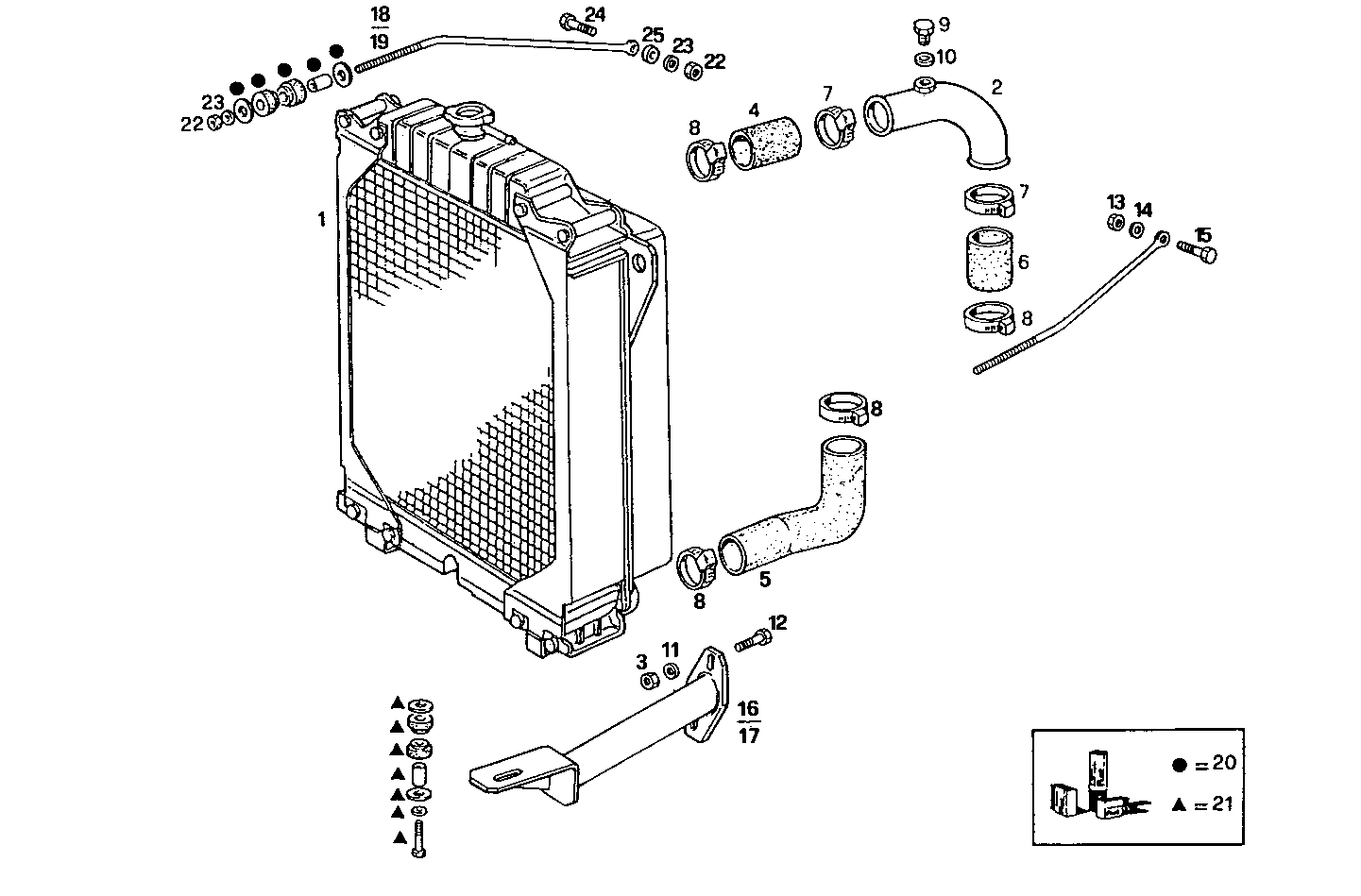

A22010061 RADIATOR FOR SETTING TILL MAX POWER
| Item | Part number | Description |
|---|---|---|
| 1 | 8009112 | WATER RADIATOR ASSY |
| 2 | 8026697 | WATER PIPE |
| 4 | 98421385 | WATER HOSE |
| 5 | 8026976 | RUBBER SLEEVE |
| 6 | 98447313 | WATER HOSE Ø45 MM/Ø38 MM |
| 16 | 8026929 | SUPPORT LEFT |
| 17 | 8026930 | SUPPORT RIGHT |
| 18 | 8026999 | TIE ROD LEFT |
| 19 | 8027000 | TIE ROD RIGHT |
| 20 | 8090413 | KIT-RADIATOR A.S. COMPLETE |
| 21 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 24 | 8027021 | SCREW M8X1,25X25 |
| 25 | 8019966 | SPACING BAR |
