7675i10.05

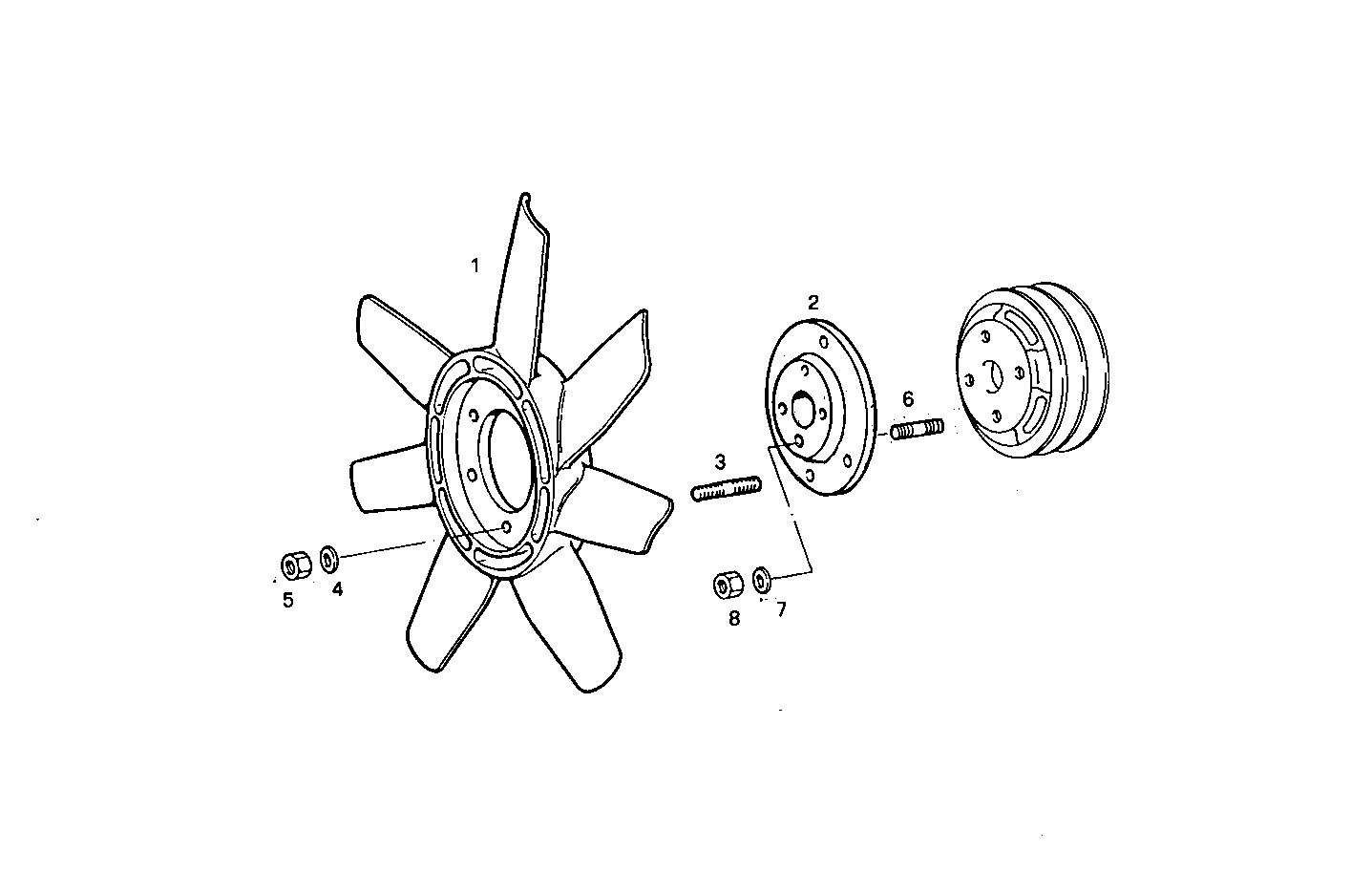

A08000034 PULLER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 4698188 | BLOWER Ø500 MM |
| 2 | 8016682 | SPACING BAR |
| 3 | 16731324 | STUD M10X30 MM |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 17038121 | HEXAGON NUT M10 |
| 6 | 8014223 | STUD |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
