7675Si10.05

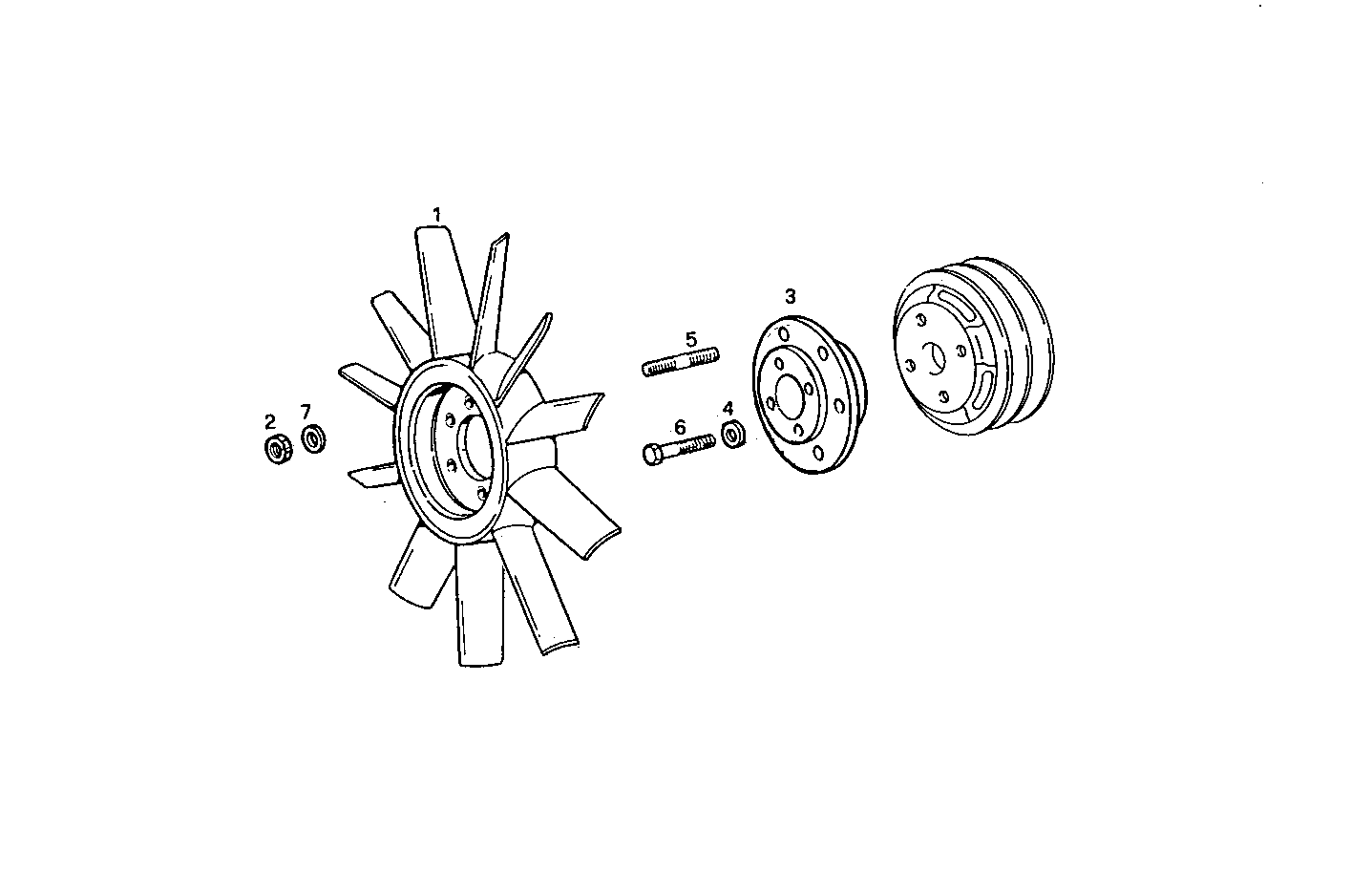

A08000042 PULLER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 4629725 | BLOWER Ø560 MM |
| 2 | 17038121 | HEXAGON NUT M10 |
| 3 | 8014042 | SPACING BAR |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16731524 | STUD M8X40 MM |
| 6 | 8014317 | SCREW |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
