7675Si10.05

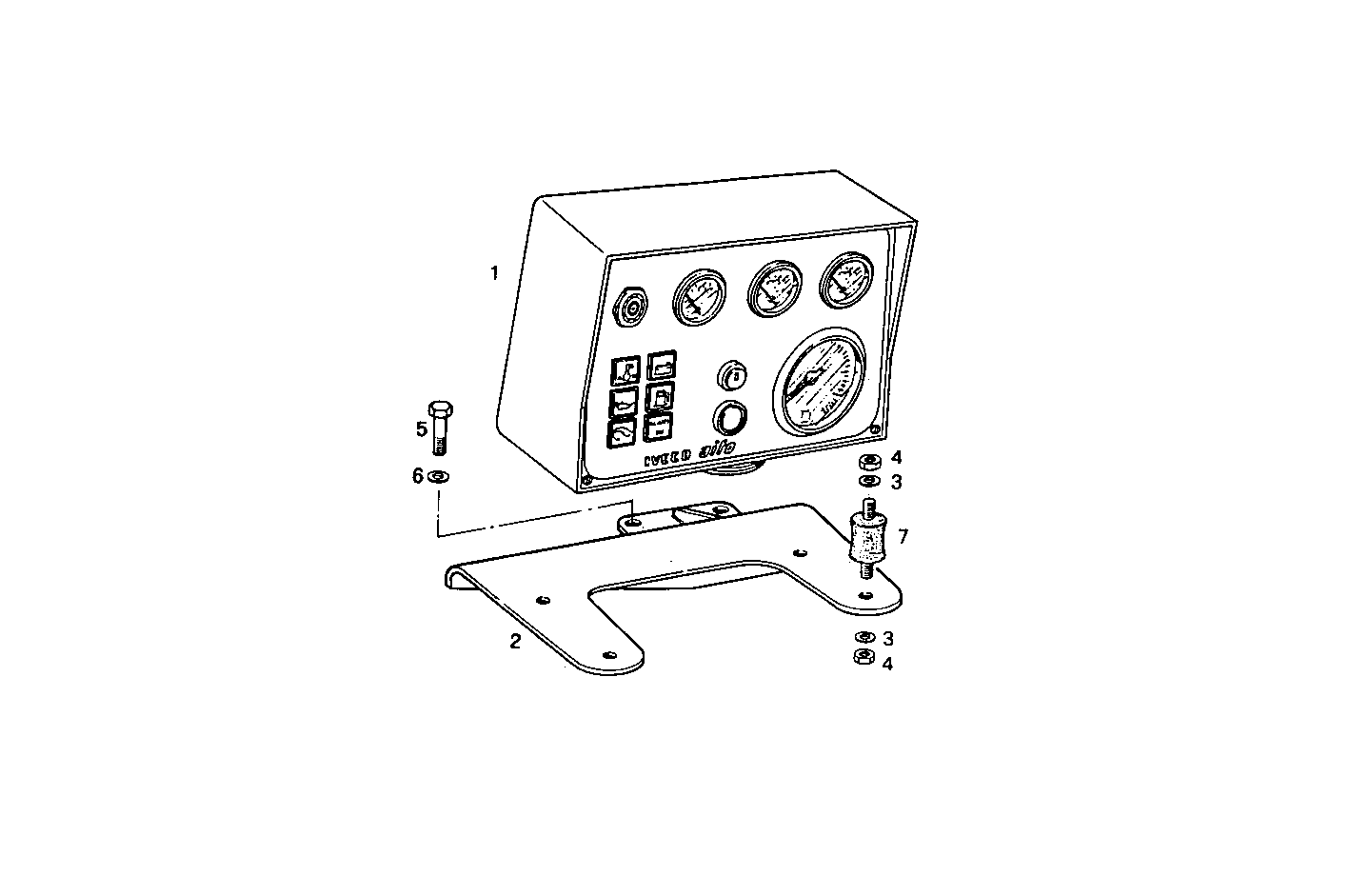

A38670008 ELECTRIC INSTRUMENTS PANEL - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8016476 | INSTRUMENTS BOARD ASSY |
| 2 | 8016228 | RETAINER |
| 3 | 17088474 | WASHER Ø6X12 MM |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 8014110 | SCREW |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 4910949 | RUBBER LUG |
