7675Si10.05A800

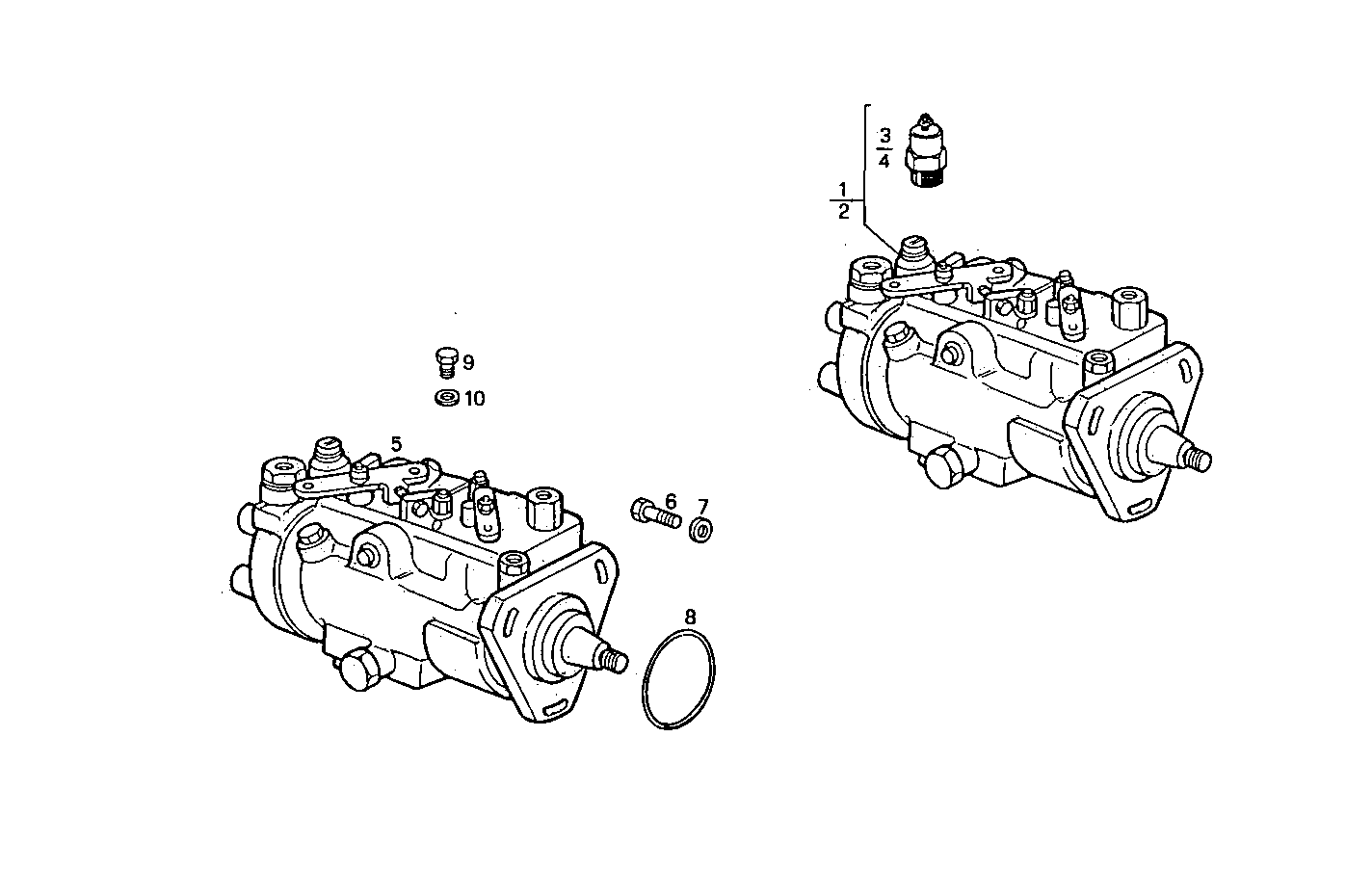

1400.106 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8014376 | DISTRIB.INJ.PUMP ASSY 12V |
| 2 | 8015744 | DISTRIB.INJ.PUMP ASSY 24V |
| 3 | 9986316 | ELECTROVALVE 12V opt. |
| 4 | 8105437 | ELECTROVALVE 24V opt. |
| 5 | 8015745 | DISTRIB.INJ.PUMP |
| 6 | 82855493 | SCREW |
| 7 | 83925582 | WASHER |
| 8 | 83416201 | O-RING |
| 9 | 8016061 | PLUG |
| 10 | 4858606 | GASKET Ø10X14X1 MM |
