7675SU00.00

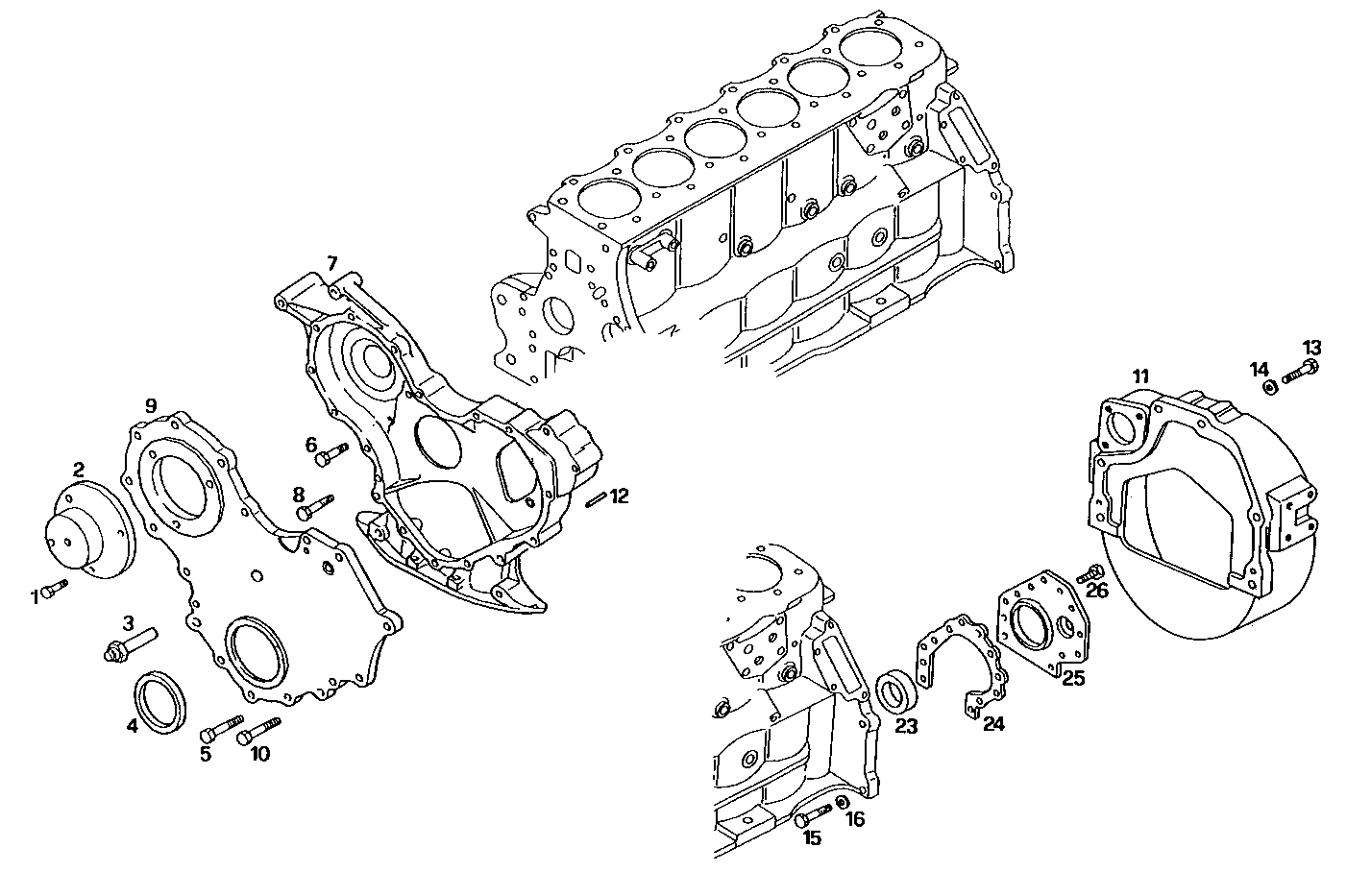

0430.198 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 83995273 | SCREW |
| 2 | 87801961 | COVER |
| 3 | 81875775 | VALVE |
| 4 | 87800696 | OIL RETAINER |
| 5 | 81868740 | SCREW |
| 6 | 83958244 | SCREW |
| 7 | 87801141 | SUPPORT |
| 8 | 81876948 | SCREW |
| 9 | 87801142 | COVER |
| 10 | 82850968 | SCREW |
| 11 | 8012600 | FLYWHEEL HOUSING |
| 12 | 81808472 | DOWEL PIN |
| 13 | 8014046 | SCREW |
| 14 | 17102134 | WASHER Ø20X30,6X4,5 MM |
| 15 | 16614924 | SCREW M16X55 |
| 16 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 23 | 83955247 | WASHER |
| 24 | 87801610 | GASKET |
| 25 | 87801619 | PLATE |
| 26 | 81876604 | SCREW |
